10. OPERATION (continued)
3. If an overlong torch side cable is used reluctantly, wind it according to following figure of
“Good example”.
Bad example Good example
Do not wind the excess part of cable in the
same direction.
Refer to the figure below “winding method of
excess cable”, and make two windings in opposite
direction each other and pile up one on another.

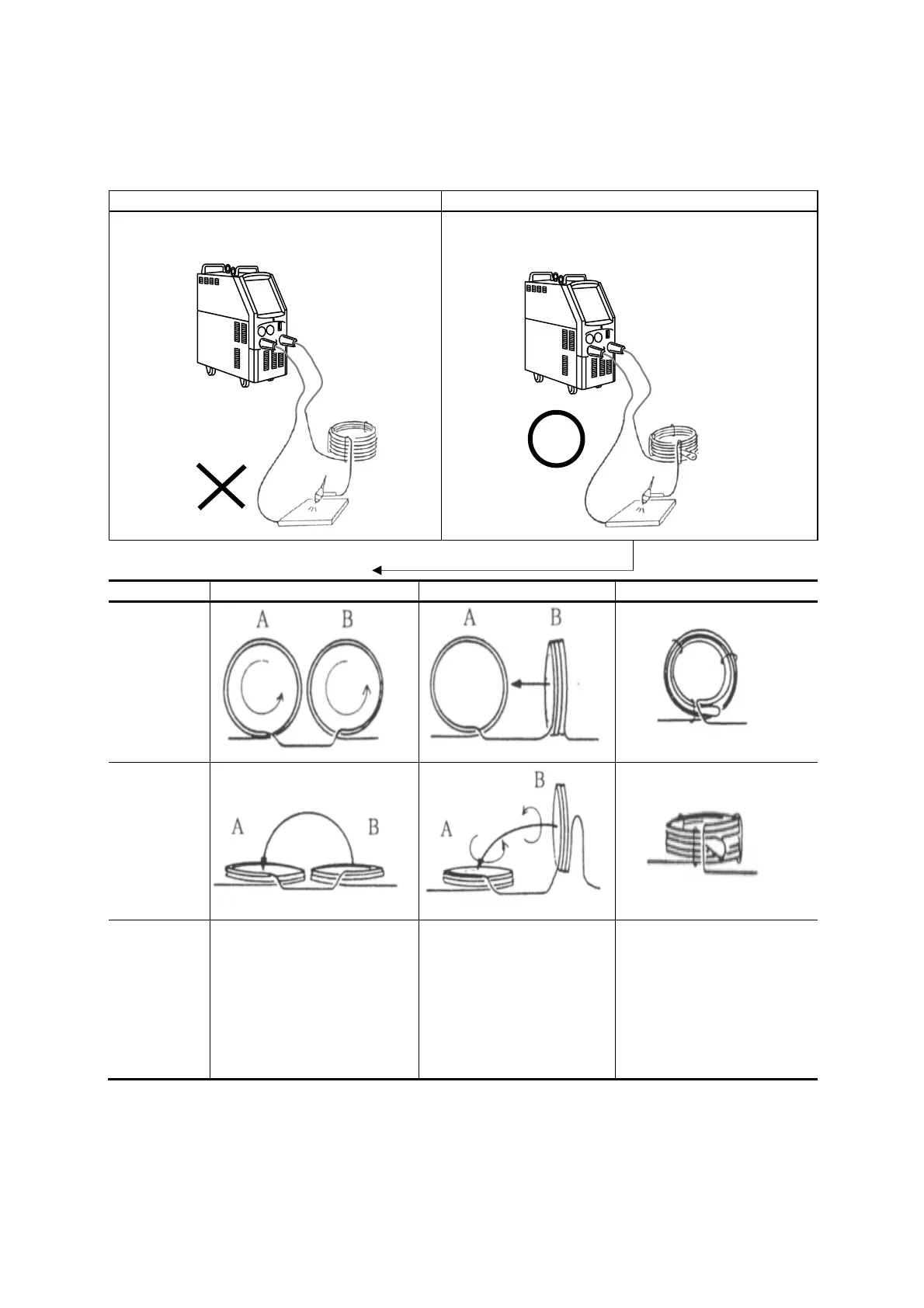

Winding method of excess cable
1 2 3
Top view
Side view
Explanation
Separate the excess cable
into A and B.
Wind it respectively as
followings.
Same winding direction.
Same turns of winding.
Same diameter of
Windings.
Place B over A in the
opposite direction.
After placing B over A, bind
the winding cable not to be
loose.
