Dahen DA300P - External Voltage (0-10 V) Control; External Voltage (0-12 V) Control; Pulse Peak Ratio Adjustment

- 45 -
10. OPERATION (continued)
(5) External voltage (0-12V) control: Function No. 5 ---- X
When used in AUTO mode combined with INVERTER ARGO, selecting [ON] status for this
function allows to use the machine with almost same conditions by slightly adjusting external
control voltage (pulse current and welding current or base current).
As the factory setting of this function is [OFF], select the status [ON] for Function No. 5 to activate
this function.
(6) External voltage (0-10V) control: Function No. 6 ---- X
When used in combination with robot whose maximum control voltage is 10 volts or less, this
function should be utilized.
As the factory setting of this function is [OFF], select the status [ON] for Function No. 6 to activate
this function.
If the status of Function No. 6 is set to [ON], the status of Function No. 5 will be automatically set
to [OFF].
٨

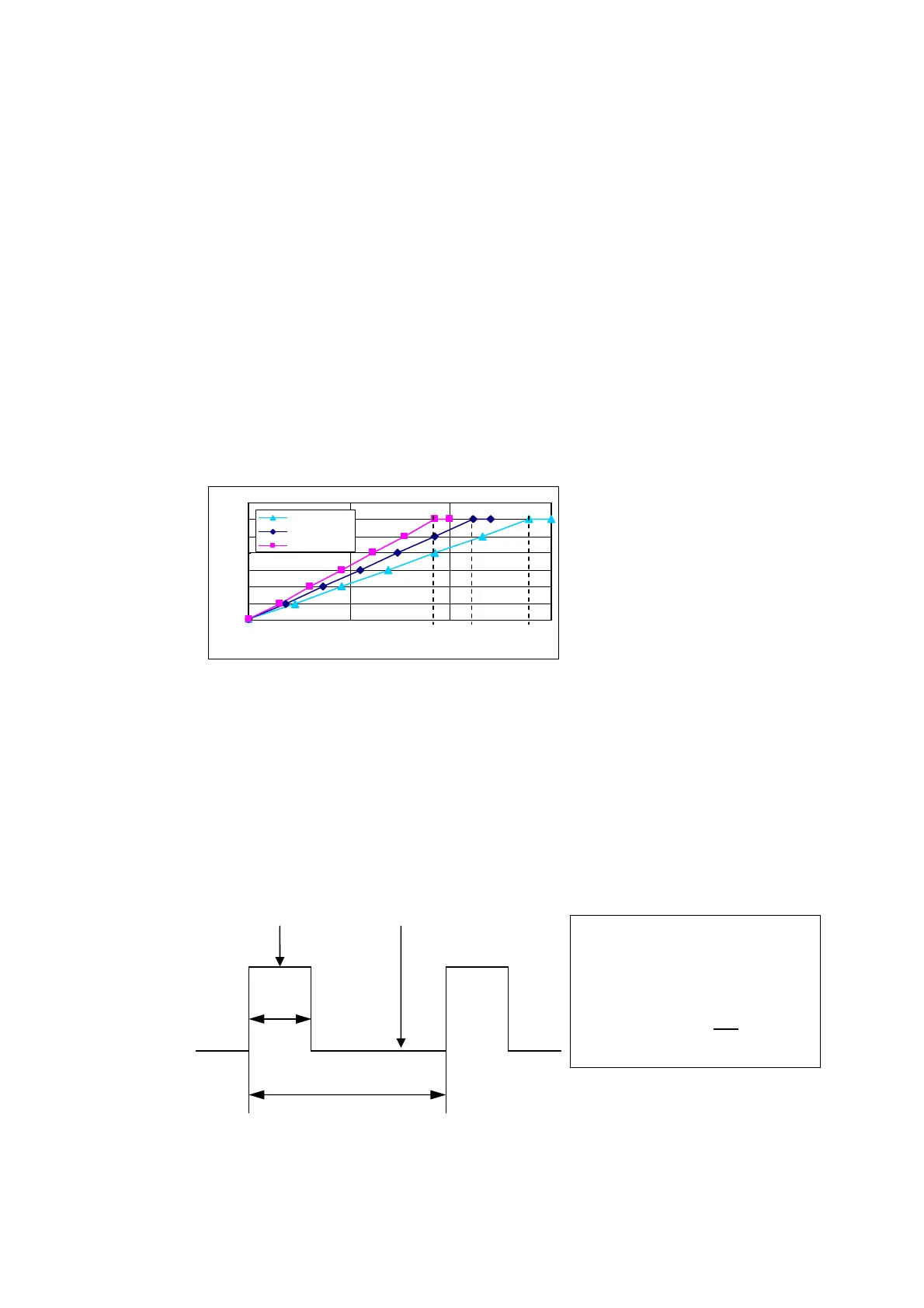

The following chart shows the relationship between external current control voltage and output
current.
< Ext. control voltage 1 (factory setting) >

External control range is 0V(min.)-15V(max.).
< Ext. control voltage 2 (function No.5 is ON) >

External control range is 0V(min.)-12V(max.).
< Ext. control voltage 3 (function No.6 is ON) >

External control range is 0V(min.)-10V(max.).
(7) Pulse peak ratio adjustment: Function No. 7 ---- O
The factory setting is 50%, which may be adjusted by selecting Function No. 7. When selected,
the set value appears on the left digital display with the unit indicator LED for “%” turned ON.
Pulse peak ratio can be adjusted in the range between 5% and 95%.
Pulse Current Base Current
㪇
㪌㪇
㪈㪇㪇
㪈㪌㪇
㪉㪇㪇
㪉㪌㪇
㪊㪇㪇
㪊㪌㪇
㪇 㪌 㪈㪇 㪈㪌
㪜㫏㫋㪼㫉㫅㪸㫃㩷㪺㫌㫉㫉㪼㫅㫋㩷㪺㫆㫅㫋㫉㫆㫃㩷㫍㫆㫃㫋㪸㪾㪼㩷㩿㪭㪀
㪮㪼㫃㪻㫀㫅㪾㩷㪚㫌㫉㫉㪼㫅㫋㩷㩿㪘㪀
㪜㫏㫋㪅㩷㪺㫆㫅㫋㫉㫆㫃㩷㫍㫆㫃㫋㪸㪾㪼㩷㪈
㪜㫏㫋㪅㩷㪺㫆㫅㫋㫉㫆㫃㩷㫍㫆㫃㫋㪸㪾㪼㩷㪉
㪜㫏㫋㪅㩷㪺㫆㫅㫋㫉㫆㫃㩷㫍㫆㫃㫋㪸㪾㪼㩷㪊
㪈㪈㪅㪈㪭
㪐㪅㪊㪭
㪈㪊㪅㪐
㪭
a
b
Pulse peak ratio is defined as
the percentage of pulse current
period in a cycle as follows.

Pulse peak ratio = ×100%
b
a

