11. APPLIED FUNCTION (continued)
11.3 Optional Accessories
11.3.1 Welding Torch
When using the welding power source by combining the following torches, use the proper torch
adapter.
Torch type Torch adapter
AW(P)-17 BBAWD-1701
AW-18 BBAWD-1801
AW-26 BBAWD-2601
Connecting to the Extension Torch Cable/Hose
㧔1㧕Water-Cooled Torch

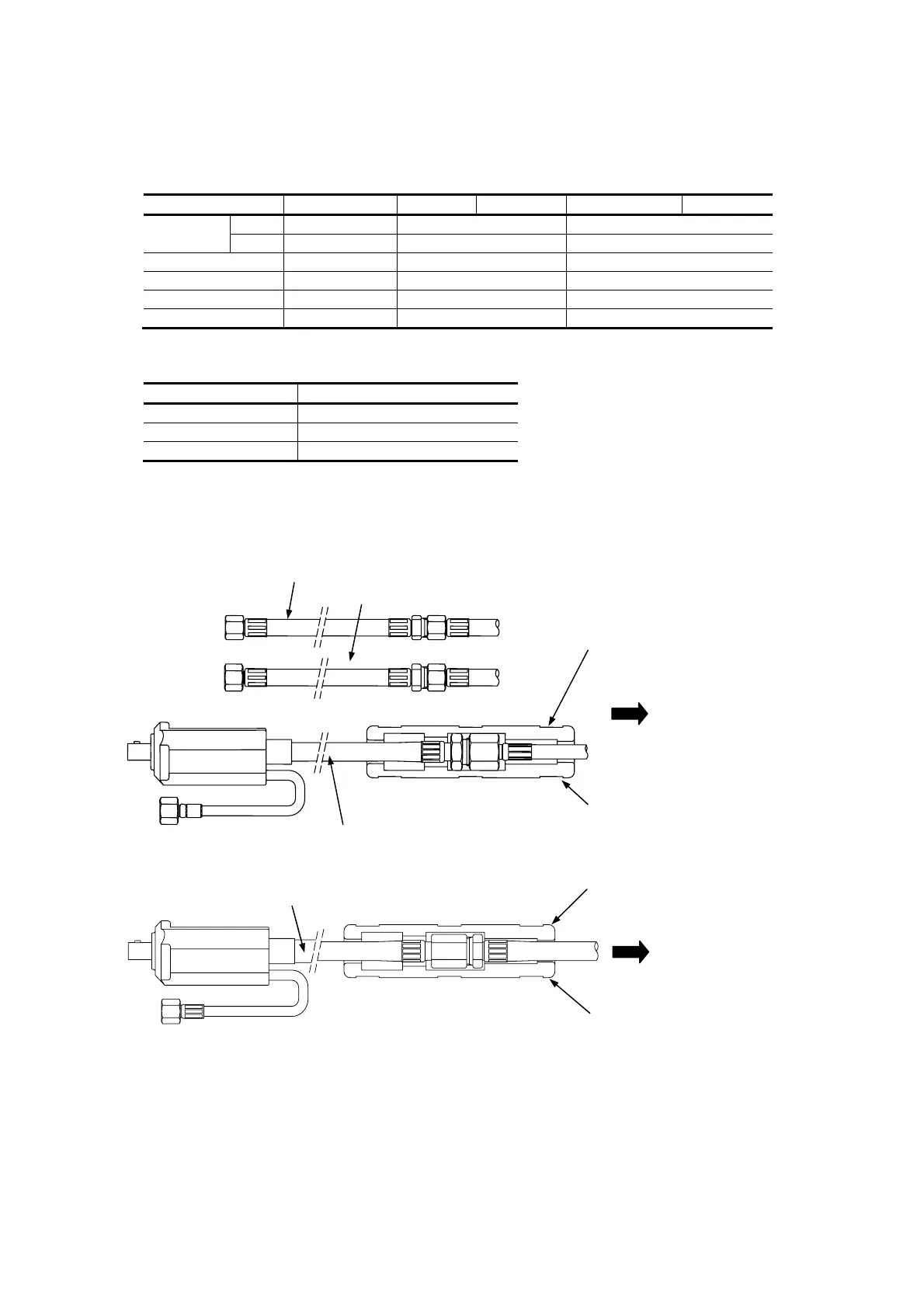

Connect the extension cables/hoses (optional accessories) as the figures shown below.
Do not confuse the water feeding hose with the condensate hose.
㧔2㧕Air-Cooled Torch
Model AW(P)-17 AW-18 AWD-18 AW-26 AWD-26
Rated
Current
DC 150 A 300 A 200 A
AC 130 A 260 A 160 A
Cooling Method Air Water Air
Duty Cycle 50% 100% 50%
Electrode Dia. 0.5 - 2.4mm 0.5 - 4.0mm 0.5 - 4.0mm
Cable Length 4 or 8m 4 or 8m 4 or 8m
Extension gas hose
Extension hose (for feeding water)
To water cooled torch
Taping
(three points)
Extension power cable (for condensate water)
Connecting cover H558M01
Extension power cable
To air cooled torch
Connecting cover H558M01
Taping
(three points)

