Dahua Technology DH-XVR1B16H User Manual

User’s Manual
118

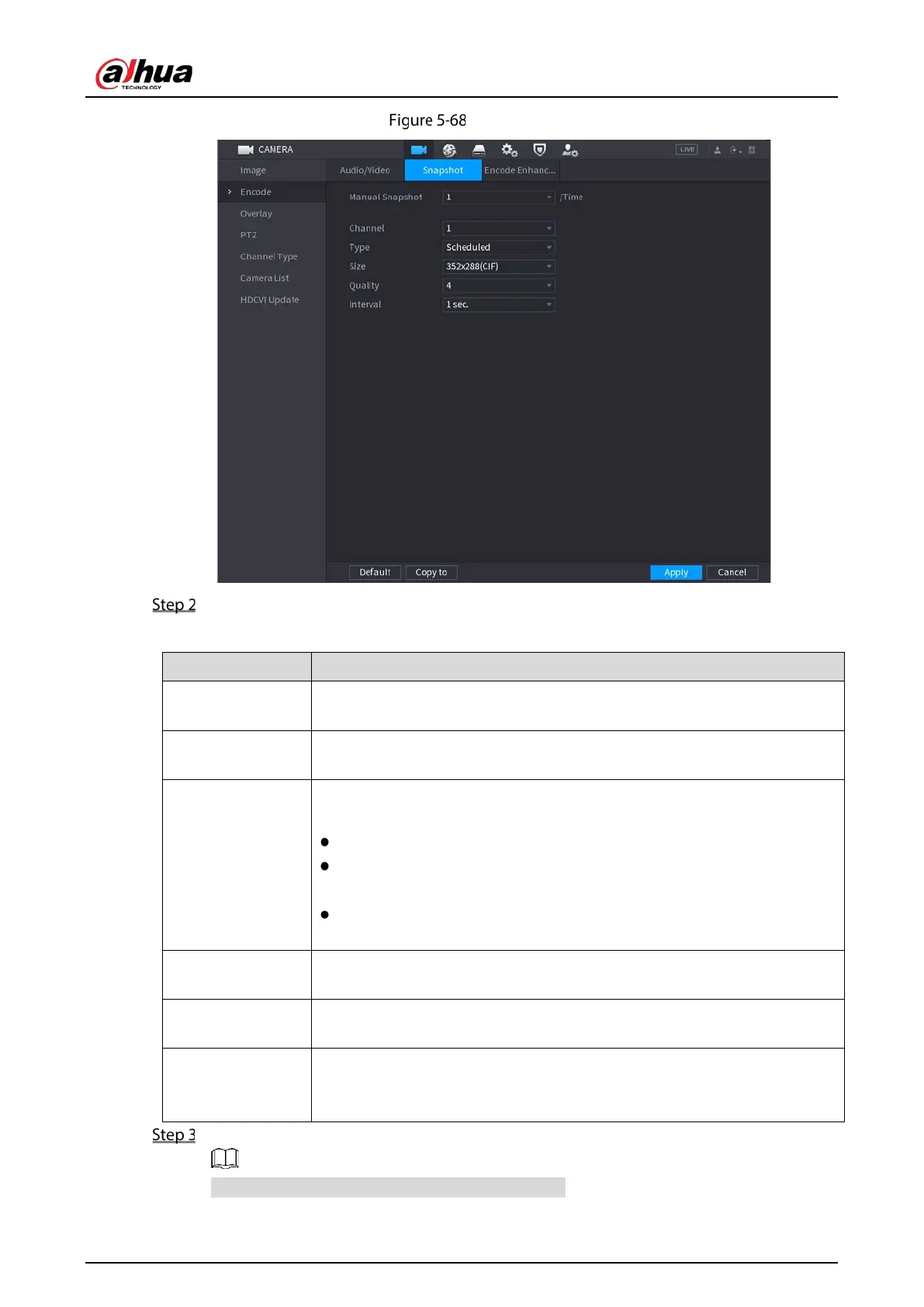

Snapshot
Configure the settings for the snapshot parameters.
Table 5-26 Snapshot parameters
Parameter
Description
Manual Snapshot
In the
Manual Snapshot
list, select how many snapshots you want to take
each time.
Channel
In the
Channel
list, select the channel that you want to configure the
settings for.
Type
In the
Type
list, you can select
Scheduled
,
Event
, or
Face Snapshot
as the
event type for which you want to take a snapshot.
Scheduled
: The snapshot is taken during the scheduled period.
Event
: The snapshot is taken when there is an alarm event occurs, such
as motion detection event, video loss, and local alarms.
Face Snapshot:
The snapshot is taken when the face is detected. The
face detection function is support only with the Channel 1.
Size
In the
Size
list, select a value for the image. The bigger the value is, the better
the image will become.
Quality
Configures the image quality by 6 levels. The higher the level, the better the
image will become.
Interval
Configures or customizes the snapshot frequency. You can select 1 second
per one snapshot to 7 seconds per one snapshot. The maximum is 3600
seconds per one snapshot.
Click Apply to complete the settings.
Click Copy to to copy the settings to other channels.

Dahua Technology DH-XVR1B16H Specifications

General

Aspect ratio	16:9
Certification	FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1
Product color	Black
Rack capacity	1U
Playback modes	Fast, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop, Zoom
Backup function	Yes
Channels quantity	16 channels
Multi-display modes	4, 8, 9, 16
Video capturing speed	60 fps
Maximum recording time	1 h
Audio formats supported	AAC, G.711, PCM
Network connection type	RJ-45
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Video capturing speed (PAL)	30 fps
Playback resolutions supported	3840x2160, 1920×1080, 1280×1024, 1280×720
BNC input ports	16
BNC output ports	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Supported network protocols	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter , DDNS, FTP, Alarm Server, P2P, IP Search
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
DC voltage	12 V
Power supply type	DC
Power consumption (typical)	10 W
Package weight	1000 g
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 45 °C
Storage relative humidity (H-H)	0 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	236 mm
Width	260 mm
Height	48 mm
Weight	860 g
