Users Manual
120
Overlay

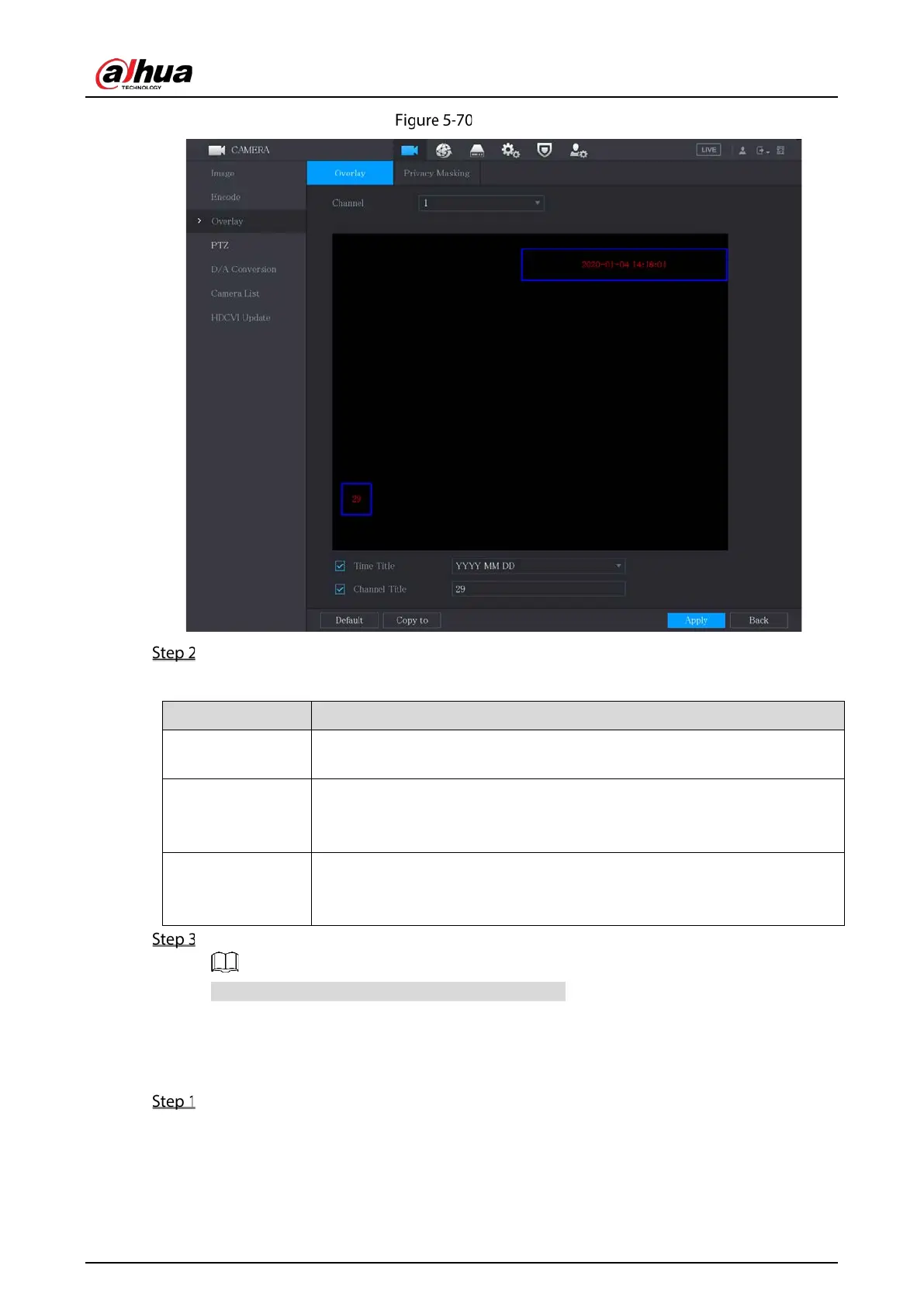

Configure the settings for the text overlay parameters.
Table 5-27 Overlay parameters
Parameter
Description
Channel
In the
Channel
list, select the channel that you want to configure the
settings for.
Time Title
Select the
Time Title
check box to display the system time on each channel
window in the live view screen.
In the
Time Title
list, select time display style.
Channel Title
Select the
Channel Title
check box to display the channel name on each
channel window in the live view screen.
In the
Channel Title
box, enter the name for the selected channel.
Click Apply to complete the settings.
Click Copy to to copy the settings to other channels.
5.5.4 Configuring Covered Area Settings
Select Main Menu > CAMERA > Overlay > Privacy Masking.
