Users Manual
41
No.
Port Name
Function
10 Video input port Connect to analog camera to input video signal.
11 Network port Connects to Ethernet port.
12 VGA video output
Outputs analog video signal. It can connect to the monitor to view
analog video.
13
RS-
232 debug
COM.
It is for general COM debug to configure IP address or transfer
transparent COM data.
14 HDMI port
High definition audio and video signal output port. It outputs the
same video source as VGA. It supports 4K resolution output and
supports mouse operation and control.
Note when the HDMI output resolution is 4K, the VGA output stops.
15 USB port
Connects to the external devices such as keyboard, mouse, and USB
storage device.
16 eSATA port
External SATA port which connects to the device with SATA port.
Perform the jumper configuration when connecting HDD.
3.2.12 DH-XVR7816S-4KL-X-LP

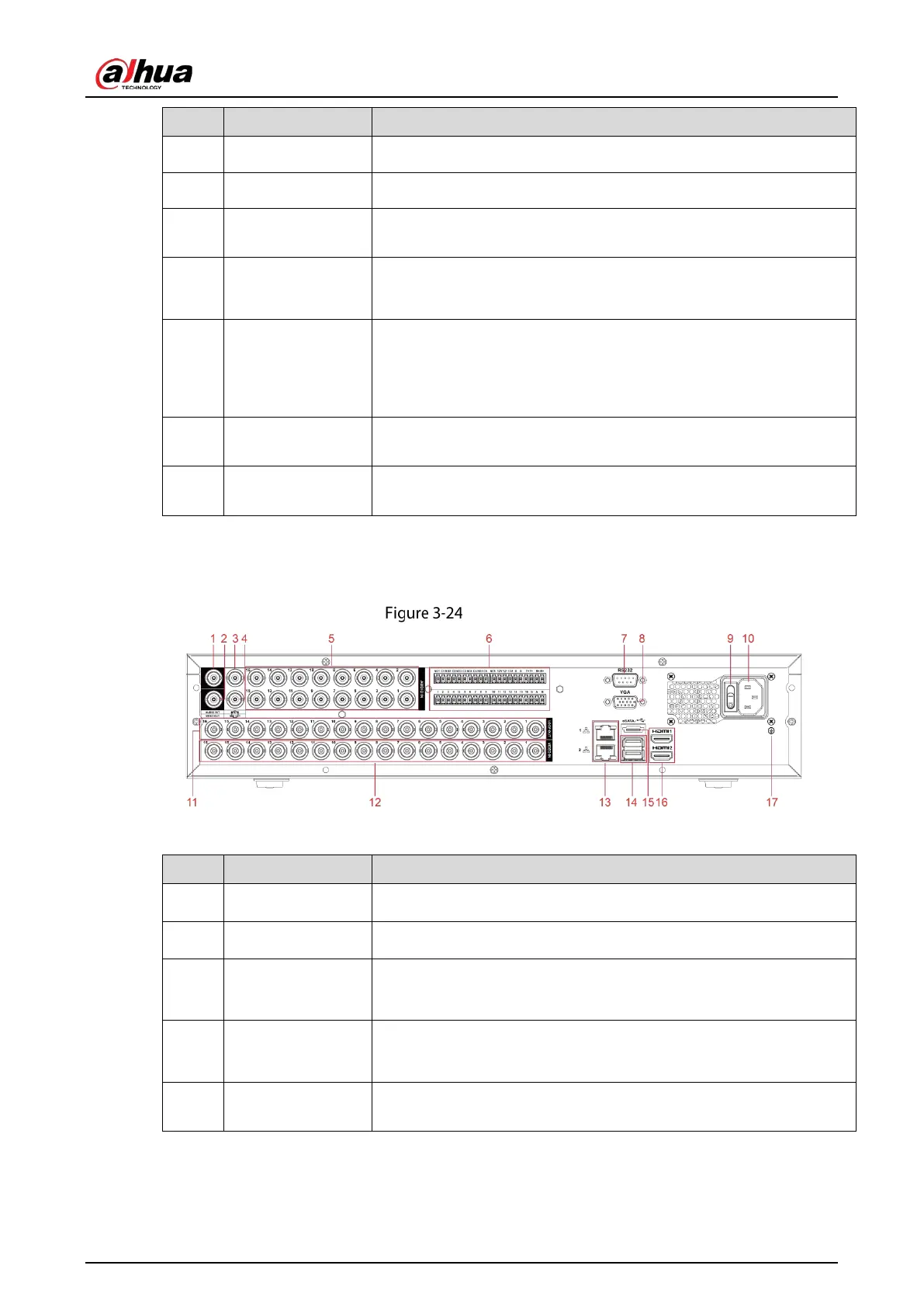

Rear panel
Table 3-21 Rear panel description
No.
Port Name
Function
1
Audio output port
Outputs the analog audio signal to the devices such as the sound box.
2 Video output port
Connect to video output devices such as TV.
3
Audio input port
(MIC IN)
Tow-way talk input port which receives
the analog audio signal
output from the devices such as microphone, pickup.
4
Audio output port
(MIC OUT)
Tow-way talk output port which outputs the analog audio signal to
the devices such as the sound box.
5
Audio input port
Receives the analog audio signal output from the devices such as
microphone.
