Users Manual
346

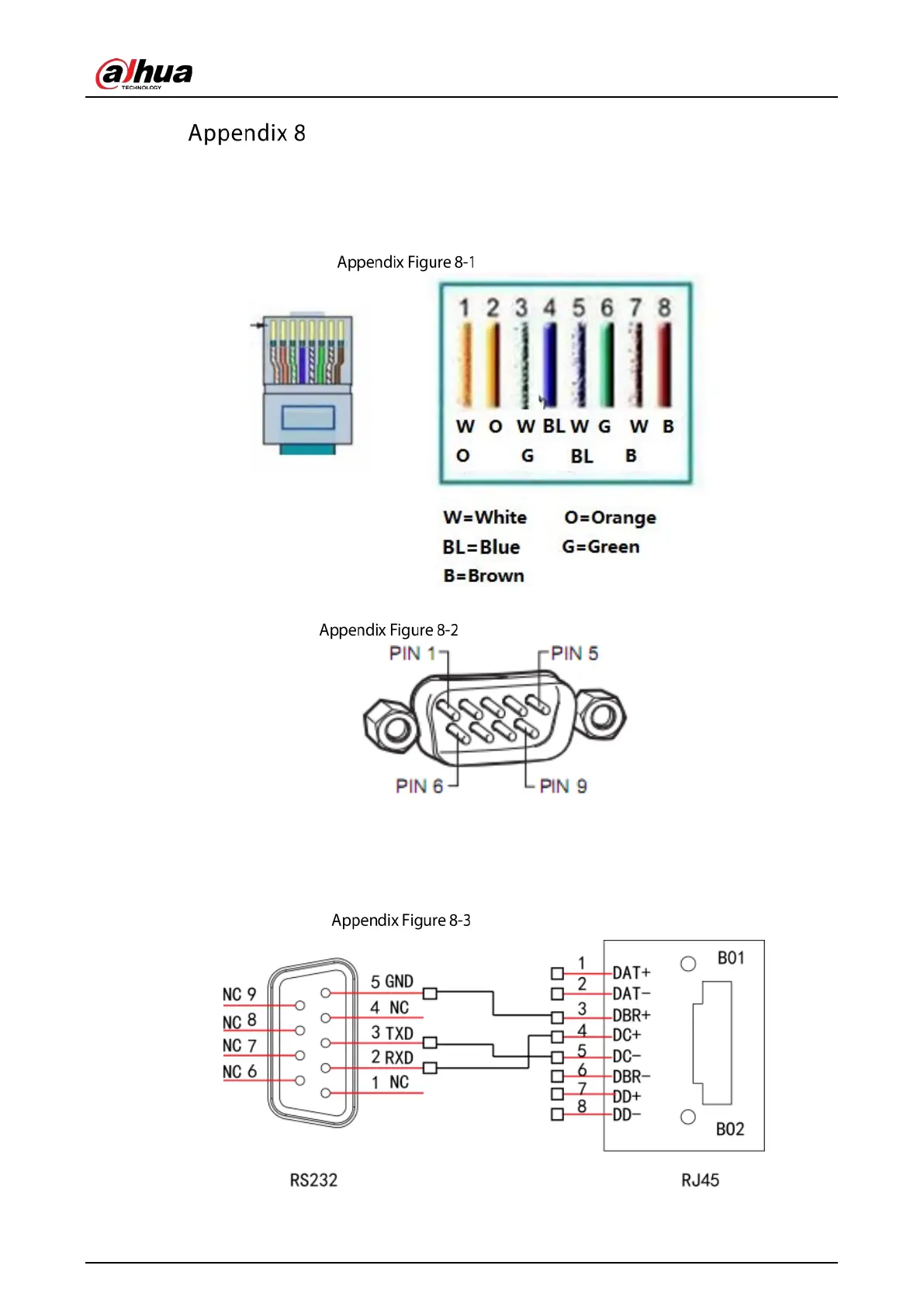

RJ45-RS-232 Connection Cable Definition
Here we are going to make standard RS-232 port and standard RJ-45 (T568B).
Please refer to the following figure for RJ-45 cable definition.
RJ-45 definition
Please refer to the following figure for RS-232 pin definition.
RS-232 pin definition
Cross Connection
Please refer to the following figure for connection information.
Cross connection

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dahua Technology DH-XVR1B16H and is the answer not in the manual?

Dahua Technology DH-XVR1B16H Specifications

General IconGeneral
Aspect ratio16:9
CertificationFCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1
Product colorBlack
Rack capacity1U
Playback modesFast, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop, Zoom
Backup functionYes
Channels quantity16 channels
Multi-display modes4, 8, 9, 16
Video capturing speed60 fps
Maximum recording time1 h
Audio formats supportedAAC, G.711, PCM
Network connection typeRJ-45
Maximum video resolution3840 x 2160 pixels
Video compression formatsH.264, H.264+, H.265, H.265+
Analog signal format systemNTSC, PAL
Video capturing speed (PAL)30 fps
Playback resolutions supported3840x2160, 1920×1080, 1280×1024, 1280×720
BNC input ports16
BNC output ports1
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Number of users128 user(s)
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Supported network protocolsHTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter , DDNS, FTP, Alarm Server, P2P, IP Search
HDD interfaceSerial ATA
Maximum HDD capacity6000 GB
DC voltage12 V
Power supply typeDC
Power consumption (typical)10 W
Package weight1000 g
Storage temperature (T-T)-20 - 70 °C
Operating temperature (T-T)-10 - 45 °C
Storage relative humidity (H-H)0 - 90 %
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Depth236 mm
Width260 mm
Height48 mm
Weight860 g
