Users Manual
53

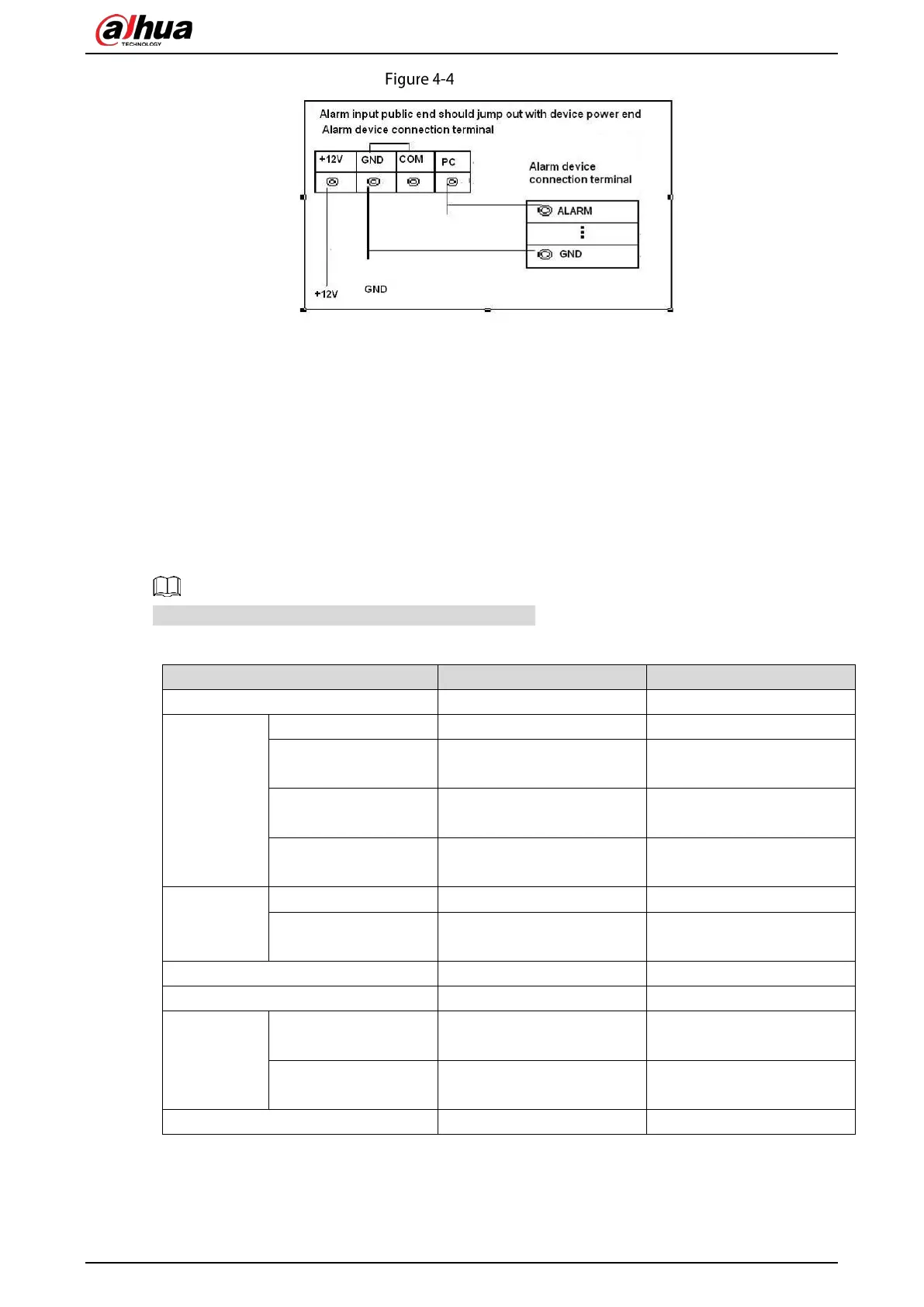

Alarm input
4.3.3 Alarm Output
Provide external power to external alarm device.
To avoid overloading, read the following relay parameters table carefully.
RS-485 A/B cable is for the A/B cable of the PTZ decoder.
4.3.4 Alarm Output Relay Parameters
Refer to the actual product for relay model information.
Table 4-2 Alarm output relay parameters
Model
HFD23/005-1ZS
HRB1-S-DC5V
Material of the touch AgNi+ gold-plating AuAg10/AgNi10/CuNi30
Rating
(Resistance
Load)
Rated switch capacity 30 VDC 1 A/125 VAC 0.5 A 24 VDC 1 A/125 VAC 2 A
Maximum switch
power
62.5 VA/30 W 250 VA/48 W
Maximum switch
voltage
125 VAC/60 VDC 125 VAC/60 VDC
Maximum switch
currency
2 A 2 A
Insulation
Between touches 400 VAC 1 minute 500 VAC 1 minute
Between touch and
winding
1000 VAC 1 minute 1000 VAC 1 minute
Turn-on Time 5 ms max 5 ms max
Turn-off Time 5 ms max 5 ms max
Longevity
Mechanical
1×10
7
times
(300 times/min)
5×10
6
times
(300 times/min)
Electrical
1×10
5
times
(30 times/min)
2.5×10
4
times
(30 times/min)
Working Temperature -30 °C to +70 °C -40 °C to +70 °C
