Users Manual
87
supports two-way talk.
Click , the icon switches to , the two-way talk of the remote device is turned on. The two-
way talk of other digital channels is disabled.
Click to cancel the two-way talk. The two-way talk of other digital channels is resumed.
5.2.2.9 Adding Camera (Digital channel only)
You can view the information of remote devices and add new remote devices to replace the current
connected devices.
By clicking , the
Camera List interface is displayed. For details about adding the remote devices,
see "5.6 Configuring Remote Devices."
5.2.3 Navigation Bar
You can access the functions to perform operations through the function icons on the navigation bar.

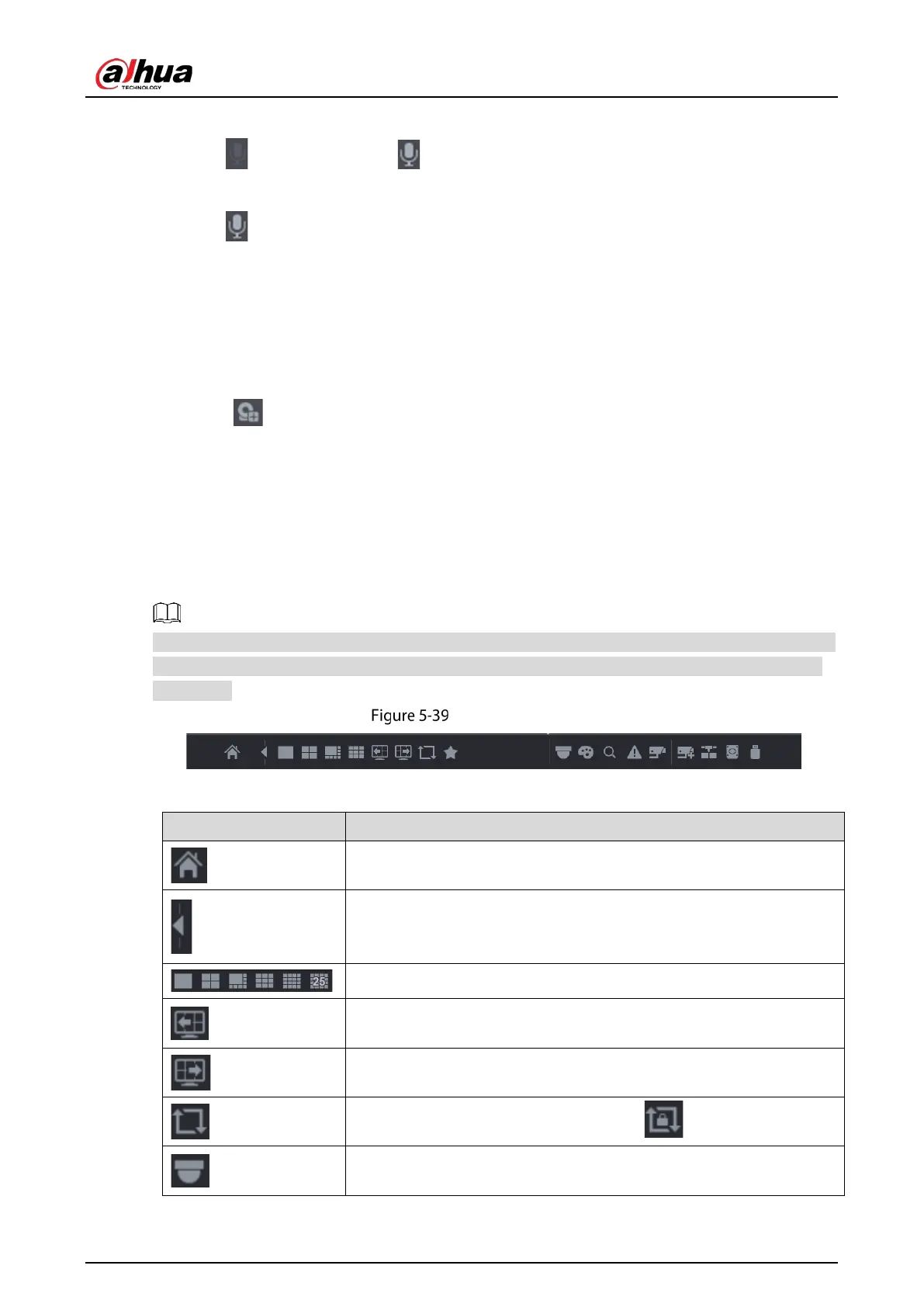

For example, you can access Main Menu and switch window split mode. See Figure 5-39.
The navigation bar is disabled by default. It does not appear in the live view screen until it is enabled.
To enable it, select Main Menu > SYSTEM > General > Basic, enable the Navigation Bar, and then
click Apply.
Navigation bar
Table 5-12 Navigation bar description
Icon
Function
Open Main Menu.
Expand or condense the navigation bar.
Select view layout.
Go to the previous screen.
Go to the next screen.
Enable tour function. The icon switches to .
Open the PTZ control panel. For details, see "5.4 Controlling PTZ
Cameras."
