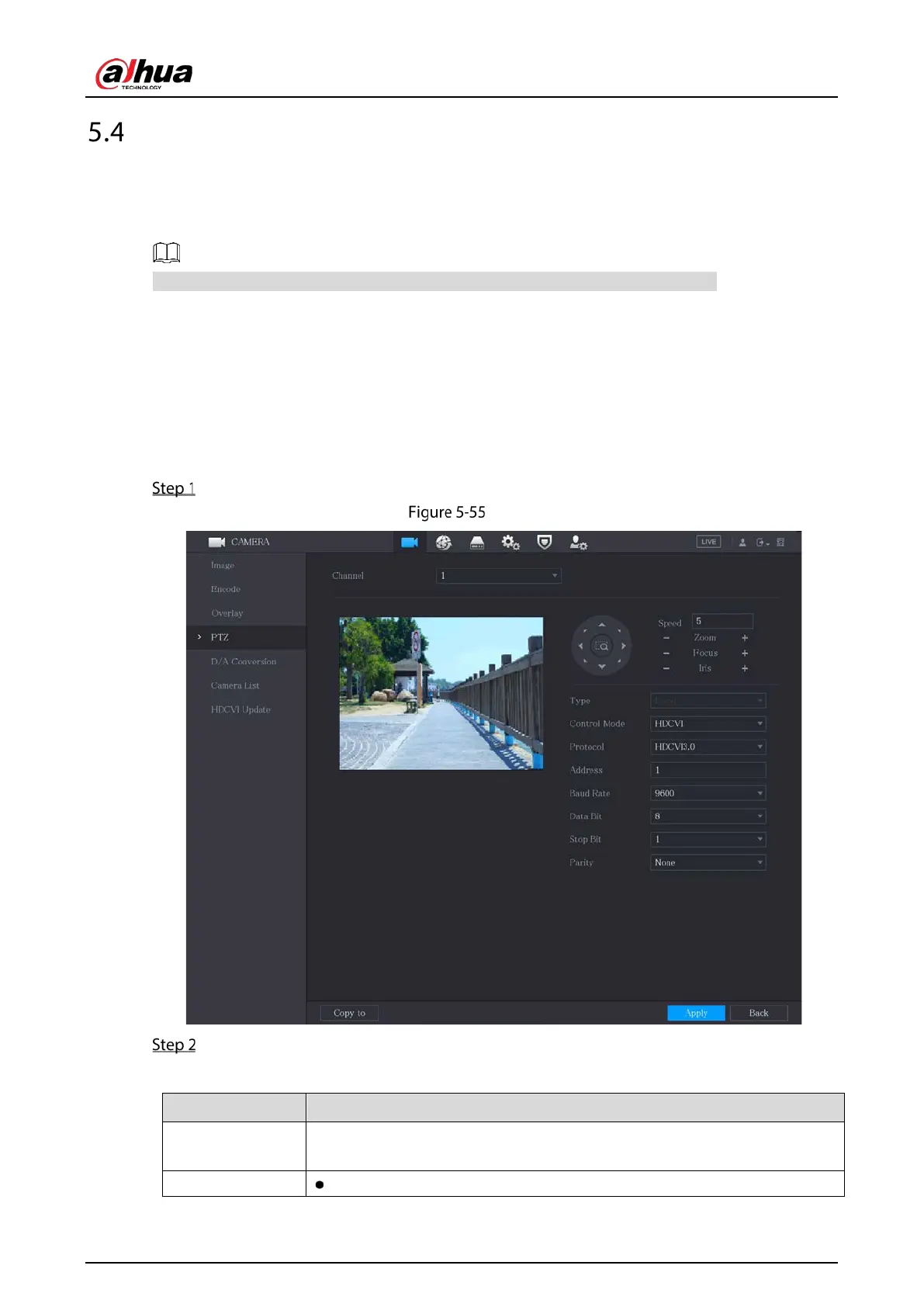

Users Manual
105
Controlling PTZ Cameras
PTZ is a mechanical platform that carries a camera and a protective cover and performs overall control
remotely. A PTZ can move in both horizontal and vertical direction to provide all-around view to the
camera.
Before operating PTZ, ensure the network connection between PTZ and the Device.
5.4.1 Configuring PTZ Connection Settings
You need to configure the PTZ connection settings before use.
Local connection: RS-485 Port for connecting speed dome or coaxial cable for connecting coaxial
camera.
Remote connection: local area network.
Select Main Menu > CAMERA > PTZ.
PTZ
Configure the settings for the PTZ connection parameters.
Table 5-21 PTZ parameters
Parameter
Description
Channel
In the
Channel
list, select the channel that you want to connect the PTZ
camera to.
Type Local: Connect through RS-485 port or coaxial cable.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dahua Technology DH-XVR1B16H and is the answer not in the manual?

Dahua Technology DH-XVR1B16H Specifications

General IconGeneral
Aspect ratio16:9
CertificationFCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1
Product colorBlack
Rack capacity1U
Playback modesFast, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop, Zoom
Backup functionYes
Channels quantity16 channels
Multi-display modes4, 8, 9, 16
Video capturing speed60 fps
Maximum recording time1 h
Audio formats supportedAAC, G.711, PCM
Network connection typeRJ-45
Maximum video resolution3840 x 2160 pixels
Video compression formatsH.264, H.264+, H.265, H.265+
Analog signal format systemNTSC, PAL
Video capturing speed (PAL)30 fps
Playback resolutions supported3840x2160, 1920×1080, 1280×1024, 1280×720
BNC input ports16
BNC output ports1
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Number of users128 user(s)
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Supported network protocolsHTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter , DDNS, FTP, Alarm Server, P2P, IP Search
HDD interfaceSerial ATA
Maximum HDD capacity6000 GB
DC voltage12 V
Power supply typeDC
Power consumption (typical)10 W
Package weight1000 g
Storage temperature (T-T)-20 - 70 °C
Operating temperature (T-T)-10 - 45 °C
Storage relative humidity (H-H)0 - 90 %
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Depth236 mm
Width260 mm
Height48 mm
Weight860 g
