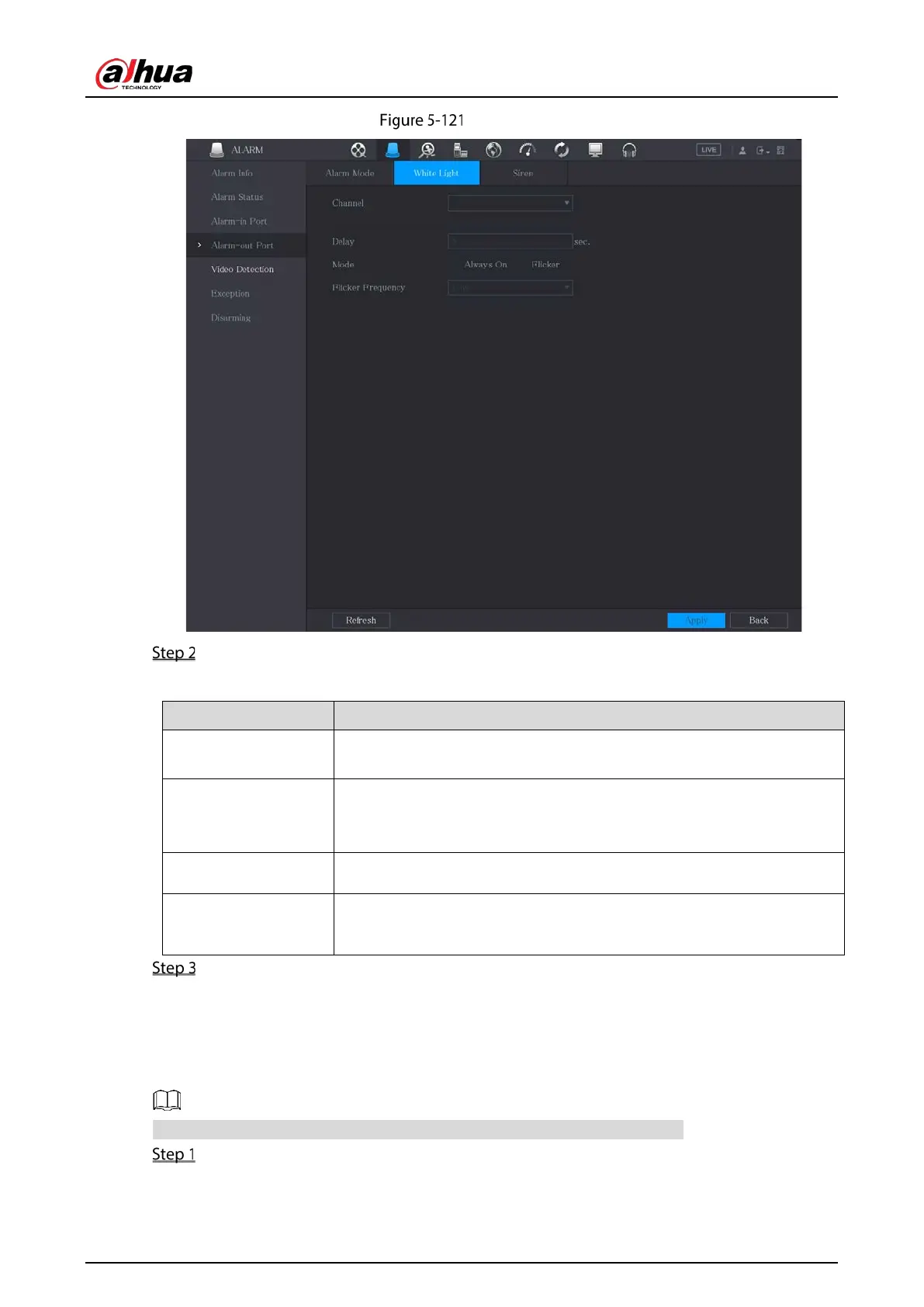

White light
Configure the settings for the white light parameters.
Table 5-38 White light parameters
Parameter
Description
Channel
In the
Channel
list, select a channel that is connected to a white light
camera.
Delay
Set a length of time for the Device to delay turning off alarm after the
alarm is cancelled. The value ranges from 5 seconds to 30 seconds, and
the default value is 5 seconds.
Mode Set the alarm mode of white light to be
Always on
or
Flicker
.
Flicker Frequency
When setting the alarm mode of white light to be
Flash
, you can select
the flash frequency from
Low
,
Middle
, and
High
.
Click Apply to complete the settings.
5.10.3.3 Configuring Siren
When the motion detection alarm is activated, the system links the camera to generate sound alarm.
To use this function, connect at least one camera that supports audio function.
Select Main Menu > ALARM > Alarm-out Port > Siren.

Dahua Technology DH-XVR1B16H Specifications

General

Aspect ratio	16:9
Certification	FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1
Product color	Black
Rack capacity	1U
Playback modes	Fast, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop, Zoom
Backup function	Yes
Channels quantity	16 channels
Multi-display modes	4, 8, 9, 16
Video capturing speed	60 fps
Maximum recording time	1 h
Audio formats supported	AAC, G.711, PCM
Network connection type	RJ-45
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Video capturing speed (PAL)	30 fps
Playback resolutions supported	3840x2160, 1920×1080, 1280×1024, 1280×720
BNC input ports	16
BNC output ports	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Supported network protocols	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter , DDNS, FTP, Alarm Server, P2P, IP Search
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
DC voltage	12 V
Power supply type	DC
Power consumption (typical)	10 W
Package weight	1000 g
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 45 °C
Storage relative humidity (H-H)	0 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	236 mm
Width	260 mm
Height	48 mm
Weight	860 g
