Dahua Technology DH-XVR1B16H User Manual

User’s Manual
169

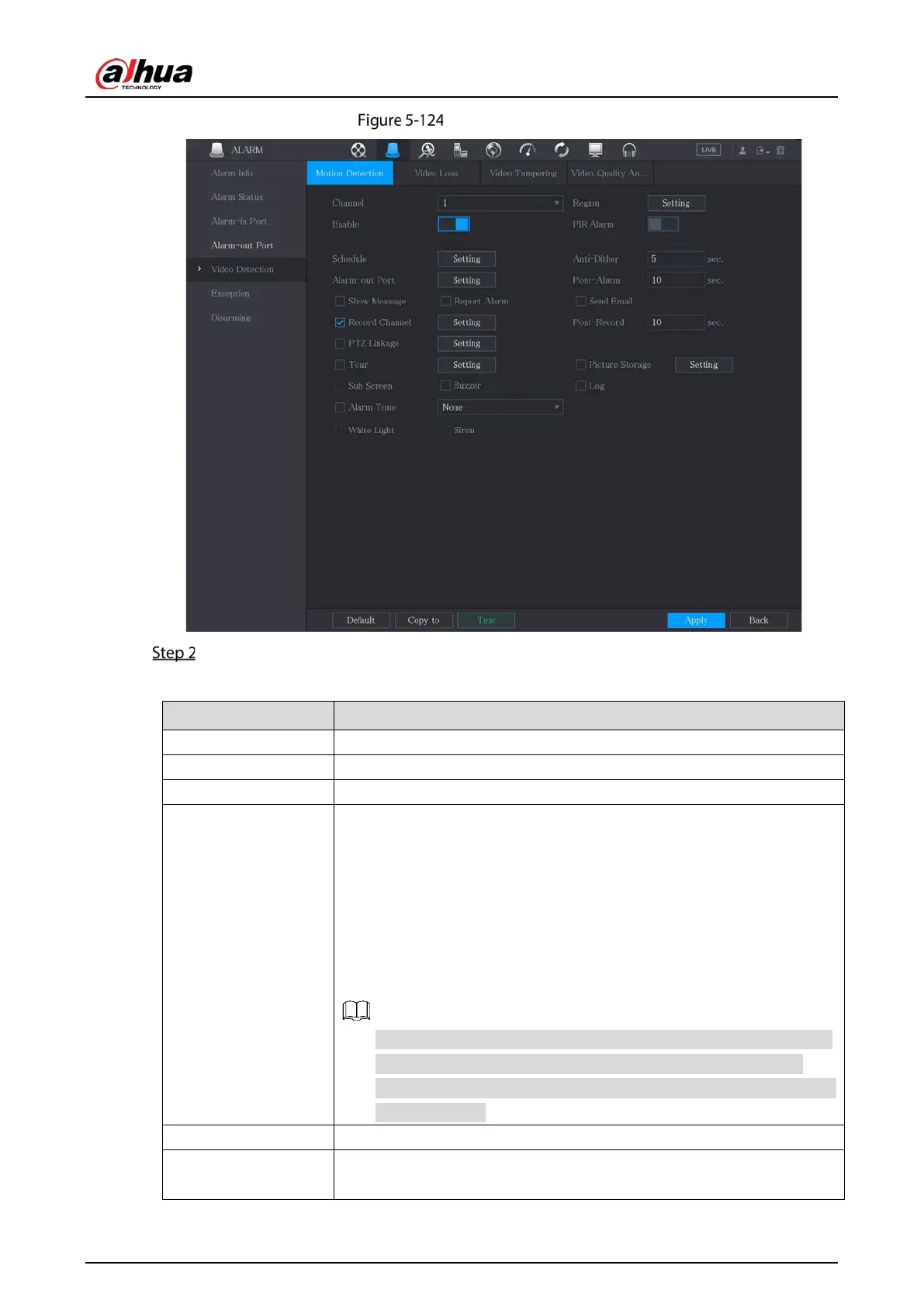

Motion detection
Configure the settings for the motion detection parameters.
Table 5-40 Motion detection parameters
Parameter
Description
Channel In the
Channel
list, select a channel to set the motion detection.
Region Click
Setting
to define the motion detection region.
Enable Enable or disable the motion detection function.
PIR Alarm
PIR function helps enhancing the accuracy and validity of motion detect.
It can filter the meaningless alarms that are activated by the objects such
as falling leaves, flies. The detection range by PIR is smaller than the field
angle.
PIR function is enabled by default if it is supported by the cameras.
Enabling PIR function will get the motion detect to be enabled
automatically to generate motion detection alarms; if the PIR function is
not enabled, the motion detect just has the general effect.
 Only when the channel type is CVI, the PIR function can be enabled.
 If the camera does not support PIR function, it will be unusable.
 If the Device does not support PIR function, it will not be displayed
on the interface.
Schedule Define a period during which the motion detection is active.
Anti-Dither
Configure the time period from end of event detection to the stop of
alarm.

Dahua Technology DH-XVR1B16H Specifications

General

Aspect ratio	16:9
Certification	FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1
Product color	Black
Rack capacity	1U
Playback modes	Fast, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop, Zoom
Backup function	Yes
Channels quantity	16 channels
Multi-display modes	4, 8, 9, 16
Video capturing speed	60 fps
Maximum recording time	1 h
Audio formats supported	AAC, G.711, PCM
Network connection type	RJ-45
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Video capturing speed (PAL)	30 fps
Playback resolutions supported	3840x2160, 1920×1080, 1280×1024, 1280×720
BNC input ports	16
BNC output ports	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Supported network protocols	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter , DDNS, FTP, Alarm Server, P2P, IP Search
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
DC voltage	12 V
Power supply type	DC
Power consumption (typical)	10 W
Package weight	1000 g
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 45 °C
Storage relative humidity (H-H)	0 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	236 mm
Width	260 mm
Height	48 mm
Weight	860 g
