Dahua Technology DH-XVR1B16H User Manual

User’s Manual
171
Parameter
Description
Sub Screen
Select the check box to enable the function. When an alarm event occurs,
the extra screen outputs the settings configured in
Main Menu >
DISPLAY > Tour > Sub Screen.
 Not all models support this function.
 To use this function, extra screen shall be enabled.
Video Matrix
Select the check box to enable the function. When an alarm event
occurs, the video output port outputs the settings configured in
Main
Menu > DISPLAY > Tour
.
Not all models support this function.
Buzzer Select the check box to activate a buzzer noise at the Device.
Log Select the check box to enable the Device to record a local alarm log.
Alarm Tone
Select to enable audio broadcast/alarm tones in response to a motion
detection event.
White Light Select the check box to enable white light alarm of the camera.
Siren Select the check box to enable sound alarm of the camera.
Click Apply to save the settings.
 Click Default to restore the default setting.
 Click Copy to, in the Copy to dialog box, select the additional channel(s) that you want to copy
the motion detection settings to, and then click Apply.
 Click Test to test the settings.

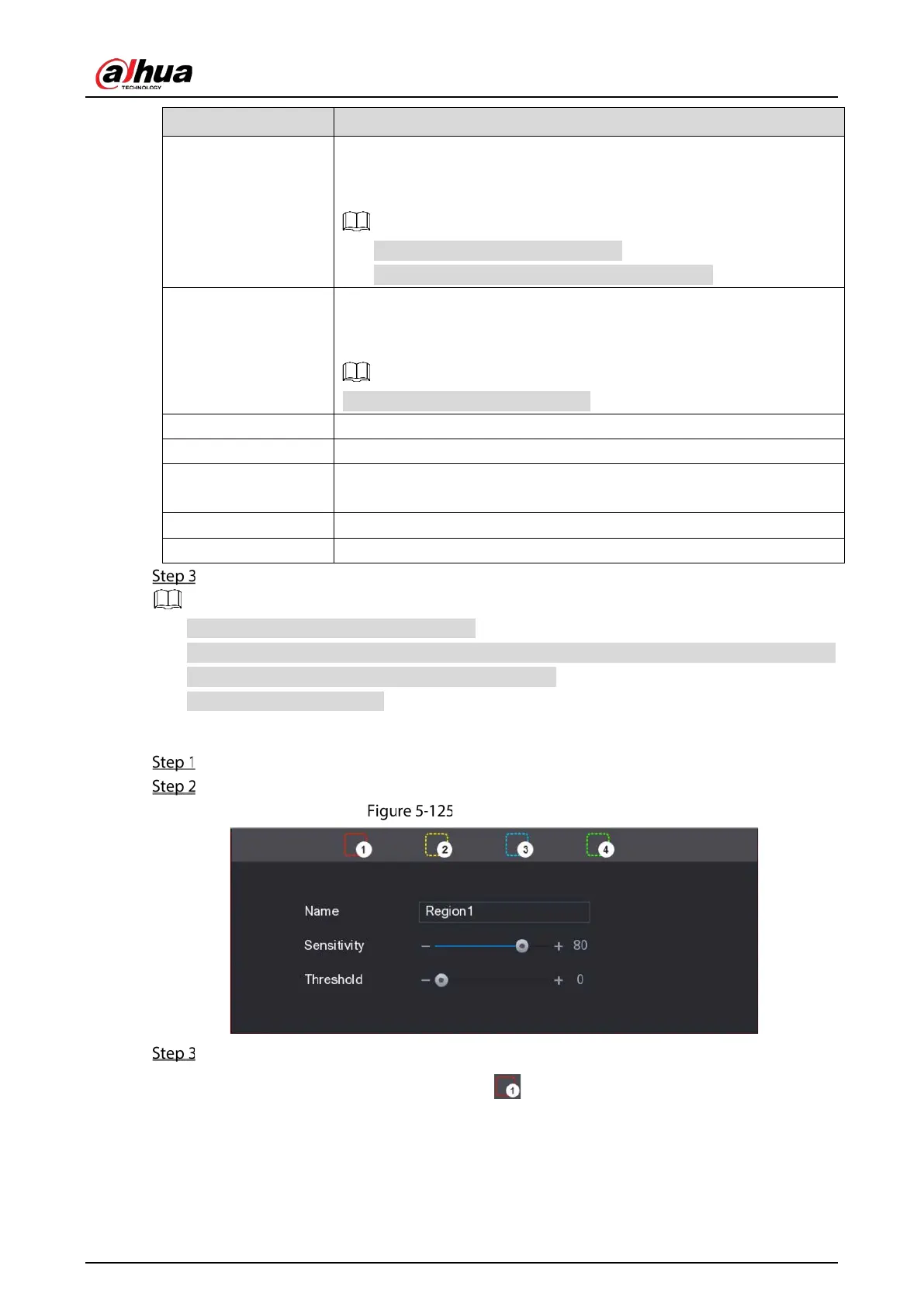

Setting the Motion Detection Region
Next to Region, click Setting.
Point to the middle top of the interface.
Region setting
Configure the regions settings. You can configure totally four regions.
1) Select one region, for example, click .
2) Drag on the screen to select the region that you want to detect.
The selected area shows the color that represents the region.
3) Configure the parameters.

Dahua Technology DH-XVR1B16H Specifications

General

Aspect ratio	16:9
Certification	FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1
Product color	Black
Rack capacity	1U
Playback modes	Fast, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop, Zoom
Backup function	Yes
Channels quantity	16 channels
Multi-display modes	4, 8, 9, 16
Video capturing speed	60 fps
Maximum recording time	1 h
Audio formats supported	AAC, G.711, PCM
Network connection type	RJ-45
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Video capturing speed (PAL)	30 fps
Playback resolutions supported	3840x2160, 1920×1080, 1280×1024, 1280×720
BNC input ports	16
BNC output ports	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Supported network protocols	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter , DDNS, FTP, Alarm Server, P2P, IP Search
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
DC voltage	12 V
Power supply type	DC
Power consumption (typical)	10 W
Package weight	1000 g
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 45 °C
Storage relative humidity (H-H)	0 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	236 mm
Width	260 mm
Height	48 mm
Weight	860 g
