User’s Manual
12

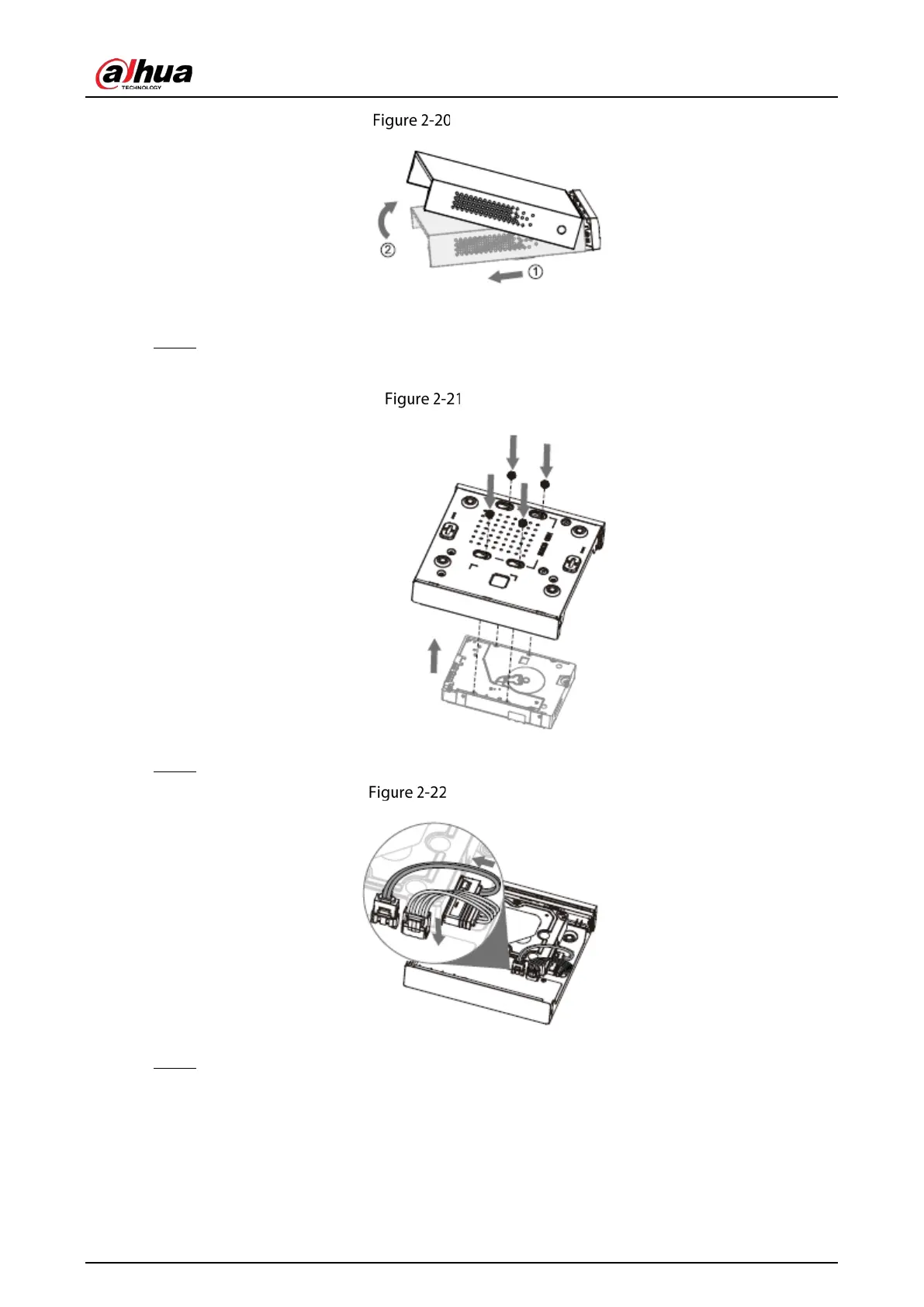

Remove cover
Step 3 Turn over the device, and align the HDD to the four holes of bottom panel, and then fix the
HDD with screws.
Align HDD
Step 4 Connect HDD to the device using data cable and power cable.
Connect cables
Step 5 Put back and fix the cover with the screws.
