User’s Manual
14

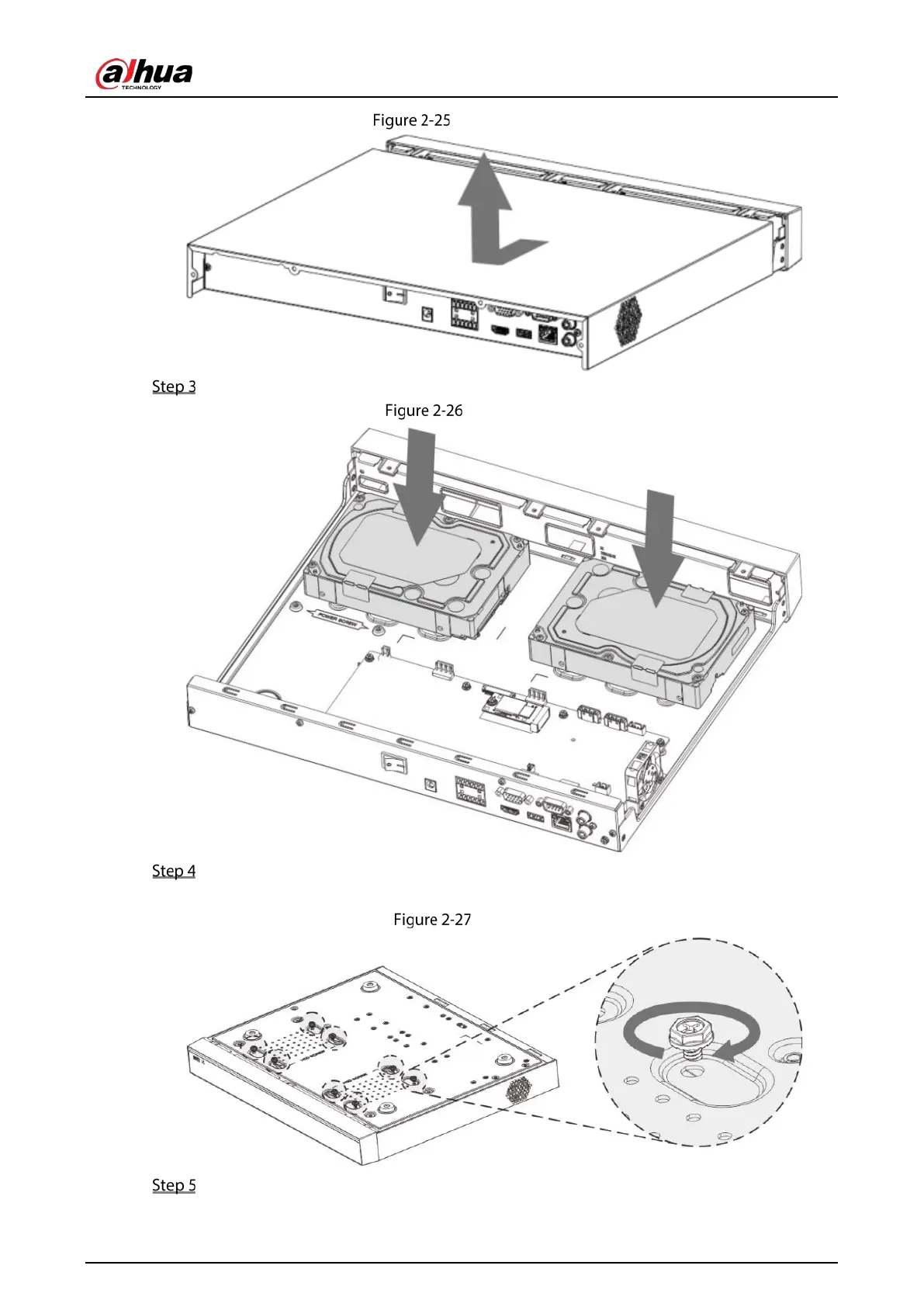

Remove cover
Match the four holes on the baseboard to place the HDD.
Place HDD
Turn the device upside down, match the screws with the holes on the HDD and then fasten
them. The HDD is fixed to the baseboard.
Fix HDD
Connect the HDD data cable and power cable to the device.
