Users Manual
78

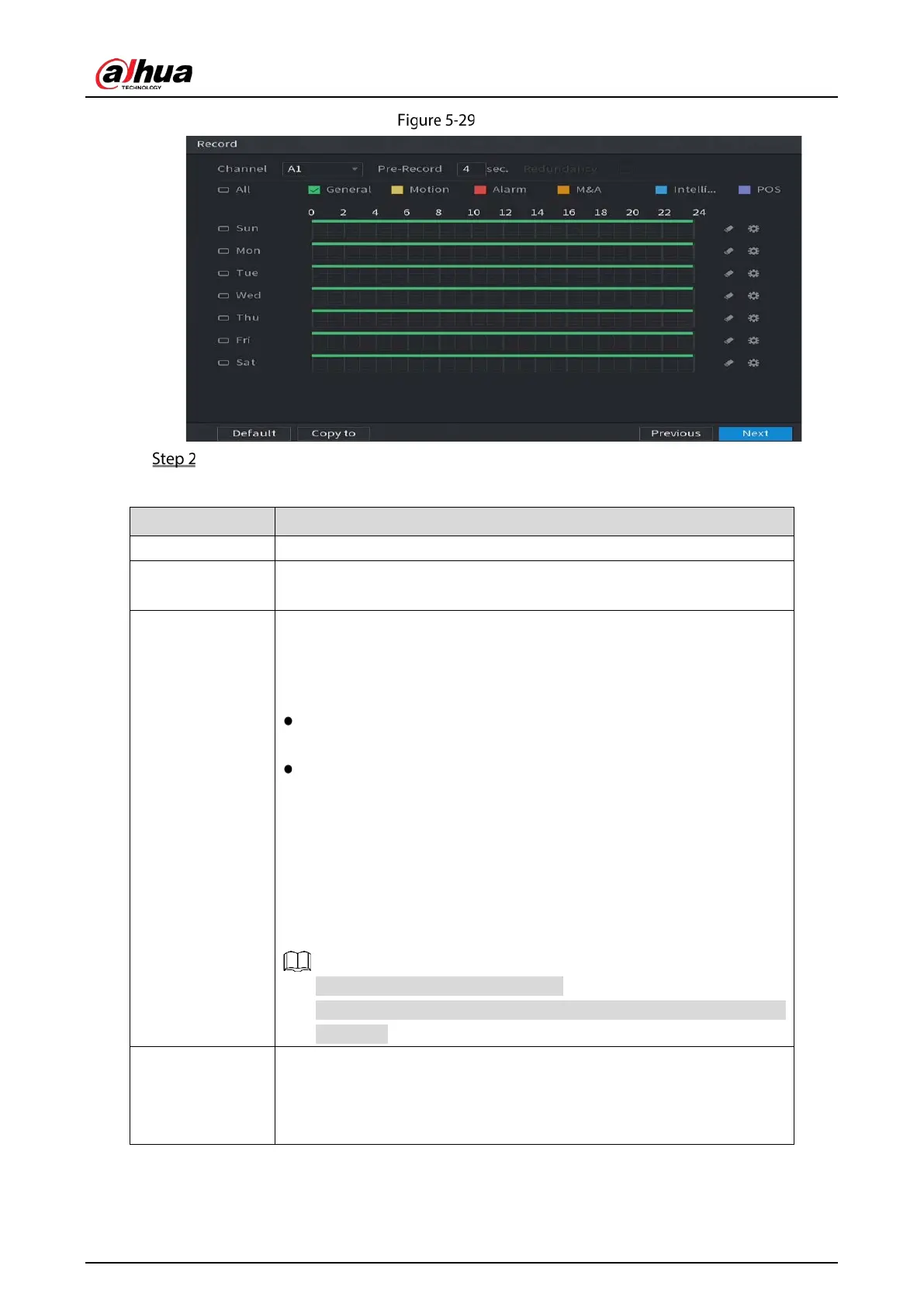

Record
Configure the record settings parameters.
Table 5-8 Record settings
Parameter
Description
Channel In the
Channel
list, select a channel to record the video.
Pre-record
In the
Pre-record
list, enter the amount of time that you want to start the
recording in advance.
Redundancy
If there are several HDDs installed to the Device, you can set one of the
HDDs as the redundant HDD to save the recorded files into different HDDs.
In case one of the HDDs is damaged, you can find the backup in the other
HDD.
Select
Main Menu > STORAGE > Disk Manager
, and then set a HDD
as redundant HDD.
Select
Main Menu > STORAGE > Schedule > Record
, and then select
the
Redundancy
check box.
If the selected channel is not recording, the redundancy function
takes effect next time you record no matter you select the check
box or not.
If the selected channel is recording, the current recorded files will
be packed, and then start recording according to the new
schedule.
Not all models support this function.
The redundant HDD only back up the recorded videos but not
snapshots.
Event type
Select the check box of the event type which includes
General
,
Motion
(motion detect, video loss, tempering, diagnosis),
Alarm
(IoT alarms, local
alarms, alarms from alarm box, IPC external alarms, IPC Offline alarms),
M&A
,
Intelligent
(IVS events, face detection), and
POS
.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dahua Technology DH-XVR1B16H and is the answer not in the manual?

Dahua Technology DH-XVR1B16H Specifications

General IconGeneral
Aspect ratio16:9
CertificationFCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1
Product colorBlack
Rack capacity1U
Playback modesFast, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop, Zoom
Backup functionYes
Channels quantity16 channels
Multi-display modes4, 8, 9, 16
Video capturing speed60 fps
Maximum recording time1 h
Audio formats supportedAAC, G.711, PCM
Network connection typeRJ-45
Maximum video resolution3840 x 2160 pixels
Video compression formatsH.264, H.264+, H.265, H.265+
Analog signal format systemNTSC, PAL
Video capturing speed (PAL)30 fps
Playback resolutions supported3840x2160, 1920×1080, 1280×1024, 1280×720
BNC input ports16
BNC output ports1
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Number of users128 user(s)
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Supported network protocolsHTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter , DDNS, FTP, Alarm Server, P2P, IP Search
HDD interfaceSerial ATA
Maximum HDD capacity6000 GB
DC voltage12 V
Power supply typeDC
Power consumption (typical)10 W
Package weight1000 g
Storage temperature (T-T)-20 - 70 °C
Operating temperature (T-T)-10 - 45 °C
Storage relative humidity (H-H)0 - 90 %
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Depth236 mm
Width260 mm
Height48 mm
Weight860 g
