Dahua 6064 SERIES User Manual

13
Shuttle(outer
ring)
In real-time monitor mode it works as left/right direction key.
Playback mode, counter clockwise to forward and clock wise to
backward.
Jog(inner dial)
Up/down direction key.
Playback mode, turn the inner dial to realized frame by frame
playback. (Only applies to some special versions.)
USB port
To connect USB storage device, USB mouse and etc.
Channel indicator
light
1-16
It becomes on when system is recording.
IR Receiver
IR
It is to receive the signal from the remote control.
Power indicator
light
POWER
Power indicator light.
Remote control
indicator light
ACT
Remote control indicator light.
Status indicator
light
STATUS
If there is Fn indicator light, current status indicator light is null.
HDD abnormal
indicator light
HDD
The indicator light is on when there is no HDD, HDD error
occurred or HDD capacity is below specified threshold value.
2.1.3 NVR 724 Series

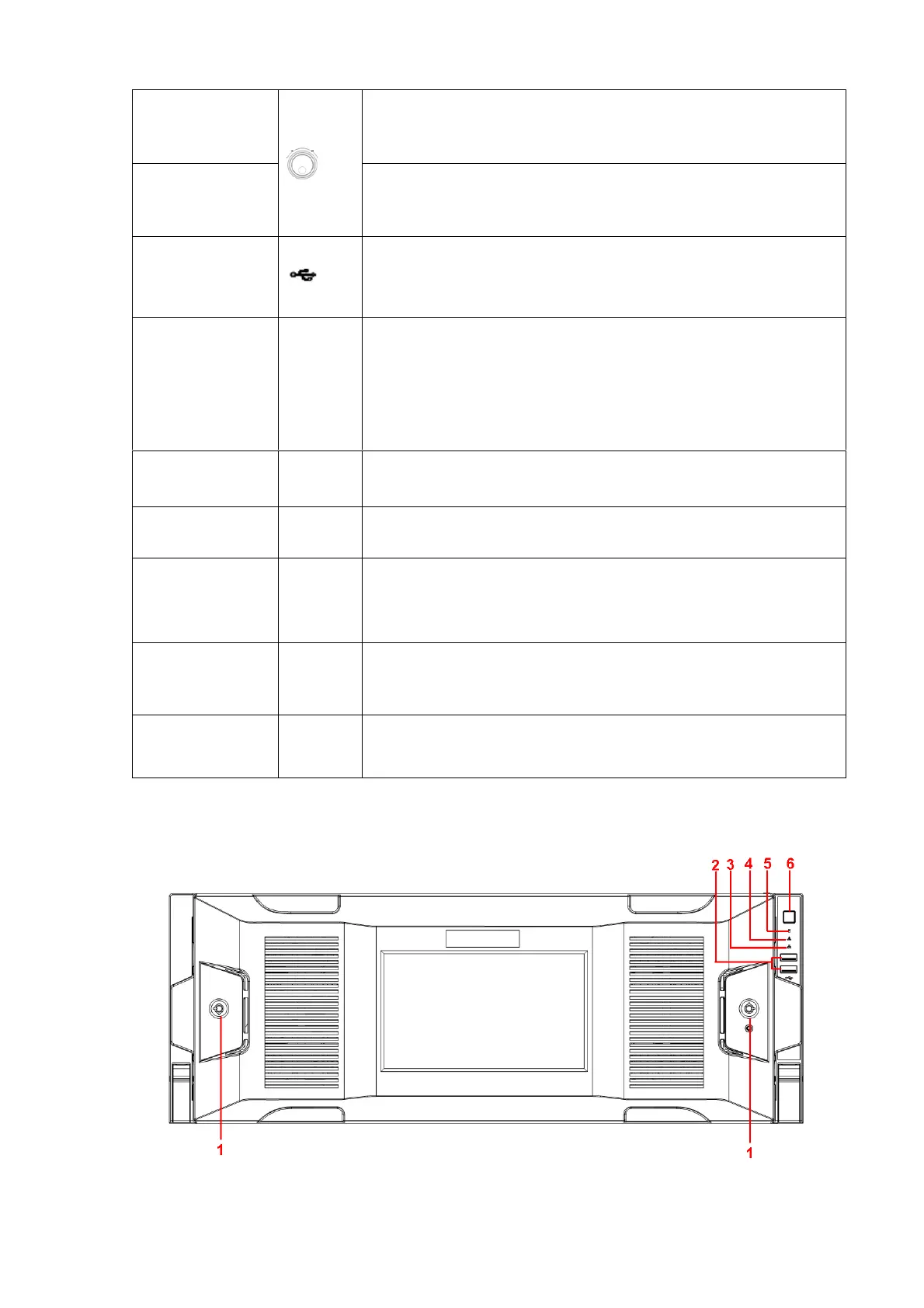

The front panel is shown as in Figure 2-5.
Figure 2-5
