53
button becomes hidden.

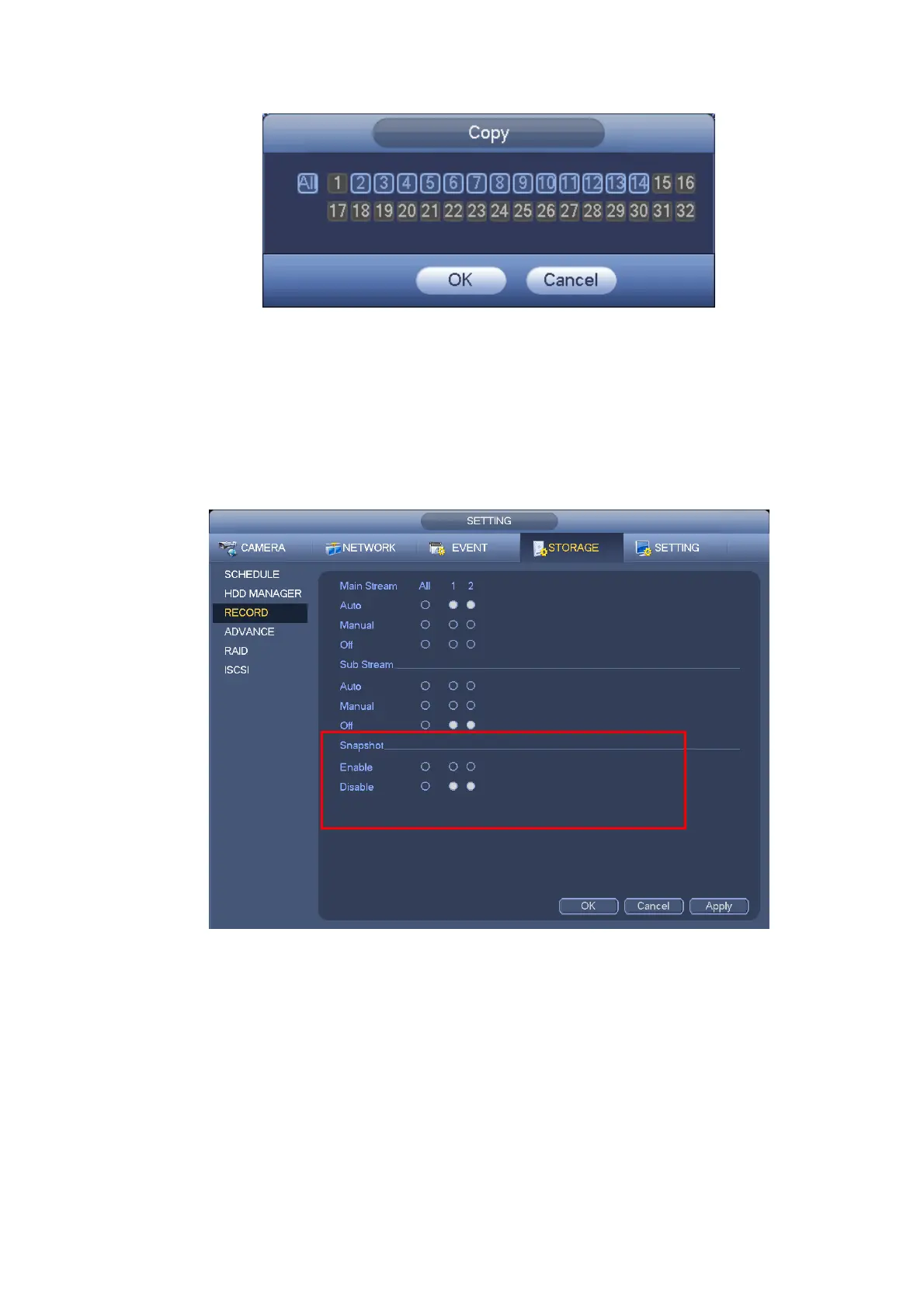

Figure 3-47
Click OK button to save current setup.
3.7.2.2 Schedule Snapshot
From Main menu->Setting->Storage->Record or on the preview interface, right click mouse and then
select record item, you can see Figure 3-48.
Select snapshot channel and enable snapshot function. Click Save button.
Figure 3-48
From Main menu->Setting->Camera->Encode->Snapshot, you can go to snapshot interface. See Figure
3-49.
Select the snapshot channel from the dropdown list and then select snapshot mode as Timing (Schedule)
from the dropdown list and then set picture size, quality and snapshot frequency.
