Figure 2-9

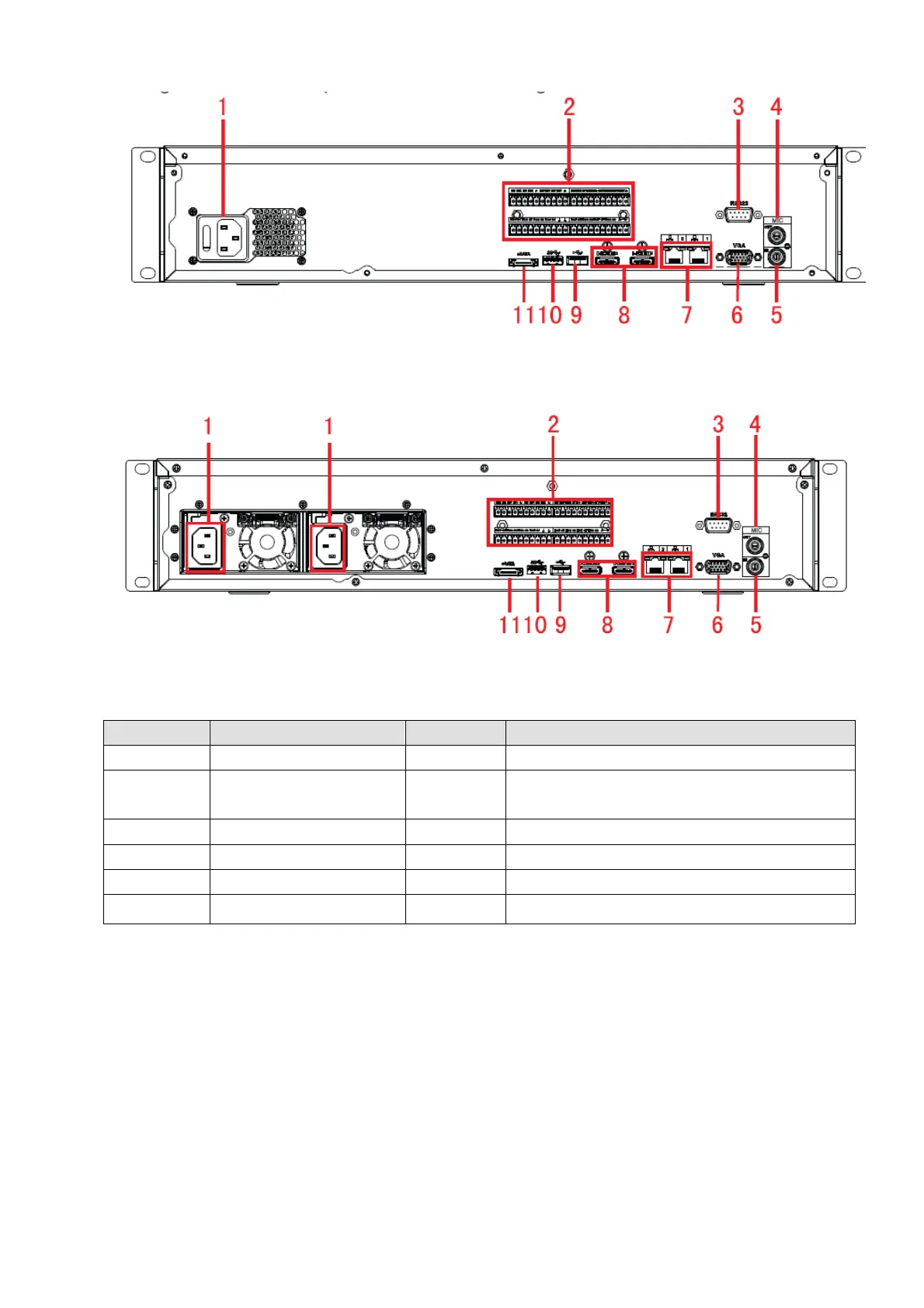

The NVR608 redundant power series rear panel is shown as in Figure 2-10.
Figure 2-10
Please refer to the following sheet for detailed information.
SN
Function
SN
Function
1
Power socket
7
Ethernet port
2
Alarm input, alarm
output, RS485 port.
8
HDMI port
3
RS232 port
9
USB 2.0 port
4
Audio output
10
USB 3.0 port
5
Audio input
11
eSATA port
6
VGA port
2.2.3 NVR 724 Series
The general rear panel is shown as in Figure 2-11.
