Dahua HCVR5104C Series User Manual

155
Figure 2-29

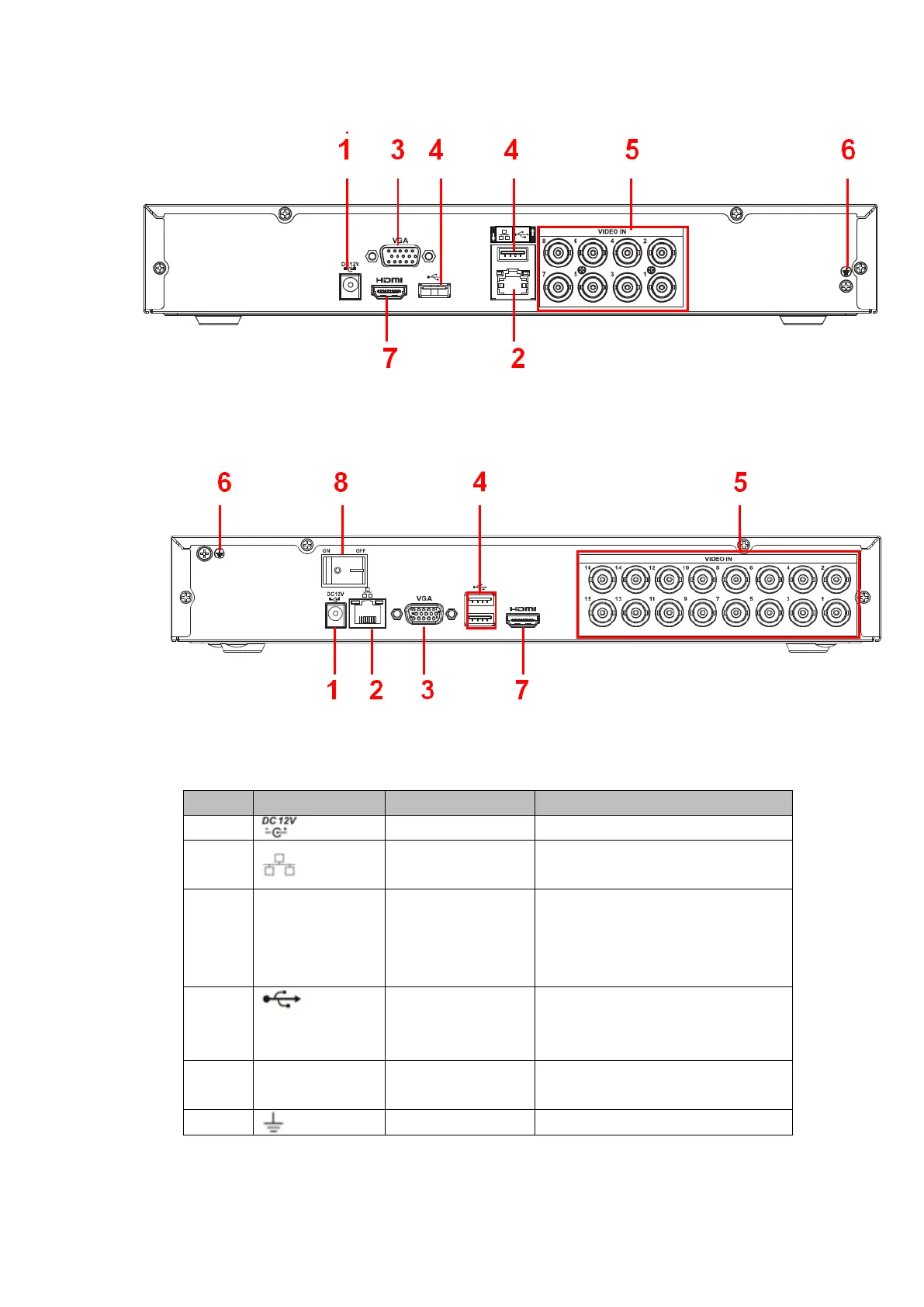

The HCVR5116HC-V2 series rear panel is shown as below. See Figure 2-30.
Figure 2-30
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
Power input port
Input 12V DC.
2
Network port
100M Ethernet port
3
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can connect
to the monitor to view ananlog
video output.
4
USB2.0 port
Connect to USB storage device,
mouse, burning DVD-ROM and
etc.
5
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
6
GND
Ground end
