HDCVI Series DVR User’s Manual
Please note multiple cast function applies to special series only.
4.10.2.13 Register
This function allows the device to auto register to the proxy you specified. In this way, you can use the
client-end to access the DVR and etc via the proxy. Here the proxy has a switch function. In the network
service, device supports the server address of IPv4 or domain.
Please follow the steps listed below to use this function.
Please set proxy server address, port, and sub-device name at the device-end. Please enable the auto
register function, the device can auto register to the proxy server.

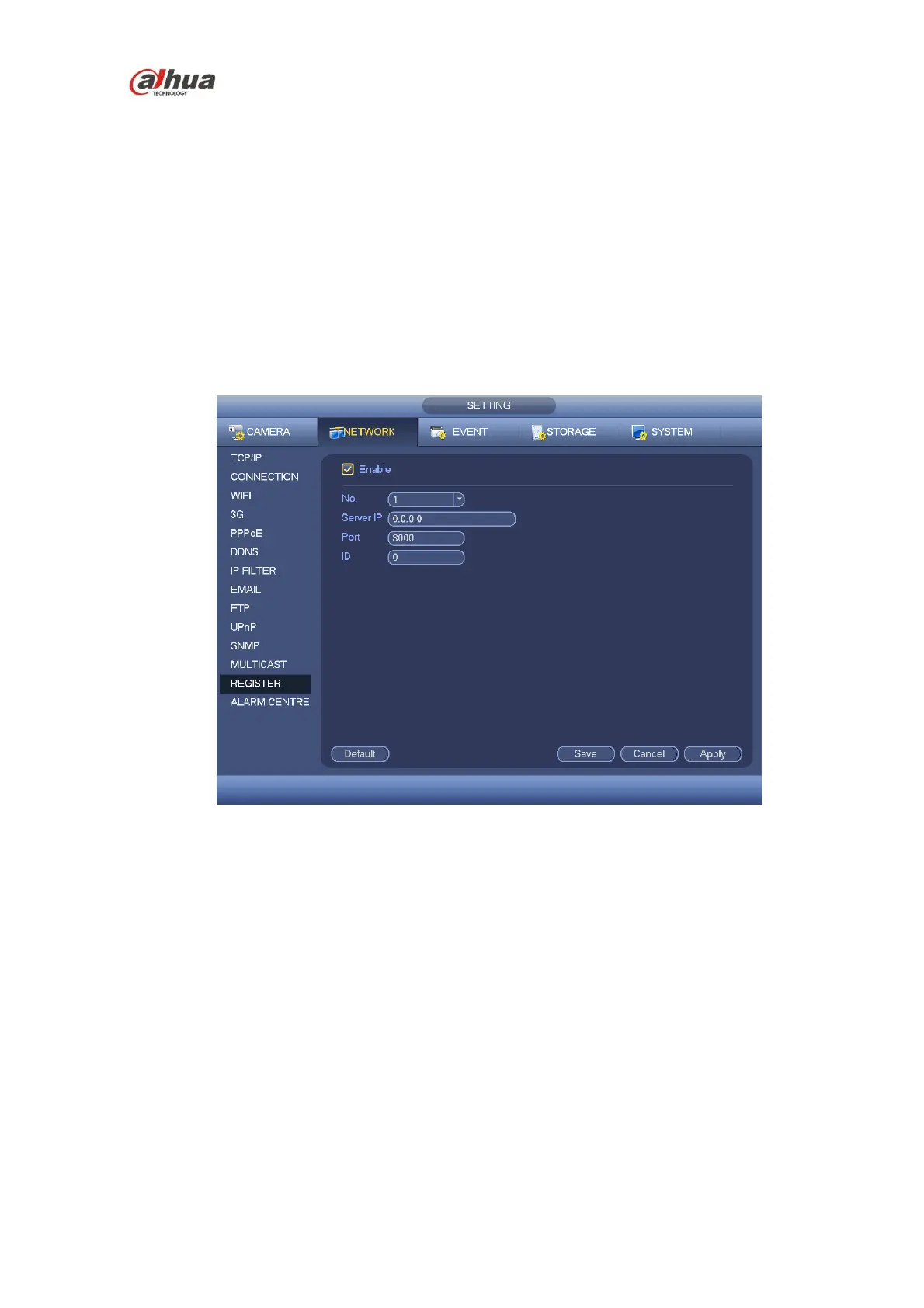

1) The setup interface is shown as in Figure 4-78.
Important
Do not input network default port such as TCP port number.
Figure 4-78
2) The proxy server software developed from the SDK. Please open the software and input the global
setup. Please make sure the auto connection port here is the same as the port you set in the previous
step.
3) Now you can add device. Please do not input default port number such as the TCP port in the
mapping port number. The device ID here shall be the same with the ID you input in Figure 4-78. Click
Add button to complete the setup.
4) Now you can boot up the proxy server. When you see the network status is Y, it means your
registration is OK. You can view the proxy server when the device is online.
Important
The server IP address can also be domain. But you need to register a domain name before you run
proxy device server.
4.10.2.14 Alarm Centre
This interface is reserved for you to develop. See Figure 4-79.
