5.8.5.3 PTZ

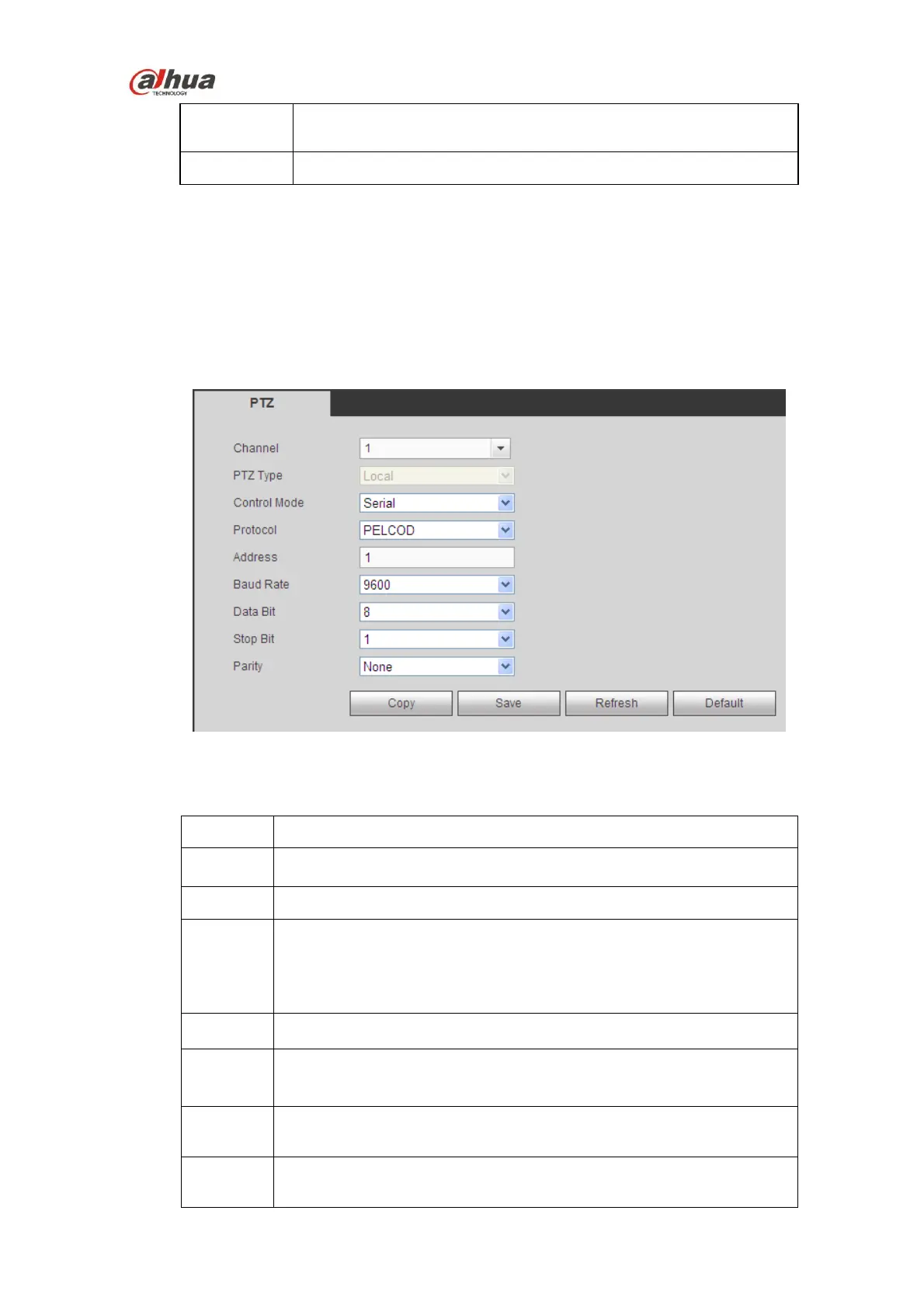

The PTZ interface is shown as in Figure 5-74.
Before setup, please check the following connections are right:
PTZ and decoder connection is right. Decoder address setup is right.
Decoder A (B) line connects with DVR A (B) line.
Click Save button after you complete setup, you can go back to the monitor interface to control speed
dome.
Figure 5-74
Please refer to the following sheet for detailed information.
Select speed dome connected channel.
There are two options: local/remote.
You can select control mode from the dropdown list. There are two
options: Serial/HDCVI. For HDCVI series product, please select
HDCVI. The control signal is sent to the PTZ via the coaxial cable. For
the serial mode, the control signal is sent to the PTZ via the RS485
port.
Please select corresponding protocol from the dropdown list.
Set corresponding dome address. Default value is 1. Please note
your setup here shall comply with your dome address; otherwise
you can not control the speed dome.
Select the dome baud rate. Default setup is 9600.
Default setup is 8. Please set according to the speed dome dial switch
setup.
