358
For the local-end, this function supports one-window display and playback only.
This function is for the cashier of the supermarket and etc. The device can get the information from
the POS and then overlay the txt information on the video.

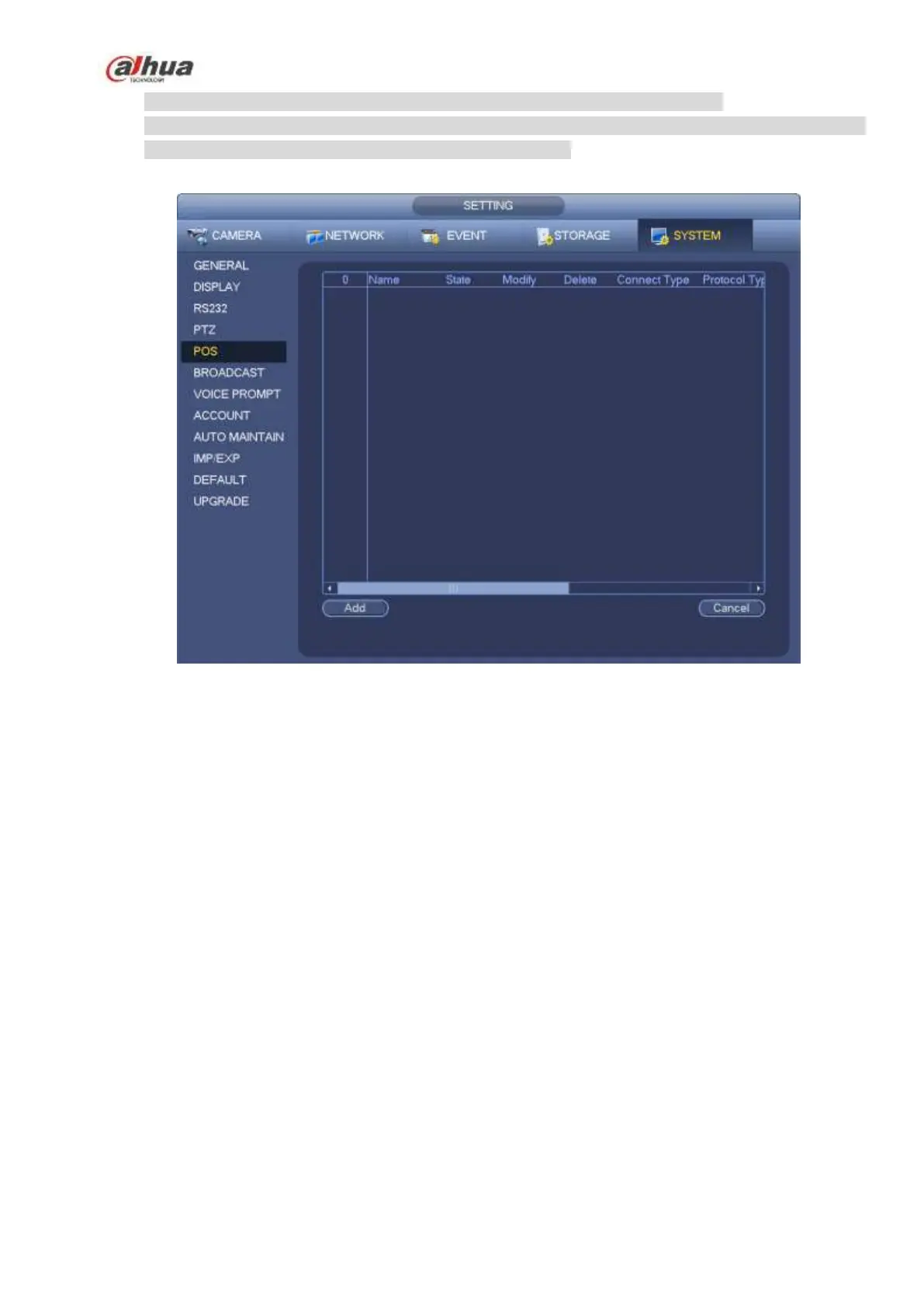

Step 1 From main menu->Setting->System->POS, the interface is shown as below. See Figure 4-221.
Figure 4-221
Step 2 Click Add button, the interface is shown as below. See Figure 4-222.
Step 3 Set parameters.
Enable: Check the box to enable POS function.
Name: Input POS name. System max supports 63 English letters.
Connection type: This is for net mode only. Click Setup button, you can set source IP (POS
IP address), port is the POS port. Destination IP is the NVR default Ethernet card IP, port is the
POS port (read-only). See Figure 4-223.
Network time out: If there is a network problem, NVR can wait for the specified time you set
here to send out the POS information. Once the network time is out, NVR only send out current
valid POS information when then network resumes normal.
Time display: It is to set the POS information displayed time on the video. If you set 5
seconds, then the POS information appears after 5 seconds display.
Channel Set: Click it to go to Figure 2-18. Select a channel you want to overlay POS
information and then click Save button
