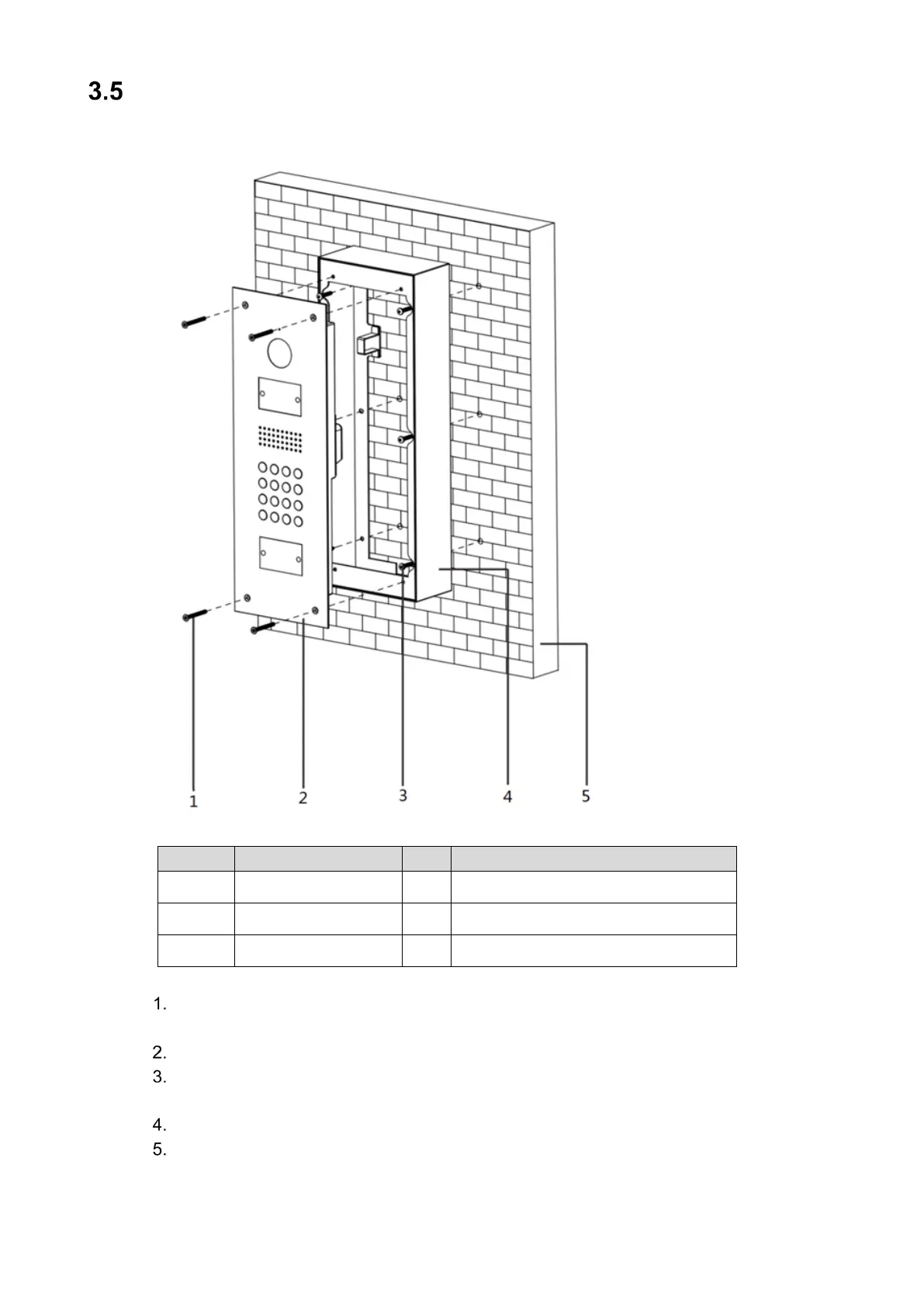

Installing the VTO1210C-X-S
3.5.1 Wall Mount
Ref
Name
Ref
Name
1
M4 x 30 Screws 2 VTO Unit
3
ST4.2 x 25 Screws 4 Mount Box
5 Wall
Drill screw holes on the wall according to the position of the screw holes on the mounting
box, and then put the expansion tubes in the screw holes.
Fix the mounting box on the wall with the ST4.2×25 screws.
Connect the ports on the rear panel to those in the wall. Refer to Section 2.2.2 Access
Control Input and Output Port.
Fix the VTO in the mounting box with the M4×30 screws.
Put sealant between the mounting box and the wall.
