Daikin AWV024 - Three or more Units, Side-By-Side

InsTallaTIon and applICaTIon ConsIderaTIons
www.DaikinApplied.com 11 IOM 1242-2 • PATHFINDER
®
MODEL AWV CHILLERS

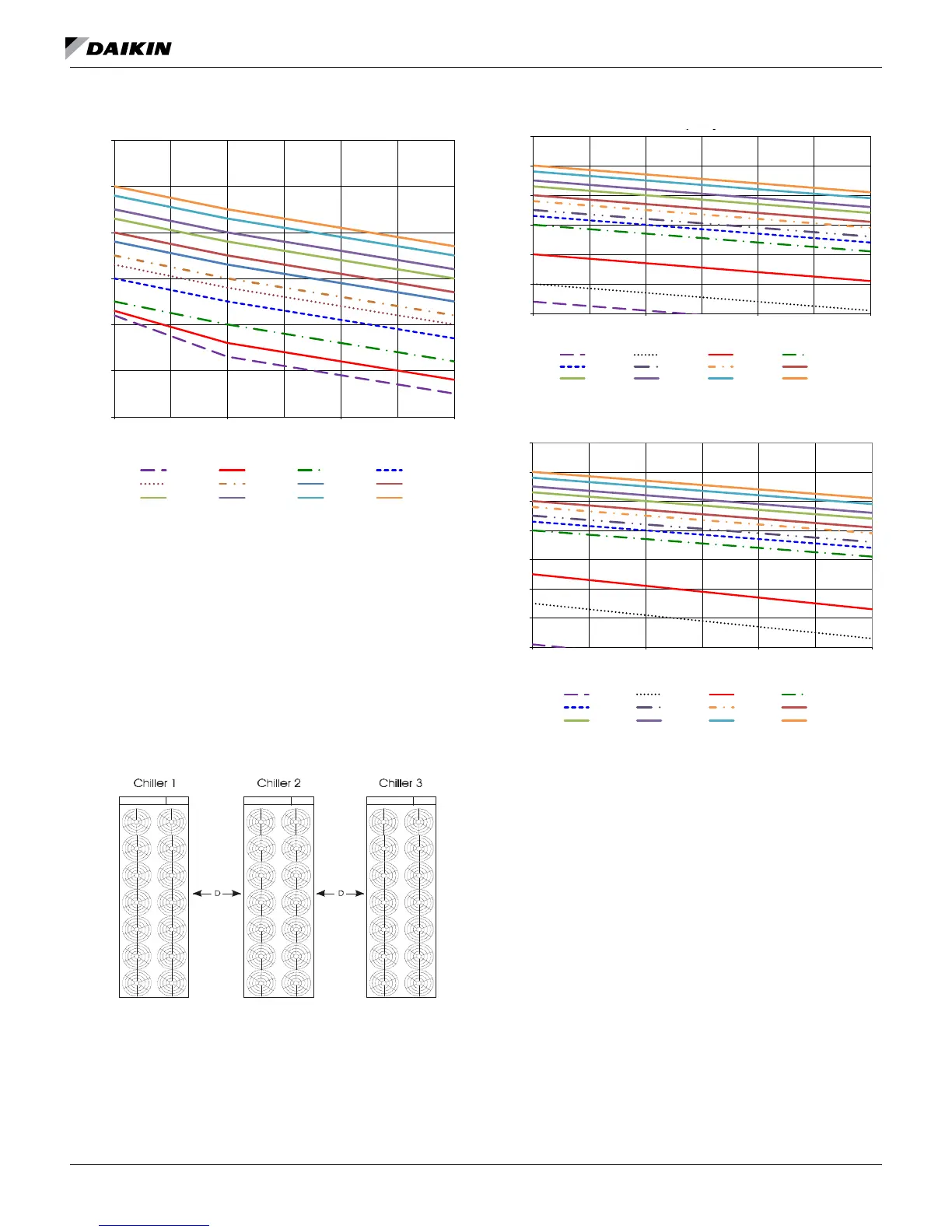

Figure 12: Case 2 - Power Increase
Case 3: Three or More Units, Side-by-Side
For all models, there must be a minimum of 8 feet between
any units placed side-by-side; however, performance may be
affected at this distance. Figure 14 and Figure 15 depict Case
3 performance adjustments as the distance between units
increases.
NOTE: Data in Figure 14 and Figure 15 is for the middle unit
with a unit on each side. See Case 2 adjustment
factors for the two outside units.
Figure 13: Three or More Units, Side-by-Side
Figure 14: Case 3 - Full Load Capacity Reduction
Figure 15: Case 3 - Power Increase
1.0
2.0
3.0
4.0
5.0
6.0
7.0
6 8 10 12
% Power Increase
Distance Between Units (ft)
Full Load Power Increase
AWV008 AWV010 AWV012 AWV014
AWV016 AWV018 AWV020 AWV022
AWV024 AWV026 AWV028 AWV030
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8 12 16 20
% Capacity Reduction
Distance Between Units
Full Load Capacity Reduction
AWV008 AWV010 AWV012 AWV014
AWV016 AWV018 AWV020 AWV022
AWV024 AWV026 AWV028 AWV030
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
8 12 16 20
% Power Increase
Distance Between Units (ft)
Full Load Power Increase
AWV008 AWV010 AWV012 AWV014
AWV016 AWV018 AWV020 AWV022
AWV024 AWV026 AWV028 AWV030
