MODEL AWV CHILLERS

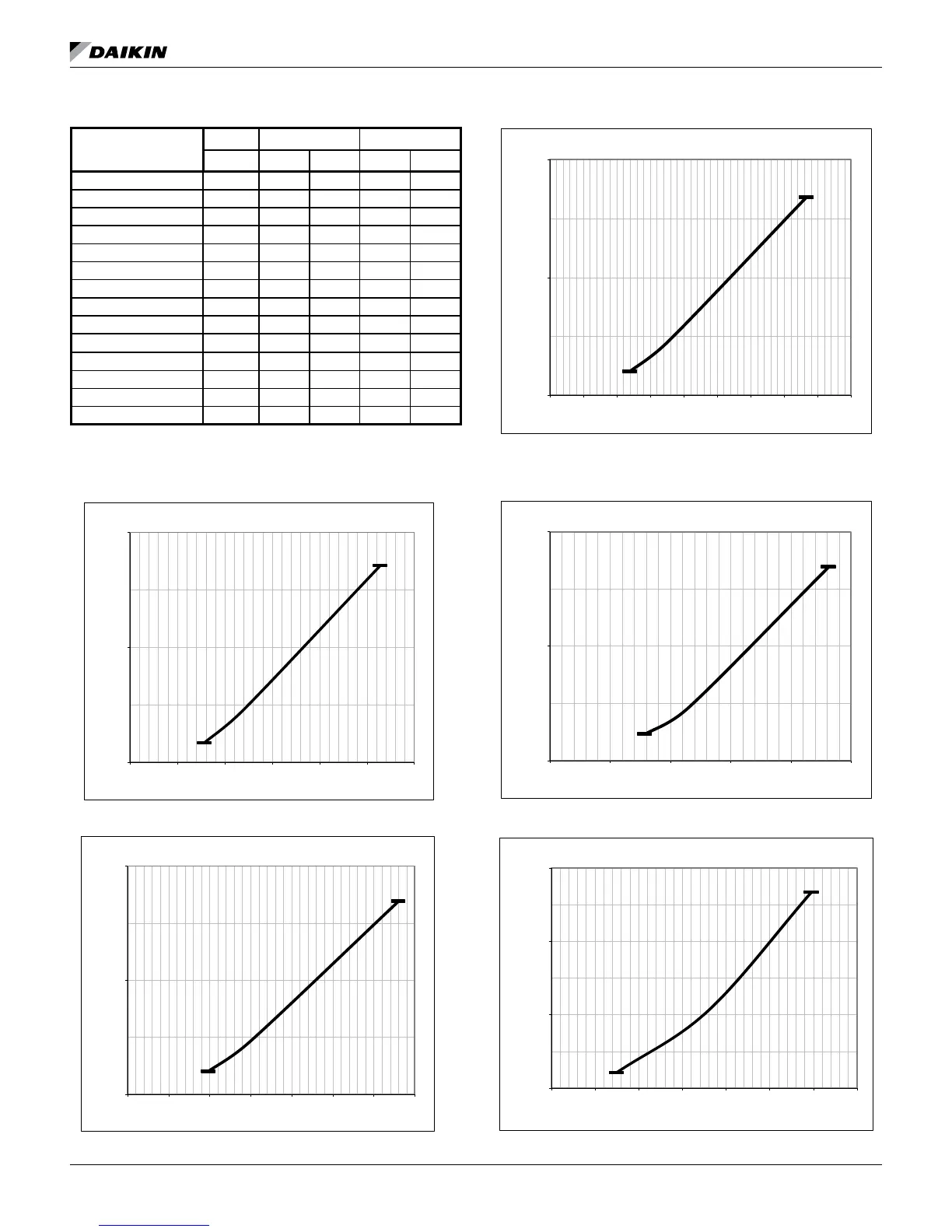

Table 13: Evaporator Flow Limits
NOTE: Flow rates and pressure drops reect water only and do not
apply to glycol solutions.
Figure 46: Model ACH1000DQ-166AH
Figure 47: Model ACH1000DQ-206AH
Figure 48: Model ACH1000DQ-250AH
Figure 49: Model ACH1000DQ-330AH
Figure 50: Model EV40271010/09
EVAP
Conn. Minimum Maximum
Size (in.) gpm ft H gpm ft H
ACH1000DQ-166AH 5 157.0 1.7 528.0 17.1
ACH1000DQ-206AH 5 197.0 2.0 660.0 16.9
ACH1000DQ-250AH 5 239.0 2.0 766.0 16.8
ACH1000DQ-330AH 5 315.0 2.3 925.0 16.9
EV40271010/09 6 148.8 2.1 595.7 26.7
EV40271111/07 6 188.0 2.0 748.0 26.0
EV40271212/07 6 188.0 2.3 748.0 28.1
EV50271414/07 8 219.3 2.4 876.6 28.4
EV50271717/05 8 290.6 2.6 1171.2 30.4
EV50391212/11
8 207.8 3.0 834.8 35.7
EV66331515/07 10 336.4 2.7 1329.7 30.4
EV66391414/11 10 260.6 3.7 1042.6 40.6
EV66391616/09 10 317.4 3.7 1261.9 41.6
EV66391717/07 10 398.5 2.7 1586.8 32.3
0
10
20
0 100 200 300 400 500 600
PD
(ft)
Flow Rate (gpm)
Evaporator ACH1000DQ-166AH
0
10
20
0 100 200 300 400 500 600 700
PD
(ft)
Flow Rate (gpm)
Evaporator ACH1000DQ-206AH
0
10
20
0 100 200 300 400 500 600 700 800 900
PD
(ft)
Flow Rate (gpm)
Evaporator ACH1000DQ-250AH
0
10
20
0 200 400 600 800 1000
PD
(ft)
Flow Rate (gpm)
Evaporator ACH1000DQ-330AH
0
10
20
30
0 100 200 300 400 500 600 700
PD
(ft)
Flow Rate (gpm)
Evaporator EV40271010/09
