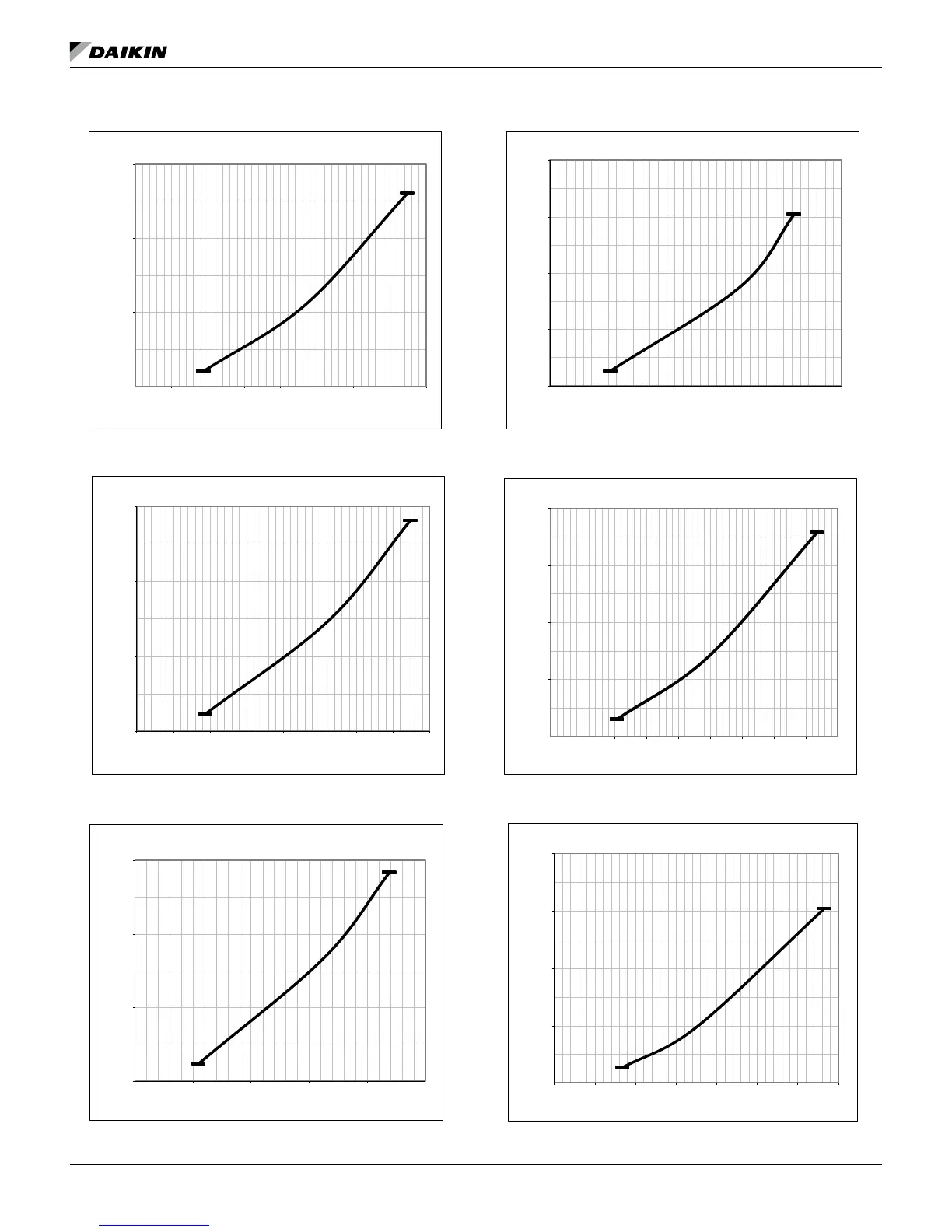

pressure drop daTa
Figure 51: Model EV40271111/07
Figure 52: Model EV40271212/07
Figure 53: Model EV50271414/07
Figure 54: Model EV50271717/05
Figure 55: Model EV50391212/11
Figure 56: Model EV66331515/07
0
10
20
30
0 100 200 300 400 500 600 700 800
PD
(ft)
Flow Rate (gpm)
Evaporator EV40271111/07
0
10
20
30
0 100 200 300 400 500 600 700 800
PD
(ft)
Flow Rate (gpm)
Evaporator EV40271212/07
0
10
20
30
0 200 400 600 800 1000
PD
(ft)
Flow Rate (gpm)
Evaporator EV50271414/07
0
10
20
30
40
0 200 400 600 800 1000 1200 1400
PD
(ft)
Flow Rate (gpm)
Evaporator EV50271717/05
0
10
20
30
40
0 100 200 300 400 500 600 700 800 900
PD
(ft)
Flow Rate (gpm)
Evaporator EV50391212/11
0
10
20
30
40
0 200 400 600 800 1000 1200 1400
PD
(ft)
Flow Rate (gpm)
Evaporator EV66331515/07
