dImensIons - remoTe evaporaTors
dIm ensI ons - re moTe eva po raTo rs
Table 10: Evaporator Data for AWV Remote Evaporator Models

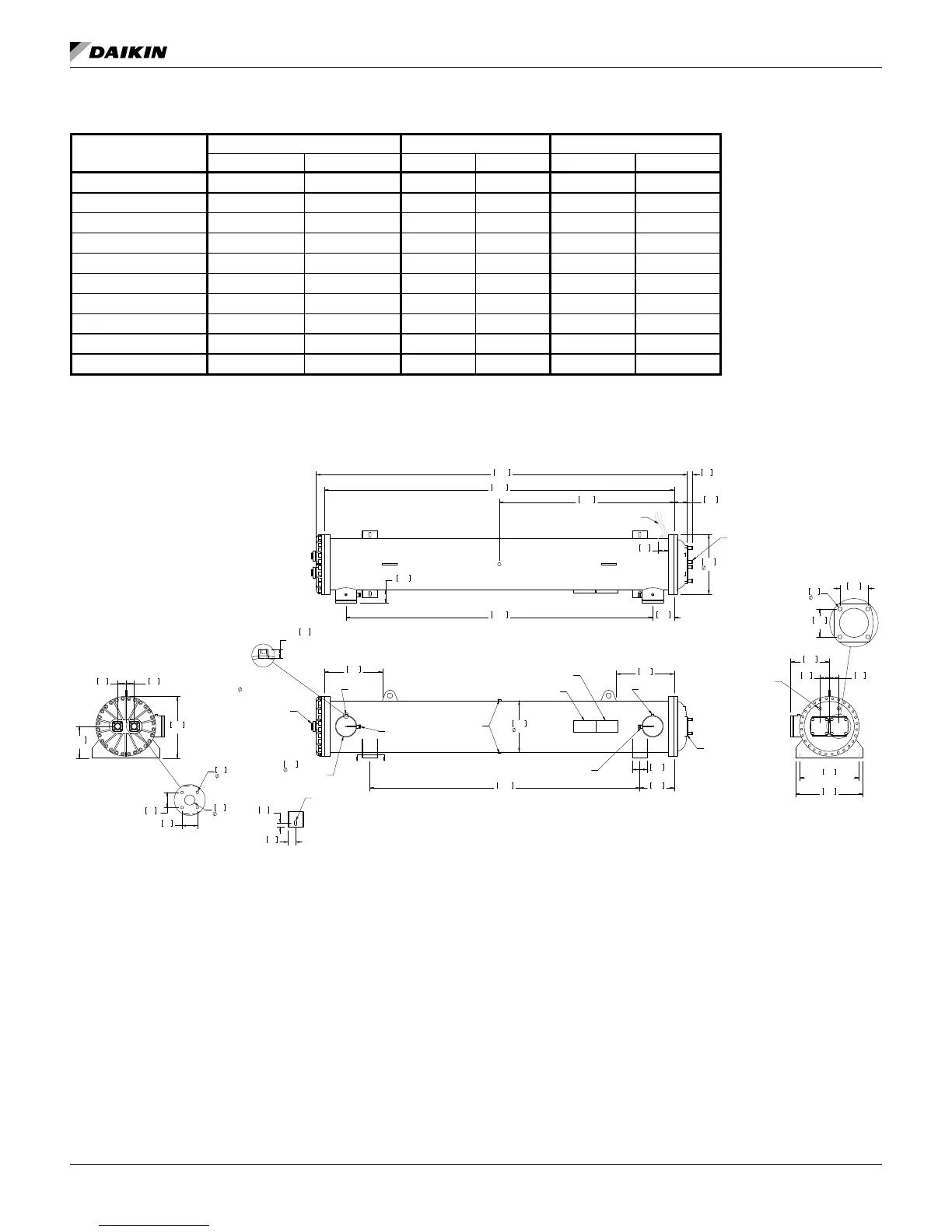

Figure 34: Evaporator Model EV4027
Evap Model
Shipping Weight Operang Weight Water Volume
(lb) (kg) (lb) (kg) (gal) (L)
EV40271010/9 1197 543 1761 799 67 255
EV40271111/7 1219 553 1773 804 66 250
EV40271212/7 1239 562 1770 803 63 240
EV50271414/7 1739 789 2631 1193 106 403
EV50271717/5 1819 825 2648 1201 99 374
EV50391212/11 2077 942 3365 1526 154 582
EV66331515/7 2593 1176 4475 2030 225 851
EV66391414/11 2875 1304 5145 2334 271 1027
EV66391616/9 2956 1341 5157 2339 263 995
EV66391717/7 2998 1360 5164 2342 259 979
18.2
FEET MOUNTING
463
270
10.6
2123
83.6
80
3.2
33
1.3
SHRADER FITTING
FOR REFRIGERANT
PRESSURE (2)
75
2.95
20.8
528
11.9
303
75
2.95
332532100
EVAPORATOR EV4027
EVAPORATOR
NAME PLATE
INLET
OUTLET
NAME PLATE
ASME/ CRN
O RING # E44130152
FLANGE # E44060007
QTY 2
1/2" NPTF
PART # E44070016
SENSOR WELL
LIQUID FERRULE
1.625 IDS
(SEE NOTE 9)
QTY 2
1/4" NPTF
# E44130201
1/4" NPTF
SUCTION O RING
NAME PLATE
ASME/CRN
1/2" NPTF
3000# HALF CPLG.
QTY 2
EVAPORATOR
NAME PLATE
455
17.9
4.7
120
16.0
406
17.9
455
168
6.63 PIPE
GROOVED
QTY 2
C C
66
2.58
9.8
250
19.1
485
66
2.58
WIRES
HEATER
BLOCK-OFF
WITH PLATES,
SPACERS, AND BOLTS
(M14 X 1.50 X 50MM LONG)
42
1.6 REF
18.5
470
3.9
100
6.7
169
95.0
2412
54.1
1375
108.3
2750
4.1
103
2918
114.9
18
.7
ALL Ø0.25
COUPLINGS
SECTION C-C
18MM X 43MM
SLOTS
(QTY. 4)
60
2.4
60
2.36
1.57
40
.39
10
60
2.36
110
4.33
.63
16
110
4.33
