InsTallaTIon and applICaTIon ConsIderaTIons
www.DaikinApplied.com 9 IOM 1242-2 • PATHFINDER
®
MODEL AWV CHILLERS
Case 1: Building or Wall on One Side of Unit
For all models, maintain a 4 foot minimum from a wall of any
height; however, performance may be affected at this distance
due to air recirculation and elevated condenser pressure.
Assuming all service clearance requirements are met, Figure 5
to Figure 9 depict Case 1 performance adjustments as the wall
height and distance increases.

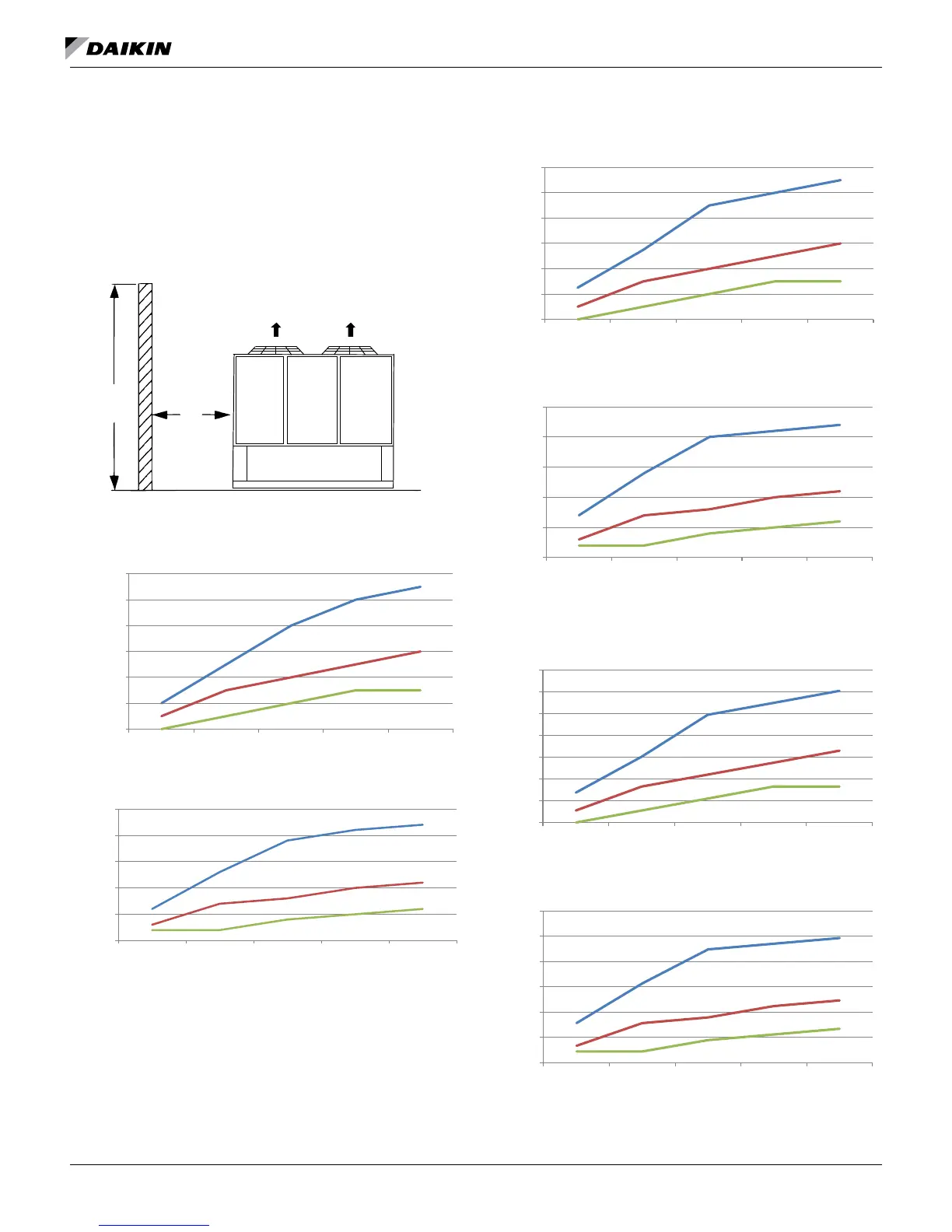

Figure 4: Building or Wall on One Side of Unit
Figure 5: Case 1 for AWV 008-010 Models
Figure 6: Case 1 for AWV012-014 Models
Figure 7: Case 1 for AWV016-018
Height
of
Wall
Distance
Between
Wall
and
Unit
Control Panel
4 Feet
5 Feet
6 Feet
0.0%
0.2%
0.4%
0.6%
0.8%
1.0%
1.2%
8 12 16 20 24
% Capacity Reduction
Height of Wall - Feet
% Full Load Capacity Reduction (AWV008-010)
4 Feet
5 Feet
6 Feet
0.0%
0.5%
1.0%
1.5%
2.0%
2.5%
8 12 16 20 24
% Power Increase
Height of Wall - Feet
% Full Load Power Increase (AWV008-010)
4 Feet
5 Feet
6 Feet
0.0%
0.2%
0.4%
0.6%
0.8%
1.0%
1.2%
8 12 16 20 24
% Capacity Reduction
Height of Wall - Feet
% Full Load Capacity Reduction (AWV012-014)
4 Feet
5 Feet
6 Feet
0.0%
0.5%
1.0%
1.5%
2.0%
2.5%
8 12 16 20 24
% Power Increase
Height of Wall - Feet
% Full Load Power Increase (AWV012-014)
4 Feet
5 Feet
6 Feet
0.0%
0.2%
0.4%
0.6%
0.8%
1.0%
1.2%
1.4%
8 12 16 20 24
% Capacity Reduction
Height of Wall - Feet
% Full Load Capacity Reduction (AWV016-018)
4 Feet
5 Feet
6 Feet
0.0%
0.5%
1.0%
1.5%
2.0%
2.5%
3.0%
8 12 16 20 24
% Power Increase
Height of Wall - Feet
% Full Load Power Increase (AWV016-018)
