InsTallaTIon and applICaTIon ConsIderaTIons
www.DaikinApplied.com 13 IOM 1242-2 • PATHFINDER
®
MODEL AWV CHILLERS

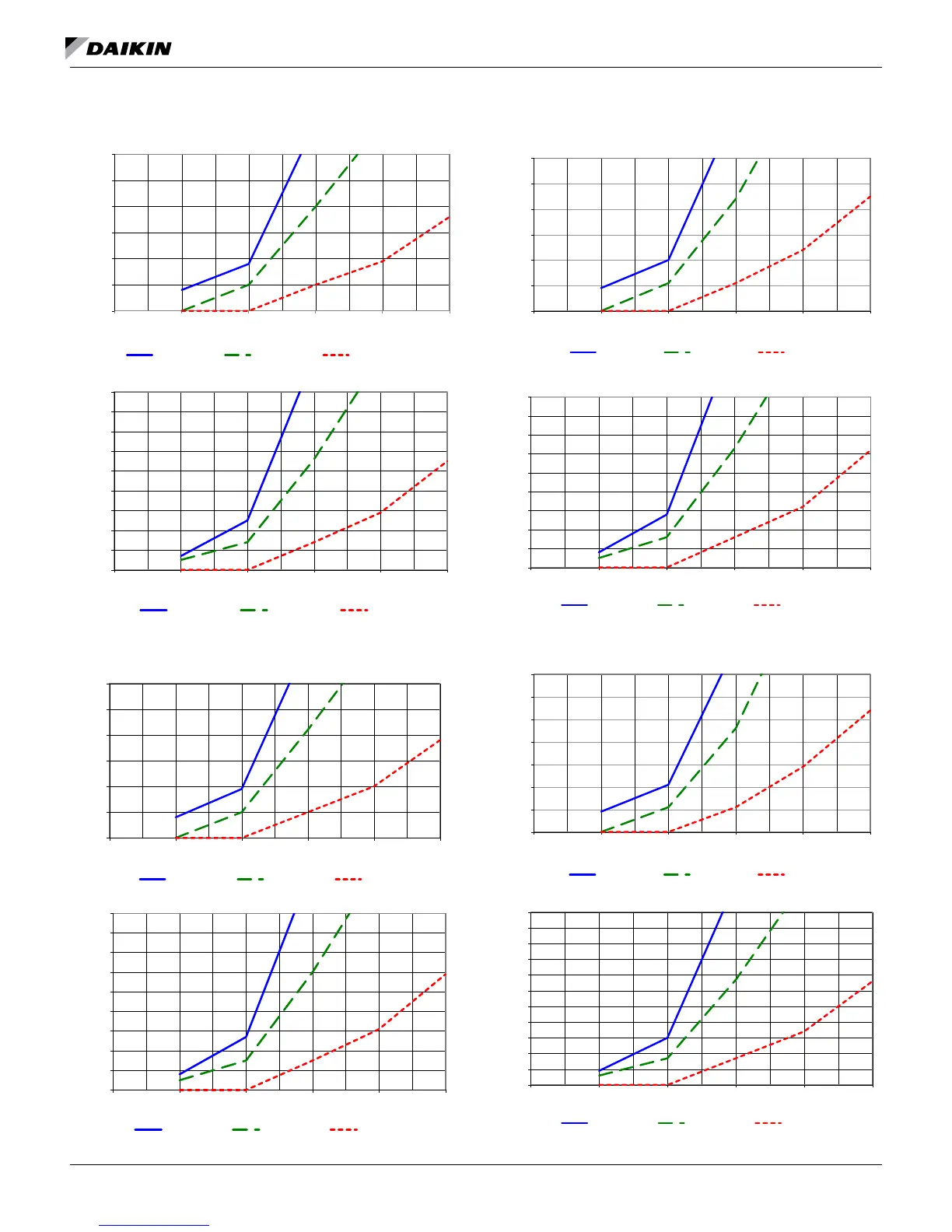

Figure 20: Case 5 for AWV012-014
Figure 21: Case 5 for AWV016-018
Figure 22: Case 5 for AWV020-024
Figure 23: Case 5 for AWV026-030
0.0
1.0
2.0
3.0
4.0
5.0
6.0
0 8 10 12 13 14
% Capacity Reduction
Depth of Pit / Wall Height (ft)
Full Load Capacity Reduction (AWV012-014)
Distance = 6 ft Distance = 8 ft Distance = 10 ft
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
0 8 10 12 13 14
% Power Increase
Depth of Pit / Wall Height (ft)
Power Increase (AWV012-014)
Distance = 6 ft Distance = 8 ft Distance = 10 ft
0.0
1.0
2.0
3.0
4.0
5.0
6.0
0 8 10 12 13 14
% Capacity Reduction
Depth of Pit / Wall Height ft)
Full Load Capacity Reduction (AWV016-018)
Distance = 6 ft Distance = 8 ft Distance = 10 ft
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
0 8 10 12 13 14
% Power Increase
Depth of Pit / Wall Height (ft)
Power Increase (AWV016-018)
Distance = 6 ft Distance = 8 ft Distance = 10 ft
0.0
1.0
2.0
3.0
4.0
5.0
6.0
0 8 10 12 13 14
% Capacity Reduction
Depth of Pit / Wall Height (ft)
Full Load Capacity Reduction (AWV020-024)
Distance = 6 ft Distance = 8 ft Distance = 10 ft
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
0 8 10 12 13 14
% Power Increase
Depth of Pit / Wall Height (ft)
Power Increase (AWV020-024)
Distance = 6 ft Distance = 8 ft Distance = 10 ft
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
0 8 10 12 13 14
% Capacity Reduction
Depth of Pit / Wall Height (ft)
Full Load Capacity Reduction (AWV026-030)
Distance = 6 ft Distance = 8 ft Distance = 10 ft
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
10.0
11.0
0 8 10 12 13 14
% Power Increase
Depth of Pit / Wall Height (ft)
Power Increase (AWV026-030)
Distance = 6 ft Distance = 8 ft Distance = 10 ft
