InsTallaTIon and applICaTIon ConsIderaTIons
www.DaikinApplied.com 23 IOM 1242-2 • PATHFINDER
®
MODEL AWV CHILLERS

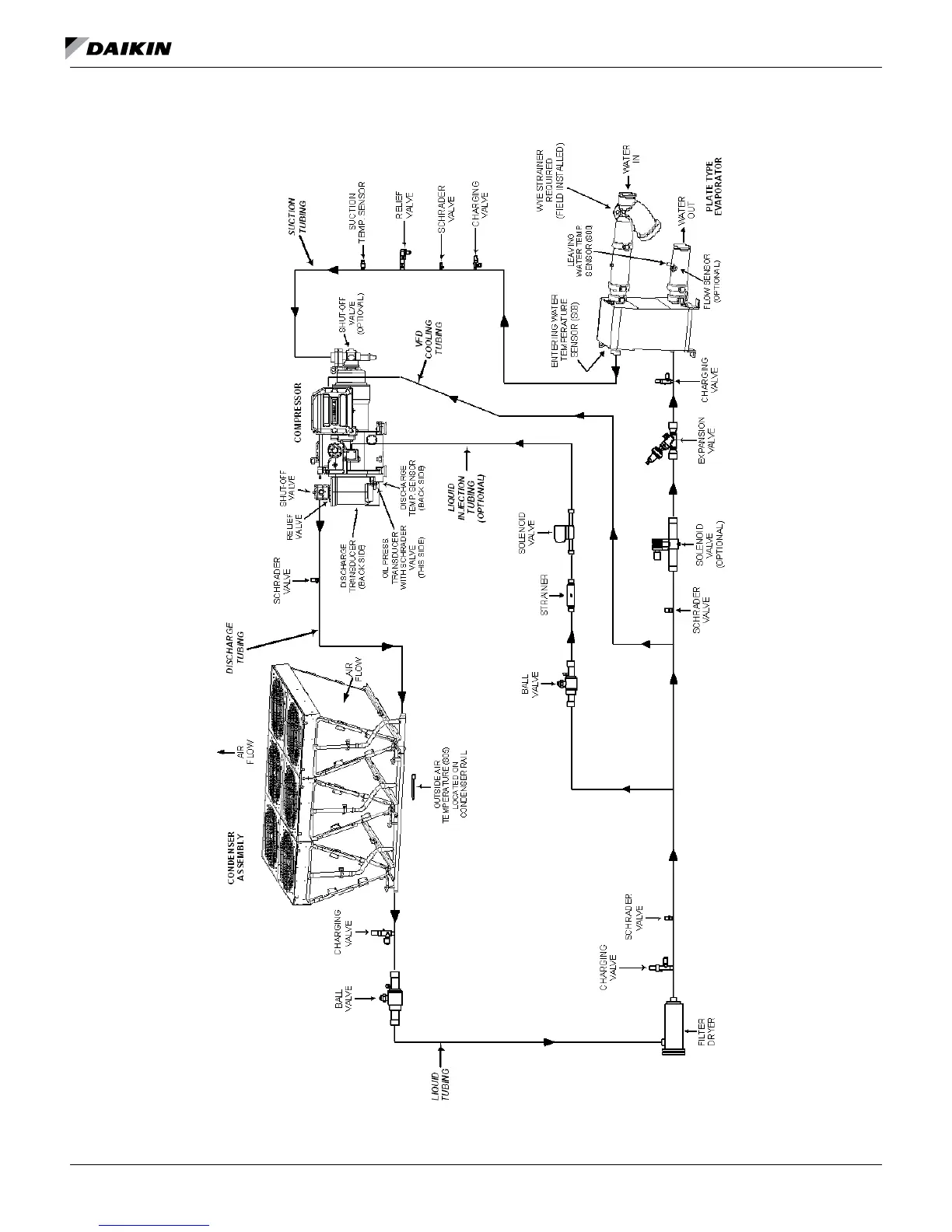

Figure 31: Representative Refrigerant Diagram - Packaged Unit With Braze Plate Evaporator Without Optional Economizer
NOTE:
PIPING SHOWN FOR ONE SYSTEM OF UNIT. UNIT HAS TWO INDEPENDANT SYSTEMS.
PACKAGE CHILLER W/O ECONOMIZER
