12 Installation Manual 3P581074-2D
DGE601A52
English
Wiring to each terminal
When wiring to [plus ADP IF], [DIII], and [Di 1-4], perform operations on the terminal
block and carry out the wiring as shown below.
(1) Push in the opening knob with a precision at-head screwdriver and open the
insertion port.
(2) Insert the cable into the open insertion port.
(3) Move the opening knob forward and down and insert the cable.
(4) Make sure that the connected cable has not come out.
When using stranded cable, make sure that no strands are protruding.

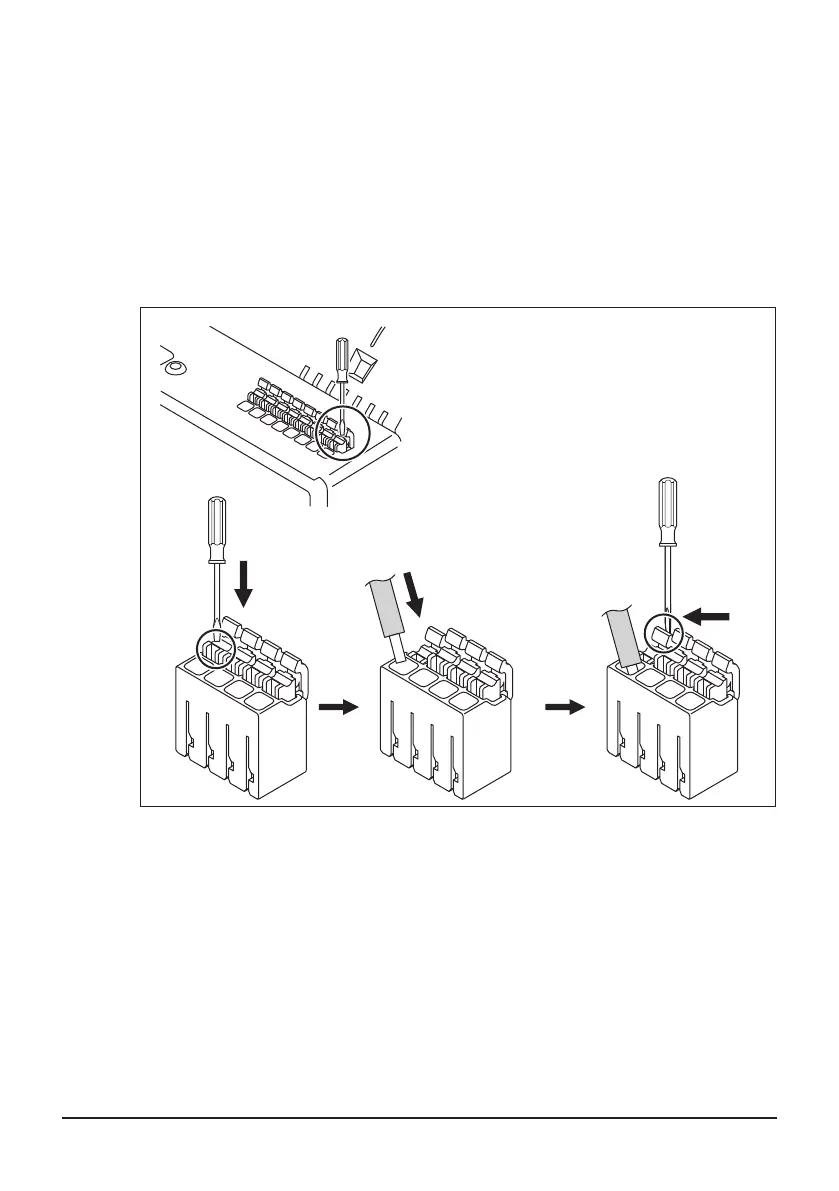

<How to wire to the terminal block>
(1)
(2)
(3)
A
A Precision at-head screwdriver
