3.4 Connecting the power supply
Connect the DGE601A52 to a power supply.
WARNING
Be sure to perform the operation during power-off conditions. Do not turn the
power supply on until all connections are made. Not doing so may cause an
electric shock.
3.4.1 Terminals location and schematic connection diagram
Connect the power supply to the three terminals, L (Live), N (Neutral), and earth.

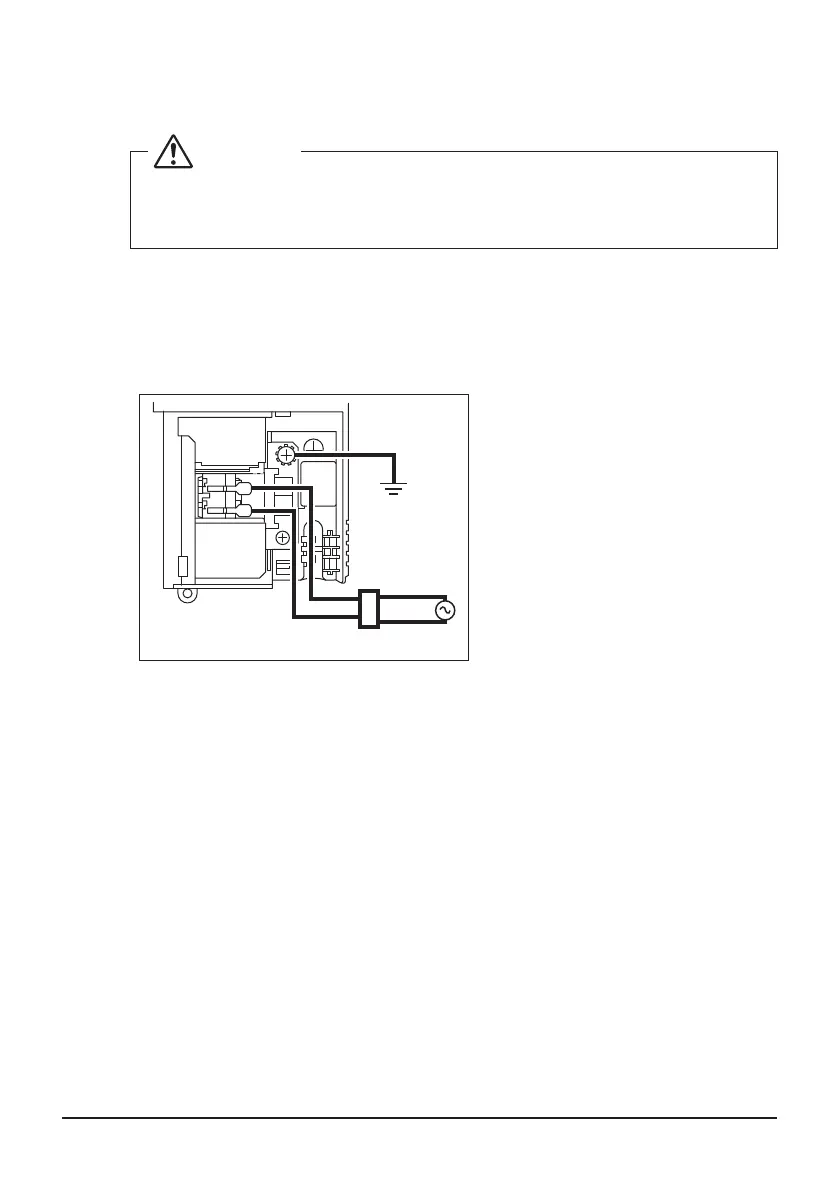

<Schematic power connection diagram>
A
B C
N
N
L
L
A Earth
B Earth leakage breaker
C Power supply 100 - 240VAC 50/60Hz
