3.3.2 Wiring specications
• Cable type: CPEV cable, FCPEV cable, CVV(S) cable
• Core thickness: CPEV cable, FCPEV cable: φ0.65 - 0.9mm
CVV(S) cable: 0.75 - 1.25mm²
• Cable length: 200 m or less

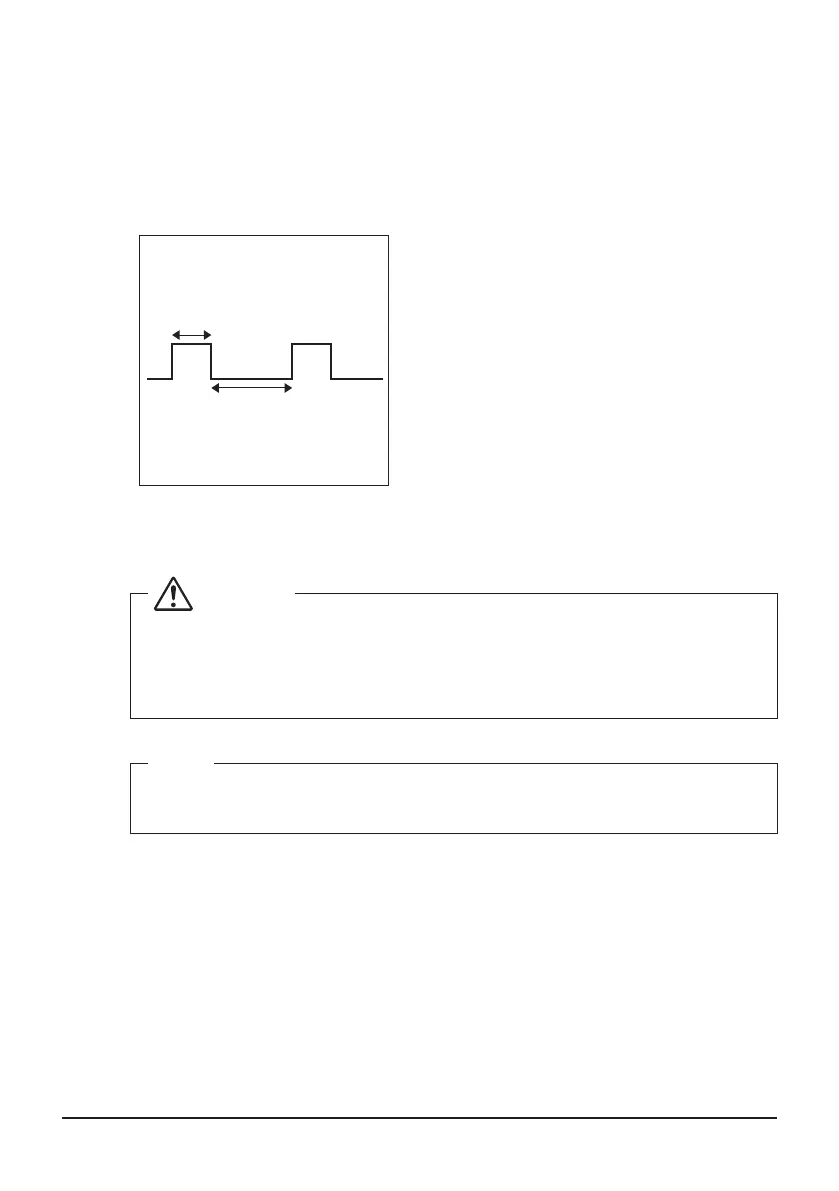

<Pulse width>
A
B
A Pulse width: 20 to 400ms
B Pulse interval: 100ms or more
CAUTION
• The contact connected to the contact input terminal must be capable of
handling 10mA at 16VDC.
• If an instantaneous contact is used for triggering an emergency stop, use
one that has an energisation time of 200ms or more.
NOTE
Once the emergency stop input signal is turned on, all air conditioners stop and do
not restart until the emergency stop input is cleared.
