Installation Manual 3P581074-2D
DGE601A52
17English
2.1.2 Removal from DIN rail
(1) While supporting the DGE601A52 with your hand, set all upper and lower DIN rail
locks to the “open” position.
(2) Remove the DGE601A52 from the DIN rail.

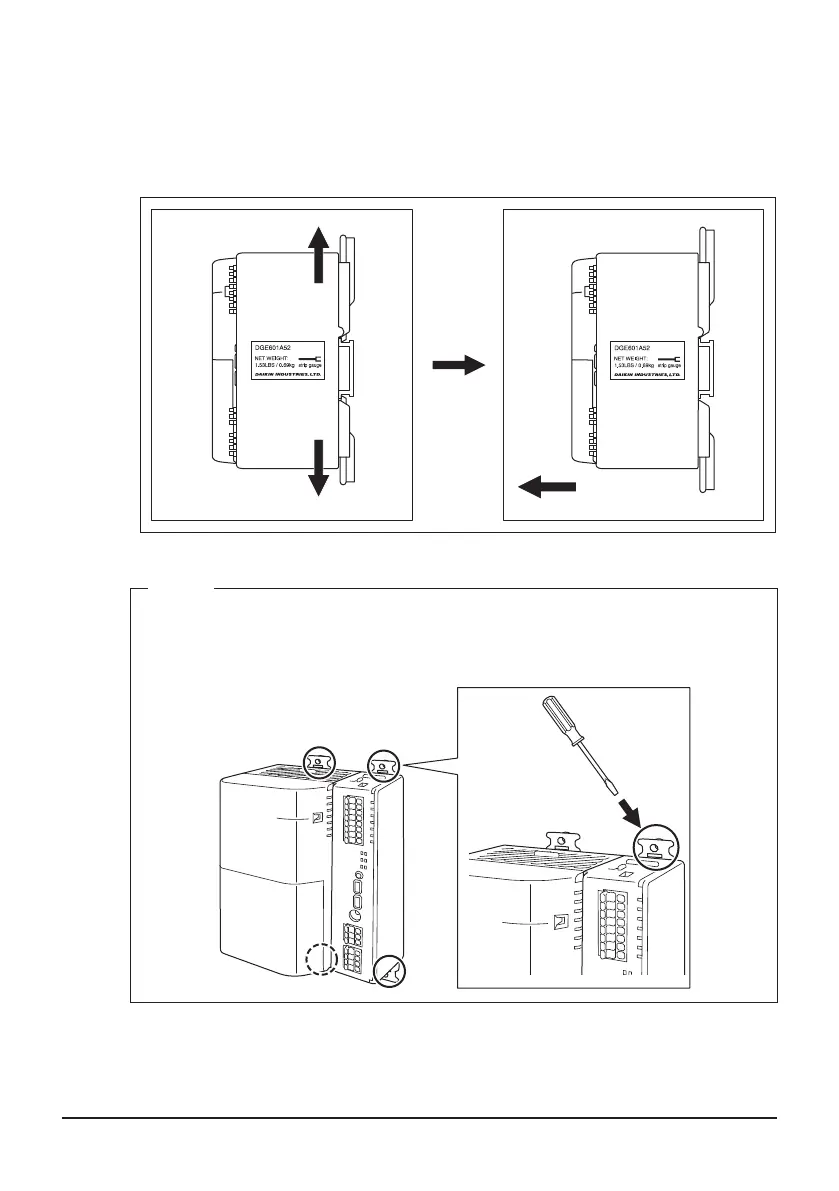

<Steps for removal from DIN rail>
(2)
(1)
(1)
NOTE
When removing from DIN rails, if the work area is narrow and you cannot operate the
DIN rail locks with your ngers, the DIN rail locks can be operated by inserting a
at-head screwdriver into the area marked with a circle.
