Daikin DGE601A52 - Screw Mounting Accessory Parts; Screw Mounting Installation Guide

16 Installation Manual 3P581074-2D
DGE601A52
English
(1) Set all upper and lower DIN rail locks to the “open” position.
(2) Press the DGE601A52 against the DIN rail.
(3) Set all upper and lower DIN rail locks to the “closed” position.

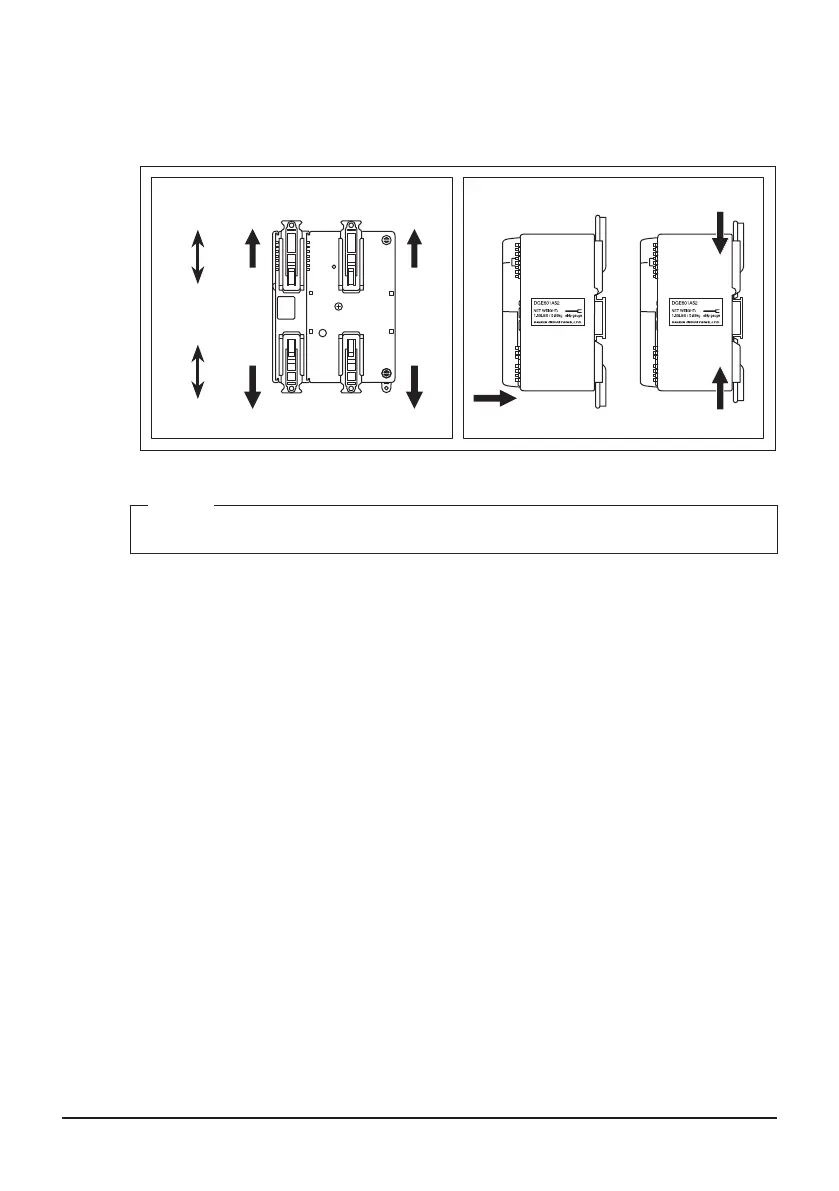

<Steps for mounting to DIN rail>
(1)
(1) (1)
(1)
(2)
(3)
(3)
“open”
“closed”
“closed”
“open”
NOTE
If you need to make the mounting stronger, use DIN rail fasteners.
