18 Installation Manual 3P581074-2D
DGE601A52
English
2.2 Screw-mounting to control enclosure
Secure to the control enclosure using the 4 supplied screws for securing the body.
When securing with screws, secure with all DIN rail locks set to the “open” position.
(For opening and closing the DIN rail locks, refer to “2.1.1 Installation procedure”.)
2.2.1 Accessory parts
To mount to the control enclosure, use the following accessory mounting parts.
• Wood screw (3mm diameter x 15mm length) for securing the body, 4pcs.
2.2.2 Installation procedure
(1) Set all DIN rail locks to the “open” position.
(2) Secure with screws through all DIN rail lock screw holes.

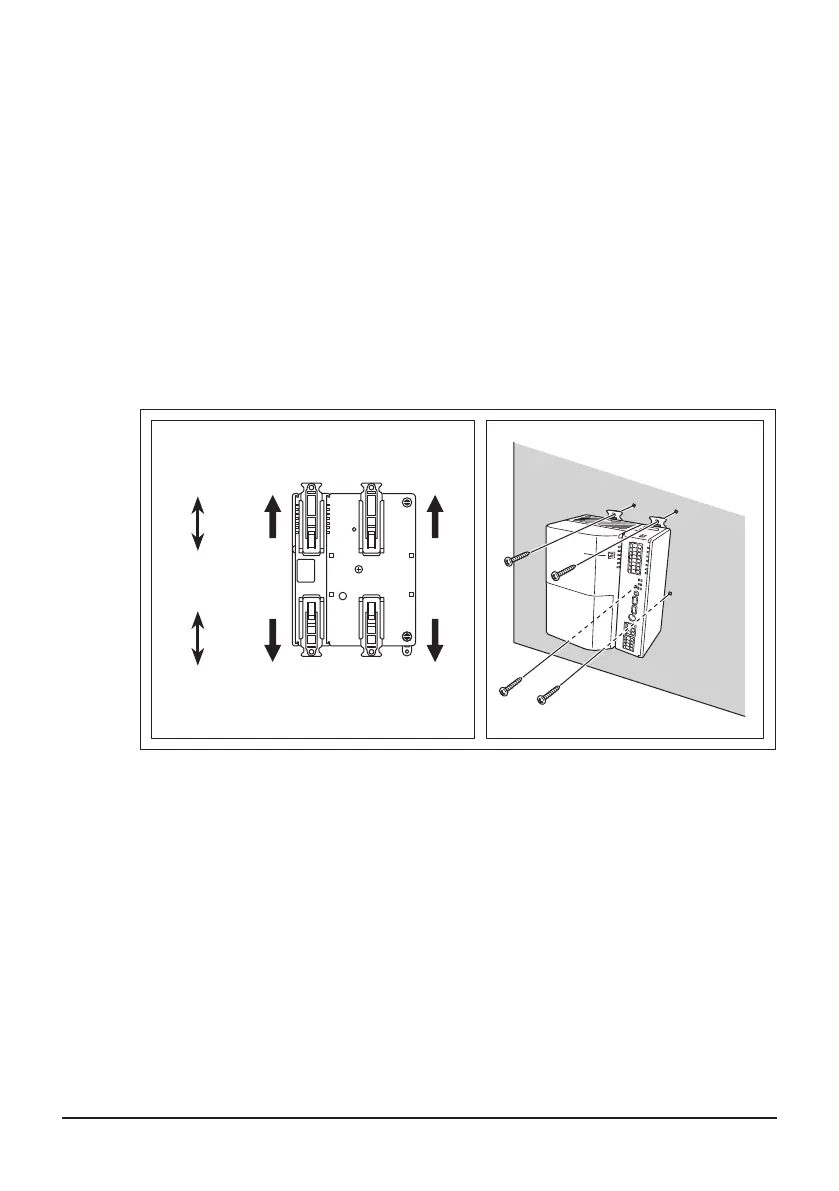

<Steps for mounting to control enclosure>
(1)
(1) (1)
(1)
“open”
“closed”
“closed”
“open”
