36 Installation Manual 3P581074-2D
DGE601A52
English
Steps for connection

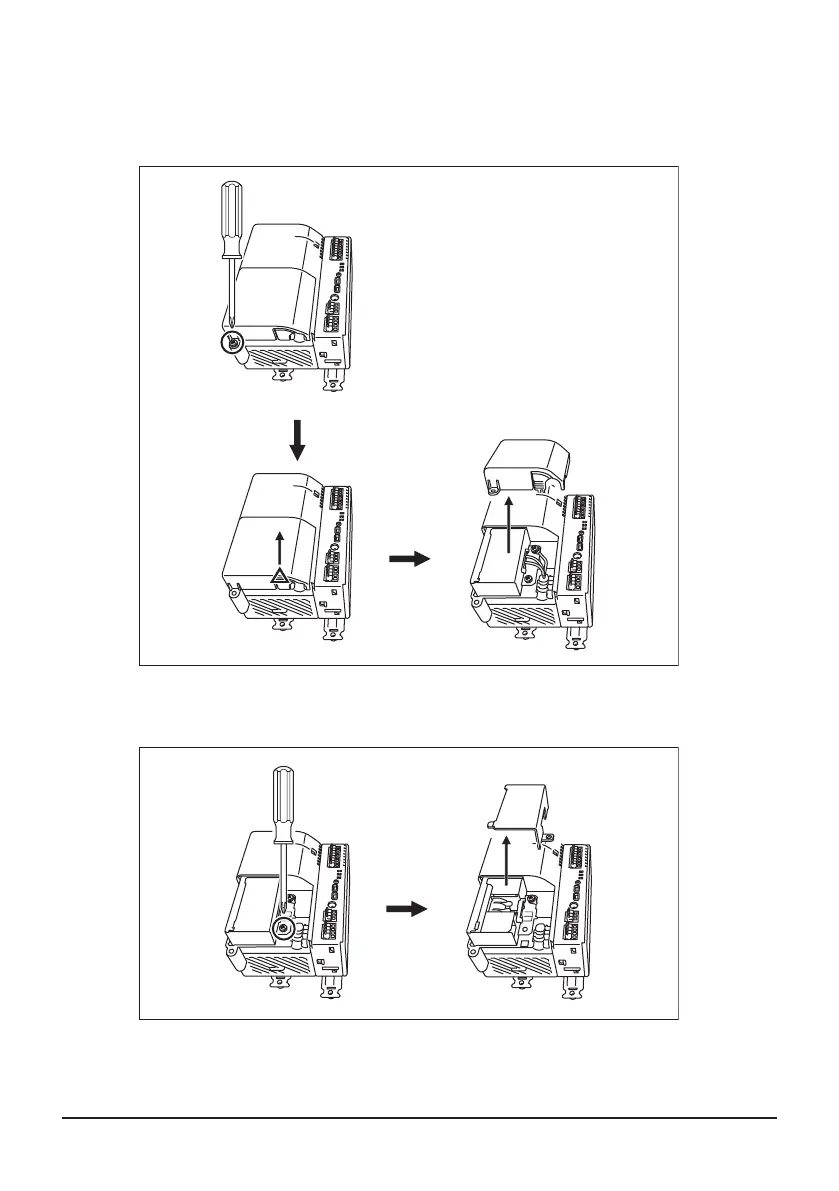

(1) Remove the screw from the power supply cover, push the area marked with a tri-
angle in the direction of the arrow, and remove the cover.
<Removing the power supply cable cover>
(2) Remove the screw from the terminal block cover, and remove the cover.
<Removing the power supply terminal block cover>
01_EN_3P581074-2D.indd 36 2021/06/25 14:12:12
