Installation Manual 3P581074-2D
DGE601A52
37English
WARNING
HAZARDOUS VOLTAGE
Can cause electric shock.
Be sure to turn the power supply off before removing the power supply
terminal block cover.
<Connecting the power supply wire>

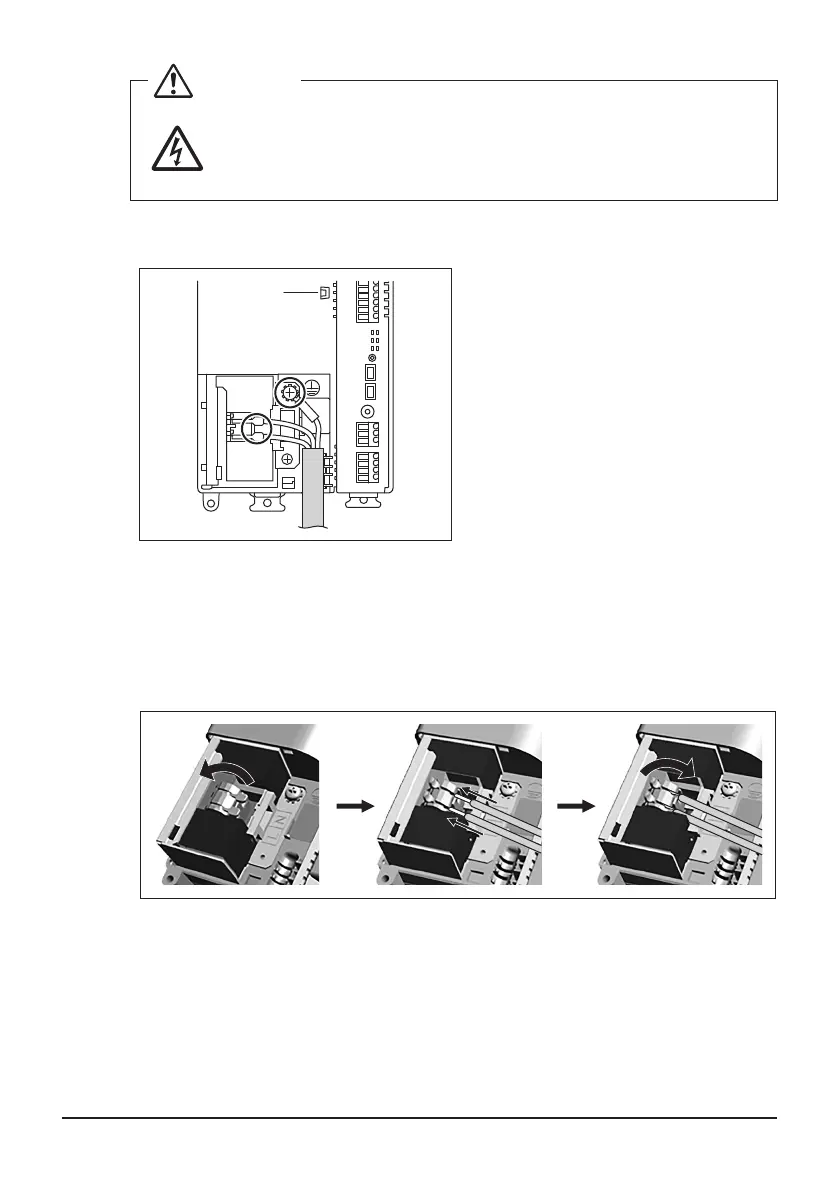

How to connect to the power supply terminal block
Lift the knob on the power supply terminal block to set it to the open position, then insert
the L wire and N wire into the terminal block. Continue to push up the knob until you feel
it click. After insertion, push down the knob on the power supply terminal block securely
and completely.
<Power supply terminal block>
