Daikin DPSA - Unit Layout Examples


www.DaikinApplied.com 25 CAT 258 • REBEL APPLIED ROOFTOP

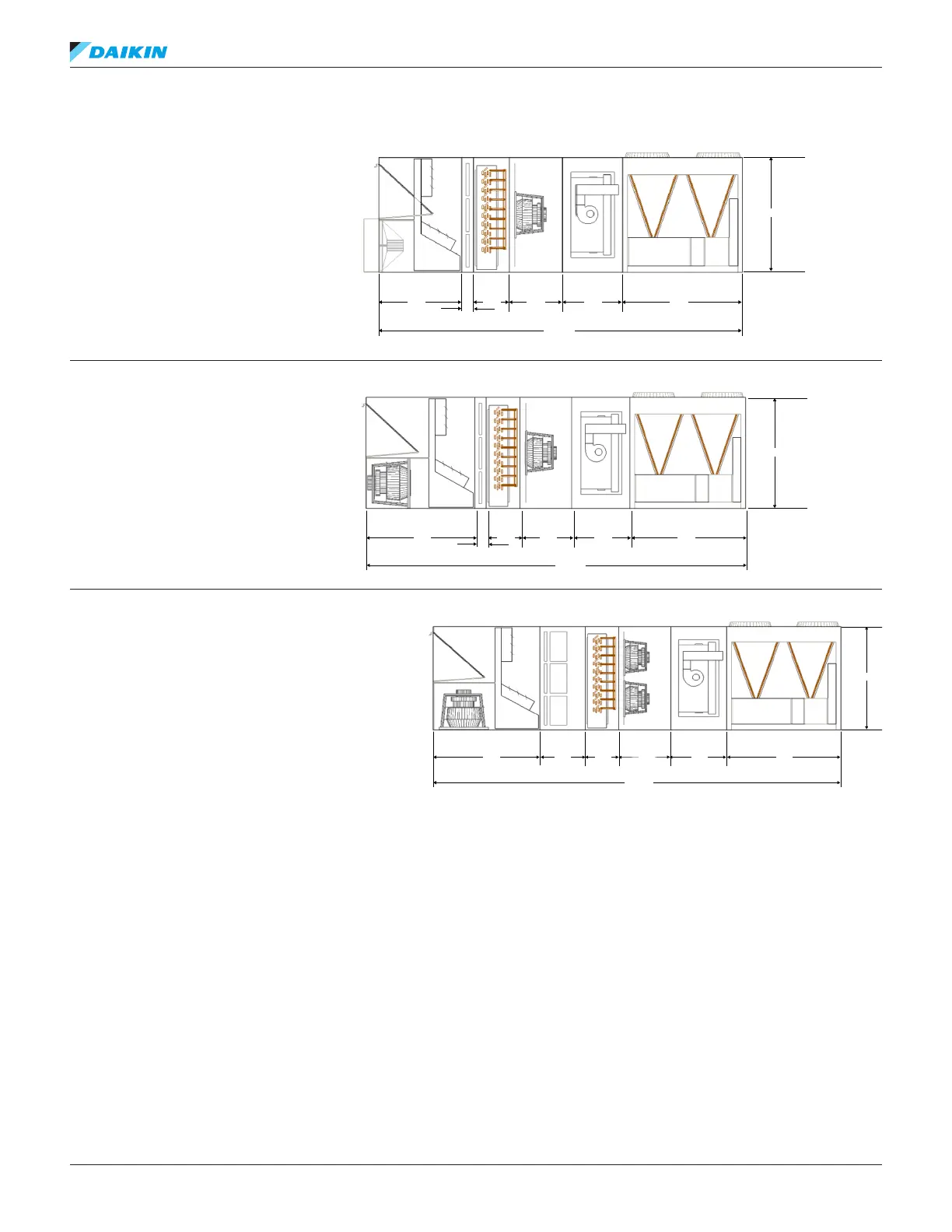

Figure 23: Examples of Rebel Applied Unit Layouts

50 ton
Economizer with propeller exhaust
Gas heat
1 × 2 ECM fan array
2" Merv 8 lters
󰀩
50 ton
Economizer with high static exhaust
Gas heat
1 × 2 ECM fan array
2" Merv 8 lters
󰀩
50 ton
Economizer with return fan
Gas heat
2 × 2 ECM fan array
2" Merv 8 pre-lters and 12" MERV 14 cartridge lters
Outside Return Air
Filter
DX Coil
Supply Fan
Gas Heat
Condensing
81.0"40.0"36.0"24.0"
8.0"
56.0"
245.0" [0]
77.6"
Outside Return Air
Filter
DX Coil
Supply Fan
Gas Heat
Condensing
81.0"40.0"36.0"24.0"
8.0"
76.0"
265.0" [0]
77.6"
Outside Return Air Filter DX Coil Supply Fan Gas Heat Condensing
81.0"40.0"36.0"24.0"32.0"76.0"
289.0" [0]
77.6"
