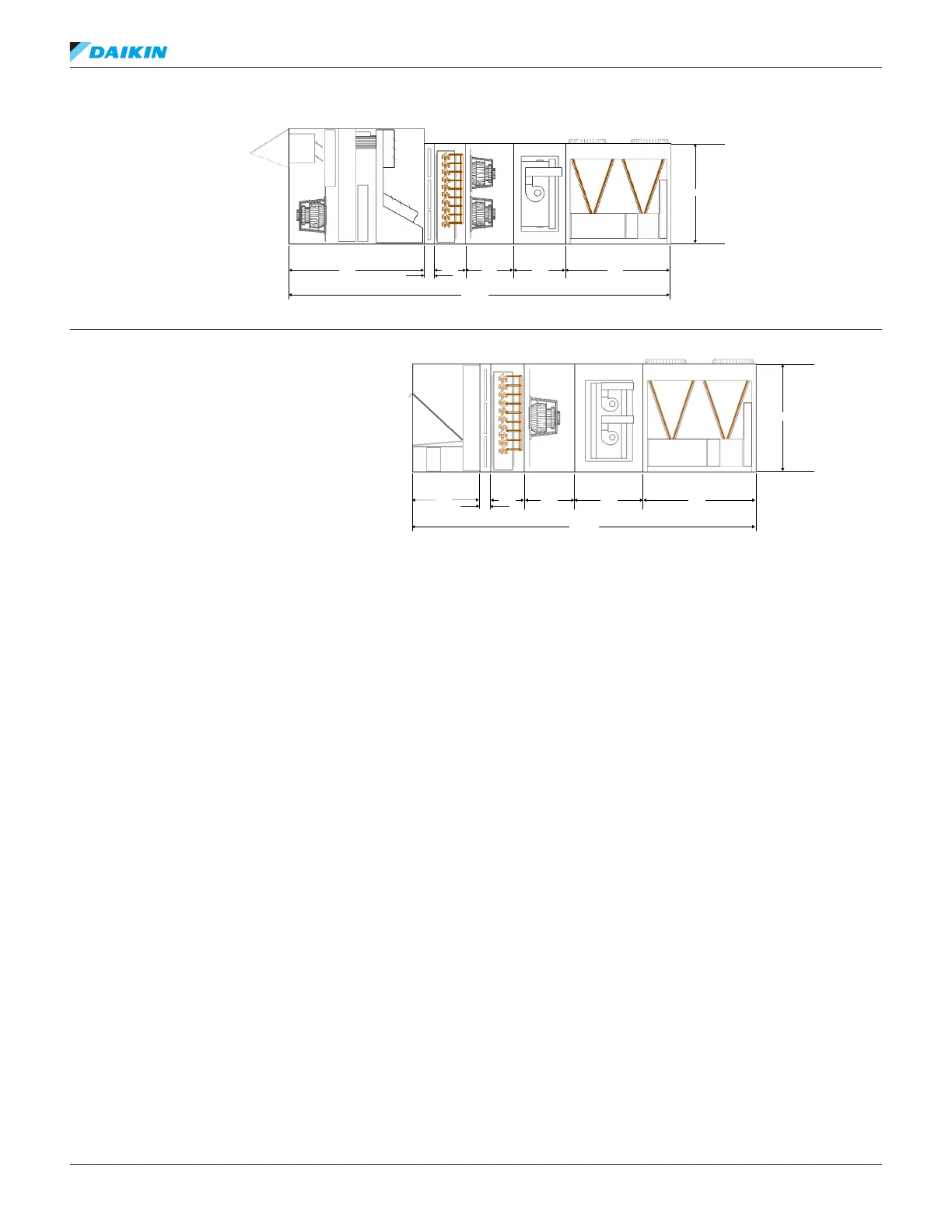

Daikin DPSA - Education and 100% OA Layouts

CAT 258 • REBEL APPLIED ROOFTOP 26 www.DaikinApplied.com


50 ton
Energy recovery wheel
Gas heat
2 × 2 ECM fan array
2" Merv 8 lters

50 ton unit
100% Outside air damper
100 degree rise furnace
1 × 2 ECM fan array
2" MERV 8 lters
Outside Return Air
Filter
DX Coil Supply Fan Gas Heat Condensing
81.0"40.0"36.0"24.0"
8.0"
104.0"
293.0" [0]
77.6"
Outside Return Air
Filter
DX Coil
Supply Fan
Gas Heat
Condensing
81.0"48.0"36.0"24.0"
8.0"
48.0"
245.0" [0]
77.6"
