4 Unit installation
Installation manual
11
EBSH/X(B)11+16P50D
Daikin Altherma 3 R ECH₂O
4P759878-1 – 2024.01

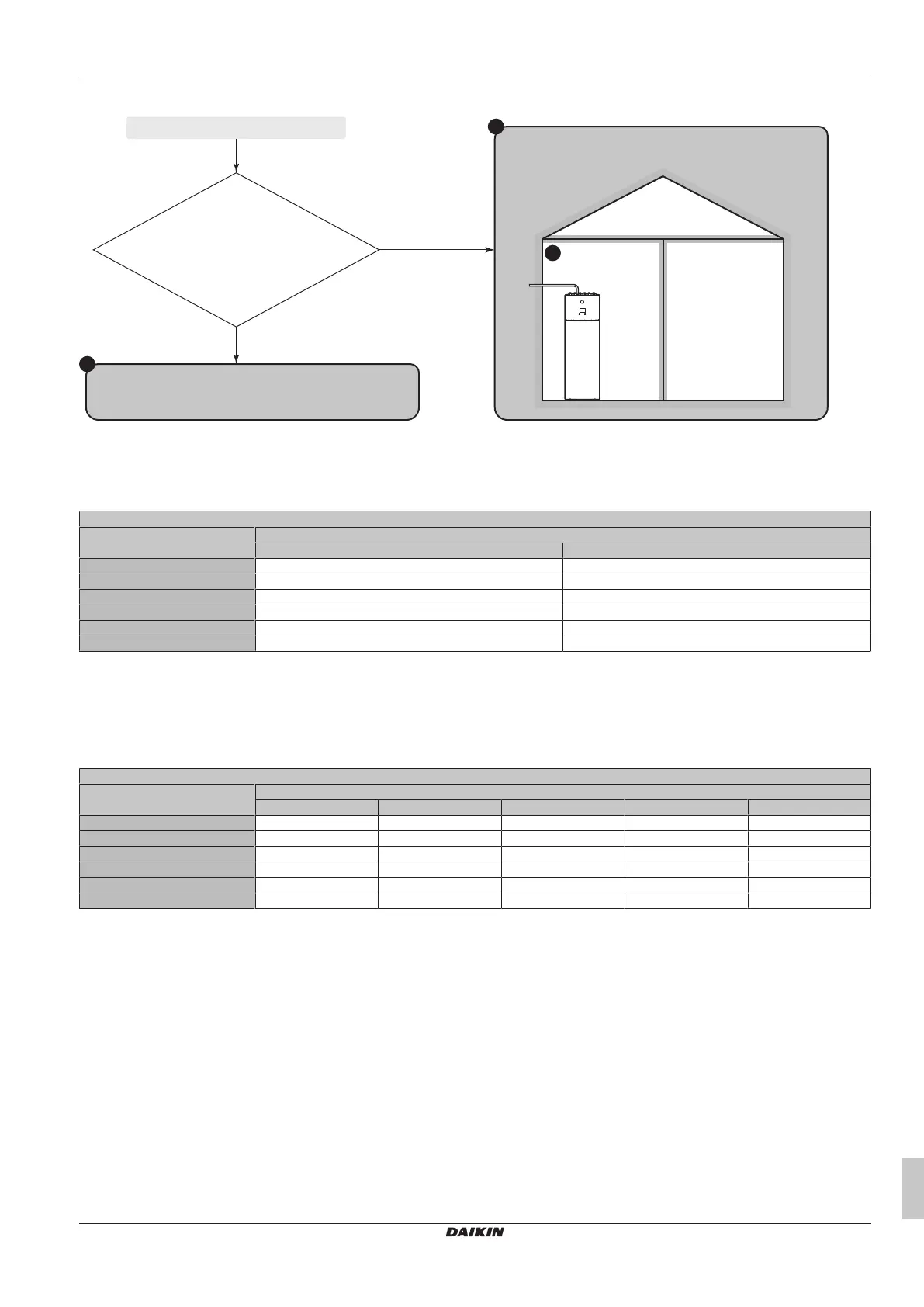

PATTERN 3
No
Yes
START PATTERN 3
A
You can install the unit in room A if you lead the chimney outside
the building.
3a
You CANNOT install the unit in the room. Place the unit in a larger
room.
3b
See table 3:
Is it possible to lead a chimney
outside the building respecting the maximum
chimney length?
Tables for PATTERN 1, 2 and 3
Table 1: Minimum floor area
For intermediate refrigerant charges, use the row with the higher value. Example: If the refrigerant charge is 4.3kg, use the row of 4.5kg.
Minimum floor area (m²)
Charge (kg) Release height without chimney (m)
1.89m (Unit=300l) 1.90m (Unit=500l)
3.8kg 12.37m
2
12.18m
2
4kg 13.71m
2
13.49m
2
4.5kg 17.35m
2
17.08m
2
5kg 21.42m
2
21.08m
2
5.5kg 25.92m
2
25.51m
2
5.8kg 28.82m
2
28.37m
2
Table 2: Minimum release height
Take the following into account:
• For intermediate floor areas, use the column with the lower value. Example: If the floor area is 22.50m², use the column of 20.00m².
• For intermediate refrigerant charges, use the row with the higher value. Example: If the refrigerant charge is 4.3kg, use the row of 4.5kg.
• (*): The release height of the unit without chimney (for 300 l units: 1.89 m; for 500 l units: 1.90 m) is already higher than the minimum
required release height. => OK (no chimney needed).
Minimum release height (m)
Charge (kg) Floor area (m²)
5.00m
2
10.00m
2
15.00m
2
20.00m
2
25.00m
2
3.8kg 3.30m 2.10m (*) (*) (*)
4kg 3.47m 2.21m (*) (*) (*)
4.5kg 3.91m 2.49m 2.03m (*) (*)
5kg 4.34m 2.77m 2.26m 1.96m (*)
5.5kg 4.78m 3.04m 2.49m 2.15m 1.93m
5.8kg 5.04m 3.21m 2.62m 2.27m 2.03m
