Wired Remote Controller ESIE15-13B
10 Remote Controller
1. Wired Remote Controller
1.1 Applicable Models
1.2 Names and Functions

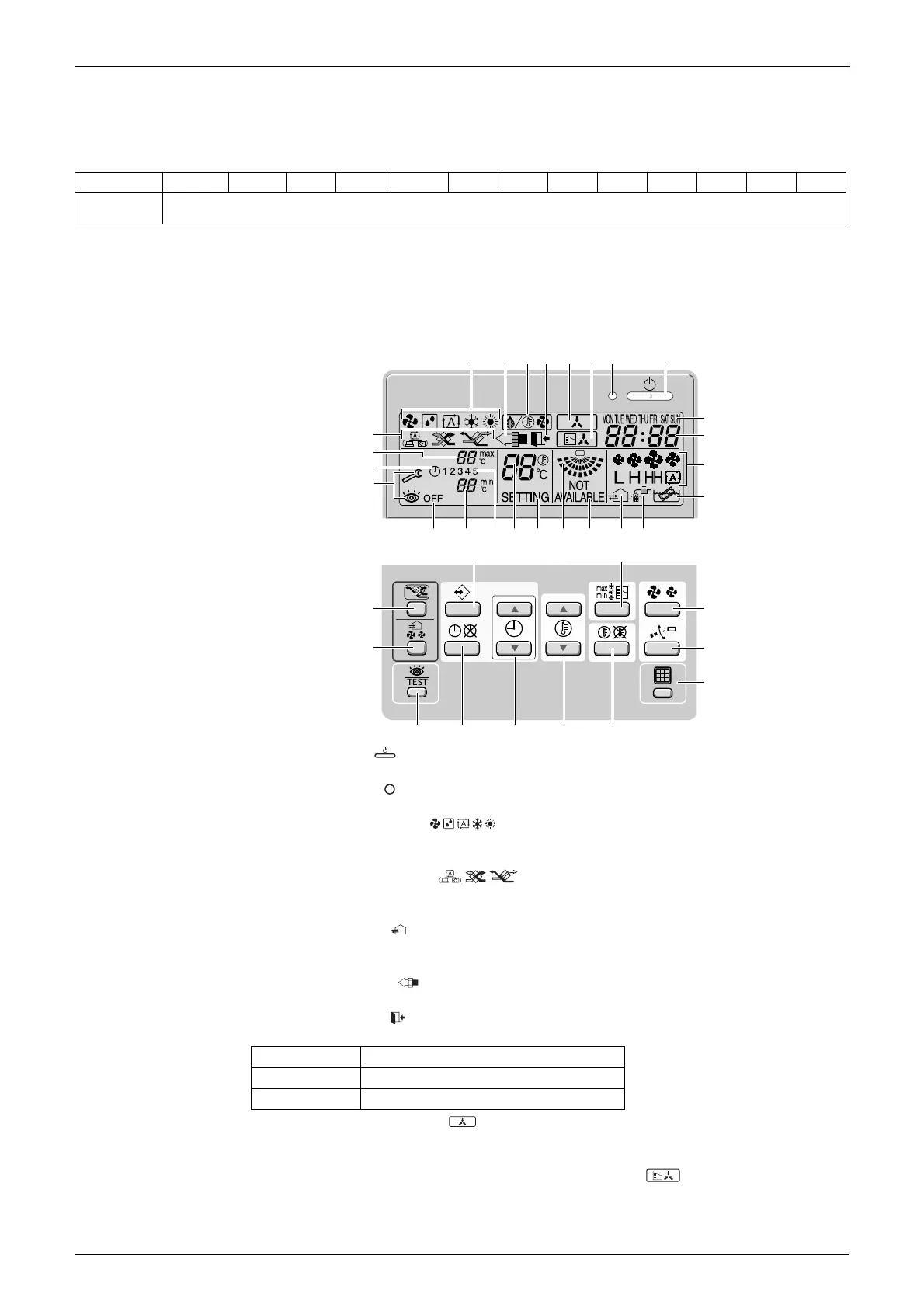

1.2.1 BRC1D528
1. ON/OFF BUTTON
Press the ON/OFF button to start or stop the system.
2. OPERATION LAMP
The operation lamp lights up during operation or blinks if an error occurs.
3. OPERATION MODE ICON
These icons indicate the current operation mode (FAN, DRY, AUTOMATIC, COOLING,
HEATING).
4. VENTILATION MODE ICON
These icons indicate the current ventilation mode (HRV only) (AUTOMATIC, HEAT
EXCHANGE, BYPASS).
5. VENTILATION ICON
The ventilation icon appears when the ventilation is adjusted with the ventilation amount
button (HRV only). Simultaneously, the ventilation amount is indicated by the fan speed icon.
6. AIR CLEANING ICON
This icon indicates that the air cleaning unit (option) is operational.
7. LEAVE HOME ICON
The leave home icon shows the status of the leave home function.
8. EXTERNAL CONTROL ICON
This icon indicates that another controller with higher priority is controlling or disabling your
installation.
9. CHANGE-OVER UNDER CENTRALISED CONTROL ICON
This icon indicates that the change-over of the installation is under centralised control
assigned to another indoor unit or optional cool/heat selector connected to the outdoor unit
(= Main remote controller).
Model Series FCQHG-F FCQG-F FFQ-C FDXS-F FDBQ-B FBQ-D FDQ-C FDQ-B FAQ-C FHQ-C FUQ-C FNQ-A FVQ-C
Remote
Controller
BRC1D52/BRC1E52A/BRC1E52B/BRC1E53
ON Leave home is enabled
FLASHING Leave home is active
OFF Leave home is disabled
1293
25
22
11
10
37
35
27
26
12
14
17
34
24520 211816 13 15 19
323130
29
28
4
36
33
823 76
