Daikin FAQ71CVEB Service Manual

Field Setting from Outdoor Unit PCB ESIE15-13B
82 Field Setting
3.2 Field Setting for Outdoor Unit
3.2.1 Setting by BS Buttons
With "Setting mode 1," "Setting mode 2" and "Monitor mode," various settings and data can be
checked.
(1) Setting mode 1
The initial status (normal operation) is "Setting mode 1." This mode indicates operating status -
"TEST (test operation)," "HWL (error)," "L.N.O.P (night time quiet operation)" or "DEMAND
(demand operation)."
(2) Setting mode 2
Each operating status can be modified.
(3) Monitor mode
This mode indicates "oil return operation," "outdoor unit class," "contents of retry," "contents of
error," "causes of stepping-down operation," etc.
3.2.2 Setting Mode 1
In this mode, the following conditions can be checked:
• Current operating condition (normal/test operation/line inspection and normal/error)
• Night time quiet operation condition (normal/low noise level 1, 2, and)
• Demand operating condition (normal/30% demand/40% demand/50% demand)
These conditions above can be checked by performing the following steps:
Setting mode 1
Monitor mode
H1P
BlinkingOff
H1P
Setting mode 2
On
H1P
Press the BS1 (MODE button)
for 5 seconds or more.
Push the BS1(MODE button) one time.
Initial
(Normal)
Press the BS1(MODE button)
one time.

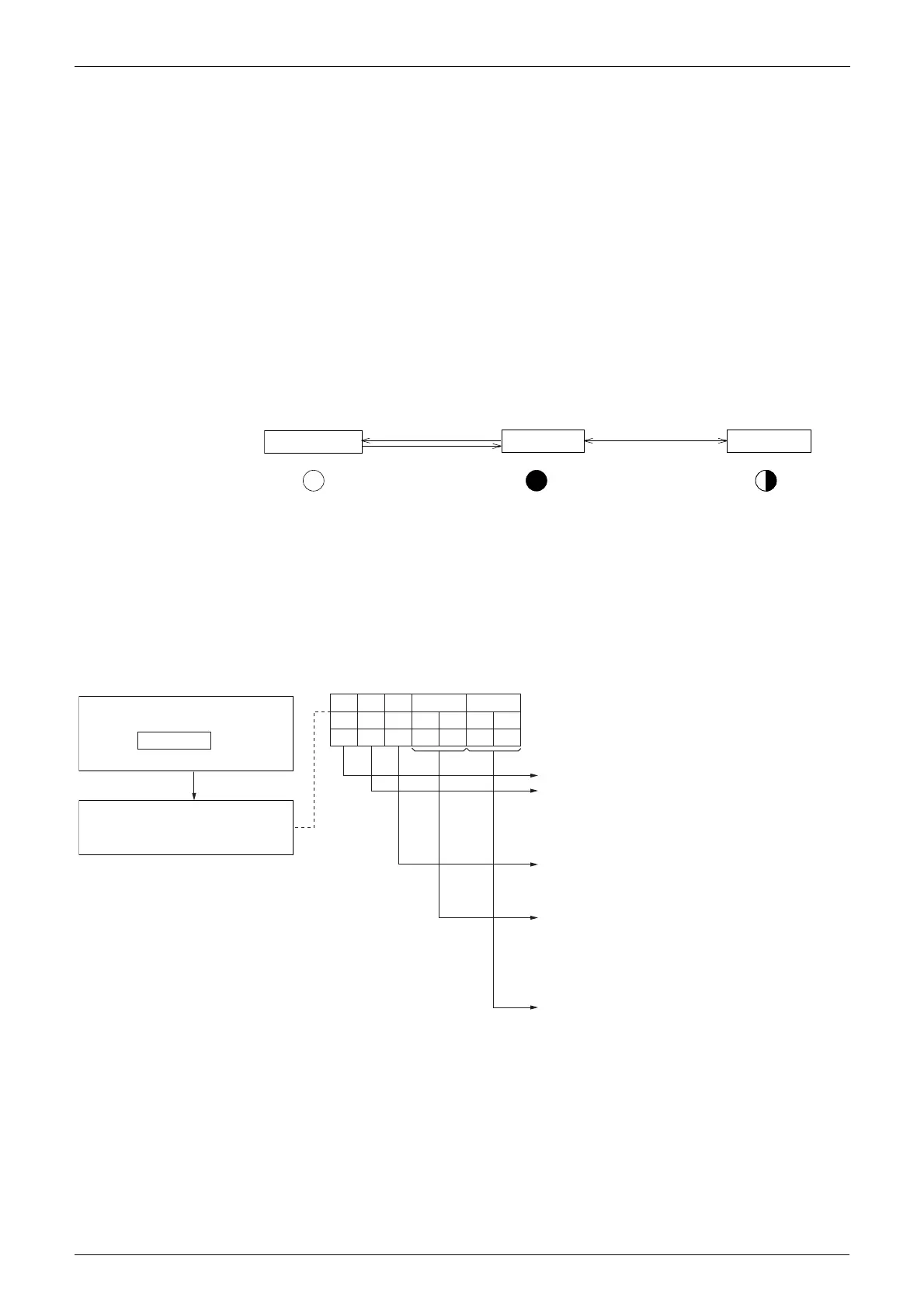

Using the MODE button, the modes can be changed as follows.
k
: ON
l
: OFF
h
: BLINK
During "Setting mode 1," the lamp is always OFF.
Test operation display
h
In normal operation
k
In test operation
l
In line inspection operation
Error display
h
Normal
k
Error
Night time quiet operation display
hh
Normal operation
hk
Low noise level 1
kh
Low noise level 2
kk
Low noise level 3
Demand level display
hh
30% Normal operation
hk
40% Demand
kh
50% Demand
kk
Demand
MODE
H1P H2P H3P H4P H5P H6P H7P
TEST HWL L.N.O.P DEMAND
hhhhhhh
The system is normally "Setting mode
1".
Press the MODE (BS1) button once
to set the system to "Setting mode 1".
Check the system for each condition
through LED displays. (Refer to
information in table on the right.)
