Service Mode ESIE15-13B
20 Remote Controller

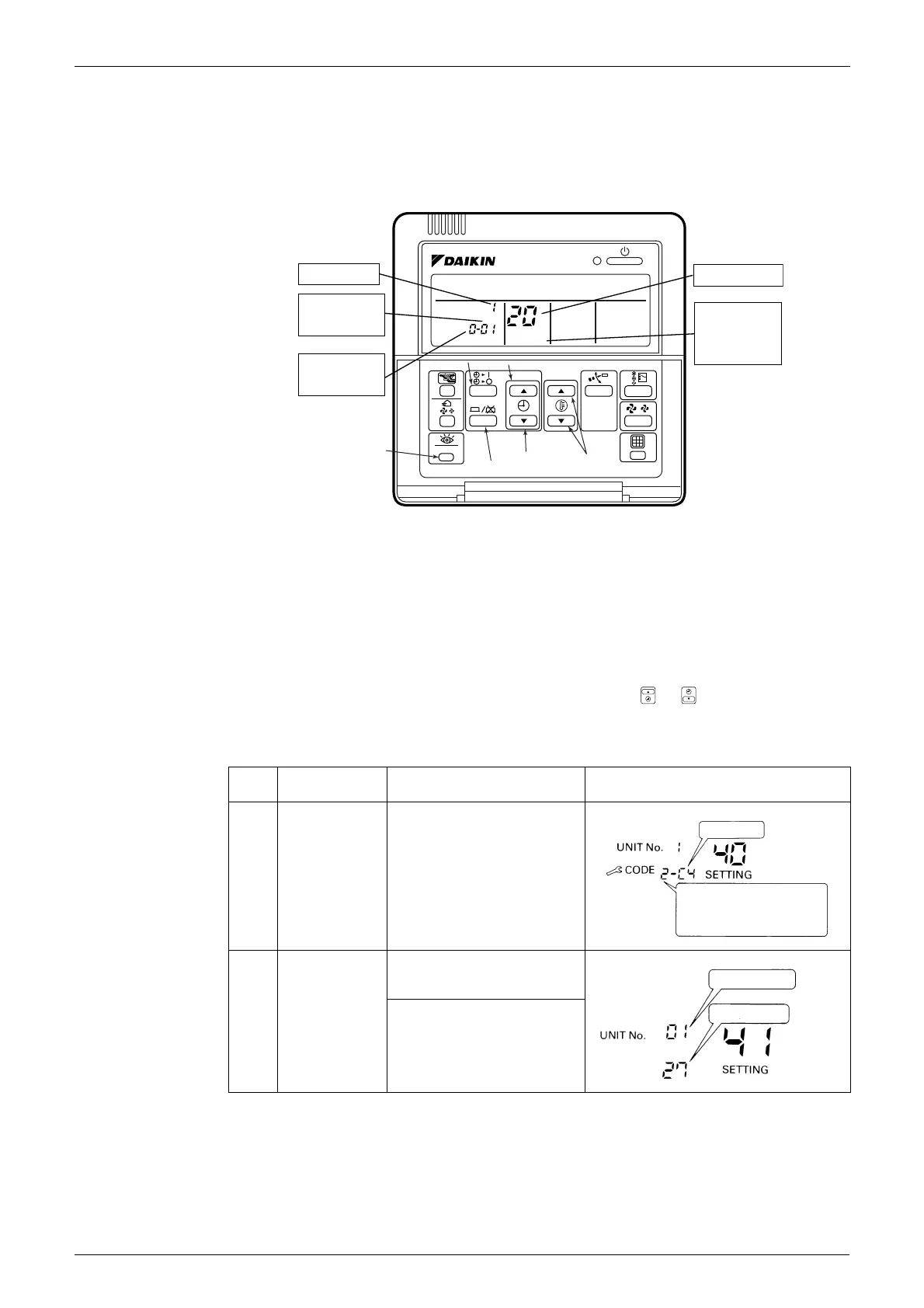

3. Service Mode
3.1 BRC1D528
3.1.1 Display Service Data
1. Enter the field setting mode.
Press the inspection / test operation button for 4 seconds or more.
2. Enter the service mode.
After having entered the field setting mode, press the inspection / test operation button for 4
seconds or more.
3. Select the mode No.
Set the desired mode No. with the up/down temperature setting button.
4. Select the unit No.
Select the indoor unit No. set with the time mode START/STOP button.
5. Select the desired error history No. or sensor data No. with or button.
6. Each data displays (Refer to the table below display)
7. Return to the normal operation mode.
Press the inspection / test operation button once.
Mode
No.
Function Content and Operation Method Example of Remote Controller Display
40
Error History You can change the history
with the programming time up-
down button.
41
Sensor Data
Display
Select the display thermistor
with the programming time up-
down button
Display thermistor
00: Remote controller
thermistor
01: Suction air thermistor
02: Heat exchanger thermistor
TEST
SETTING
Unit NO.
Unit No.
Mode No.
6
3
4
5
3
1, 2, 7
3
4
Second
Code No.
First
Code No.
Field
Setting
Mode
Past error code
Error history
∗ "00" displayed for 4 and subsequent
1: Newest
3: Oldest
~
Thermistor type
Temperature
To Next Page
