Field Setting from Remote Controller ESIE15-13B
76 Field Setting
2.6 I-Demand Function
Purpose Set a limitation towards the power consumption from the system (e.g. budget control, limit
power consumption during peak moments,..).

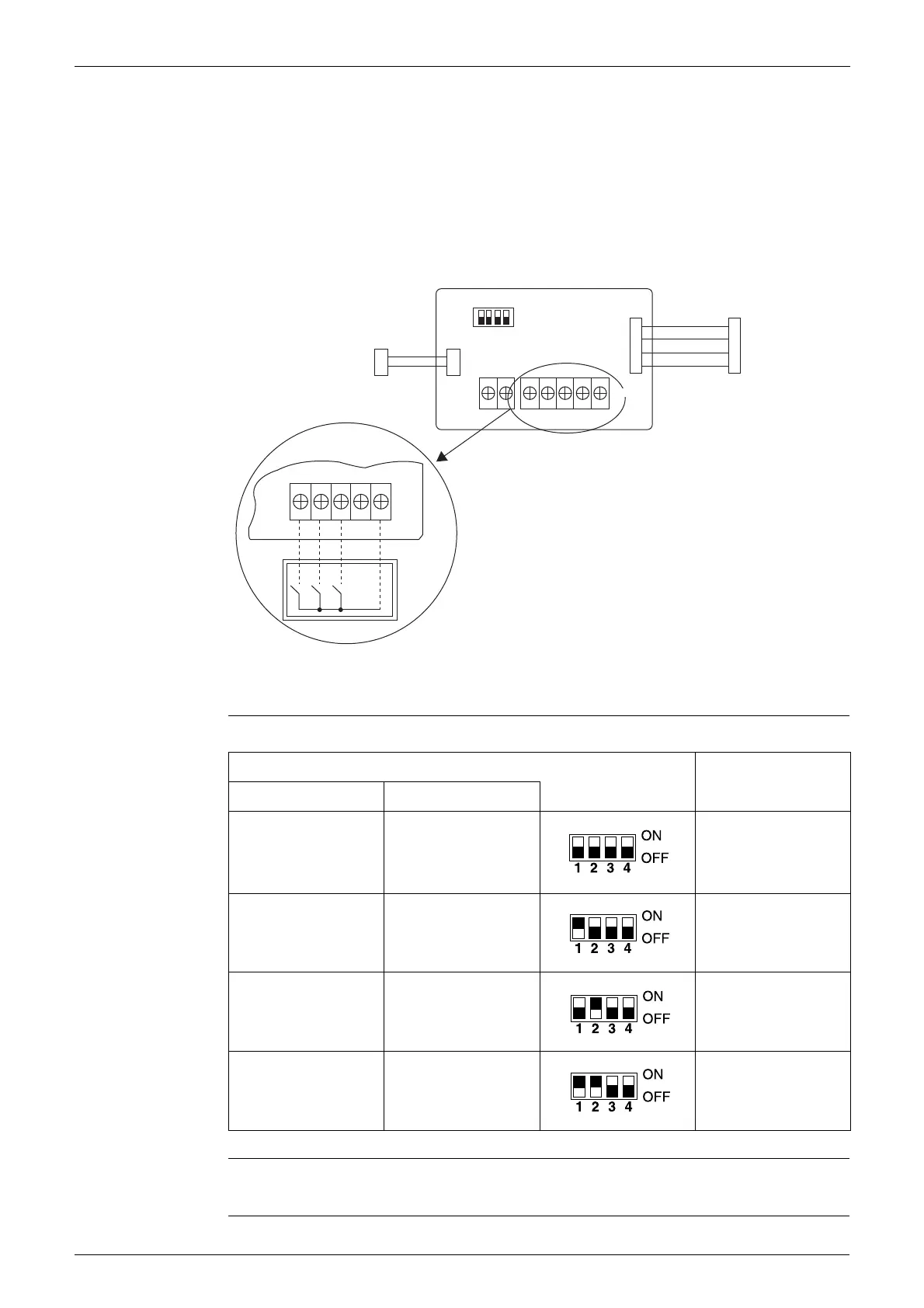

Setting 3 different demand setting can be selected by using terminal X801M:
 Demand 1  Close contact between COM and contact 1
 Demand 2  Close contact between COM and contact 2
 Demand 3  Close contact between COM and contact 3
Demand 1 Power consumption limitation in function of setting on DS1:
Demand 2 Power consumption limitation set to 40%.
Demand 3 Forced thermostat OFF.
ON
OFF
DS1
1234
X81A
X80A
X800M
X801M
X801M
1 LNOP COM 23
1 LNOP
COM
23
Power supply connector
(on outdoor PCB X77A)
Transmission connector
(on outdoor PCB X6A)
Output on X801M =
12VDC, 12mA
Maximum wire length =
100 meter
DS1 Setting
Maximum Power
Consumption
12
OFF OFF 60%
ON OFF 70%
OFF ON 80%
ON ON 100%
