Daikin FAQ71CVEB Service Manual

Field Setting from Remote Controller ESIE15-13B
62 Field Setting

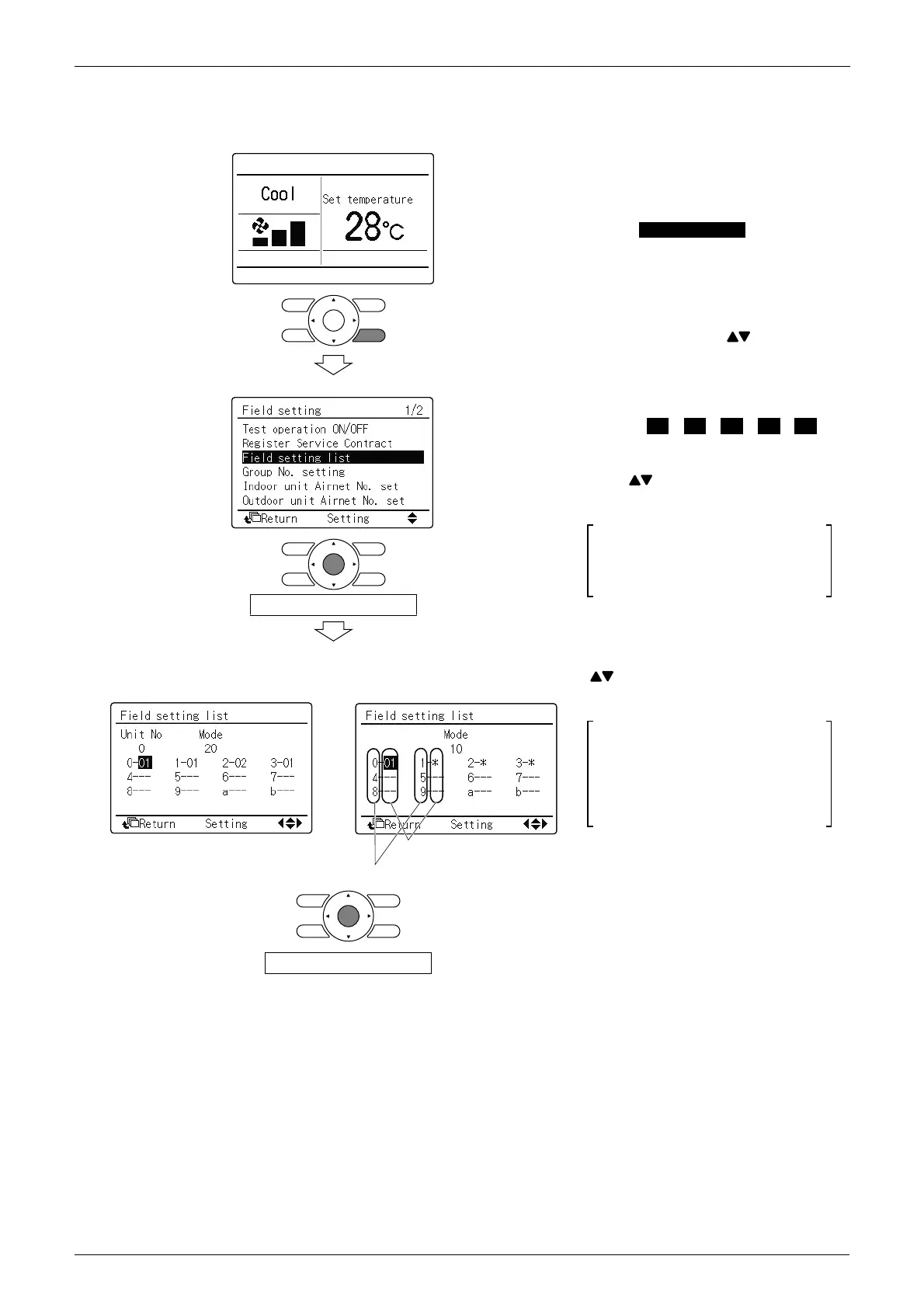

2.1.2 BRC1E52
<Basic screen>
<Field setting menu screen>
Press Menu/Enter button.
<Field setting screen>
Press Menu/Enter button.
First Code (SW) No.
Second Code No.
(1)
(2)
(3)
(4)
(5)
(3)
(5)
1
Press and hold Cancel button for 4
seconds or more.
Field setting menu is displayed.
2 Select Field setting list in the field
setting menu, and press Menu/Enter
button.
Field setting list screen is displayed.
3 Highlight the mode, and select desired
“Mode No.” by using (Up/Down)
button.
4 In the case of setting per indoor unit
during group control (When Mode No.
such as 20 , 21 , 22 , 23 , 25 are
selected), highlight the unit No. and
select “Indoor unit No.” to be set by
using (Up/Down) button. (In the
case of group total setting, this
operation is not needed.)
In the case of individual setting per
indoor unit, current settings are
displayed. And, Second Code No.
“ - ” means no function.
5 Highlight Second Code No. of the First
Code No. to be changed, and select
desired “Second Code No.” by using
(Up/Down) button. Multiple
identical mode number settings are
available.
In the case of group total setting, all
of Second Code No. which may be
set are displayed as “ ∗ ”.
“ ∗ ” is changed to Second Code
No. to be set. And, Second Code
No. “ - ” means no function.
In the case of individual
setting per indoor unit
In the case of group total
setting
