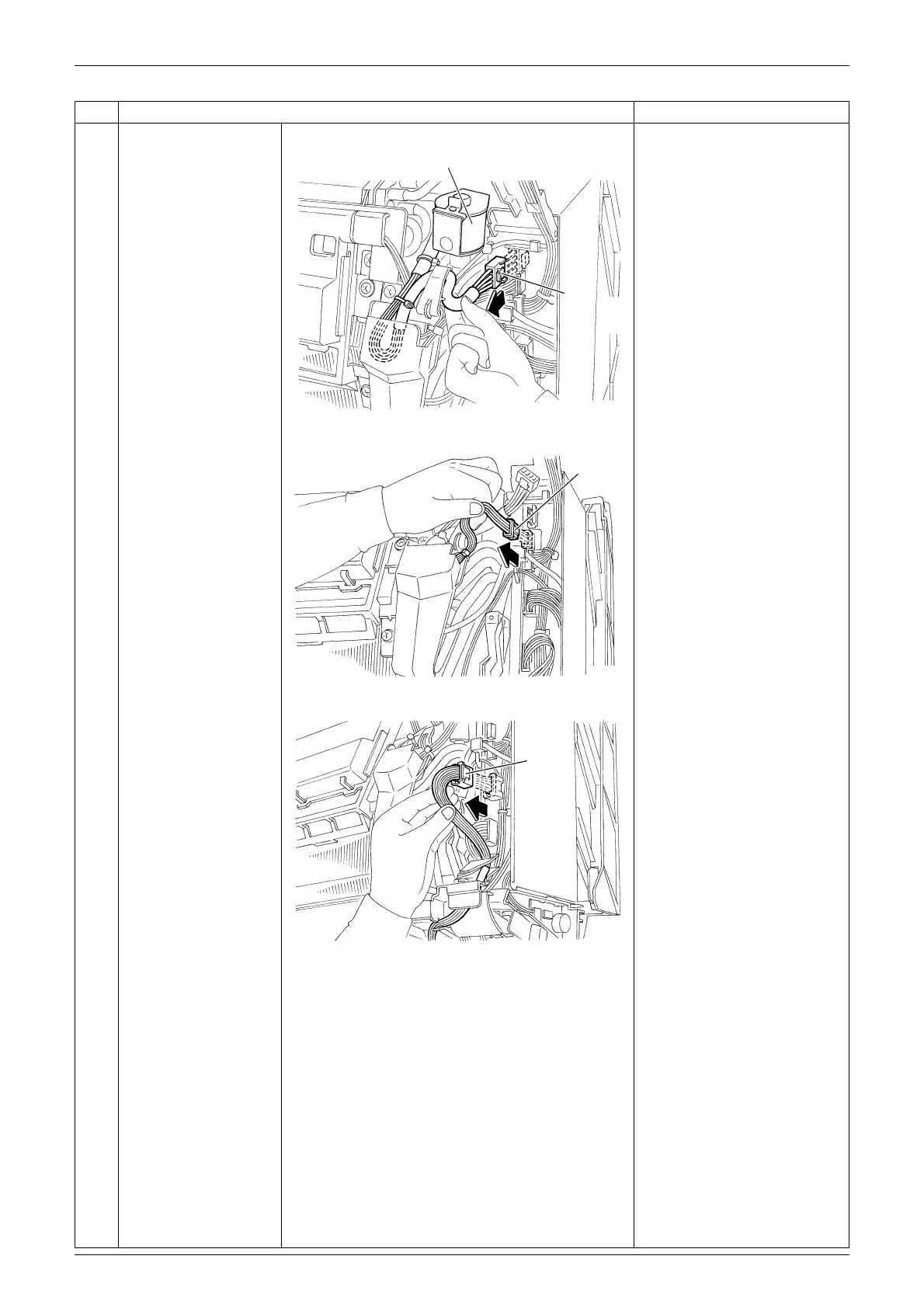

Removal of Electrical Box Si04-756
20 Removal Procedure
5
Disconnect the
connector for the
dehumidifying solenoid
valve coils [S43].
6
Disconnect the
connector for the
streamer unit PCB
[S52].
7
Disconnect the
connector for the swing
motors [S41].

The connector [S41] is for
both horizontal blades and
vertical blades.
Step Procedure Points
(R14155)
Dehumidifying solenoid valve coil
[S43]
[S52]
(R5685)
(R5686)
[S41]
