Daikin FTXR50EV1B9 Service Manual

Removal of Fan Rotor / Fan Motor Si04-756
40 Removal Procedure

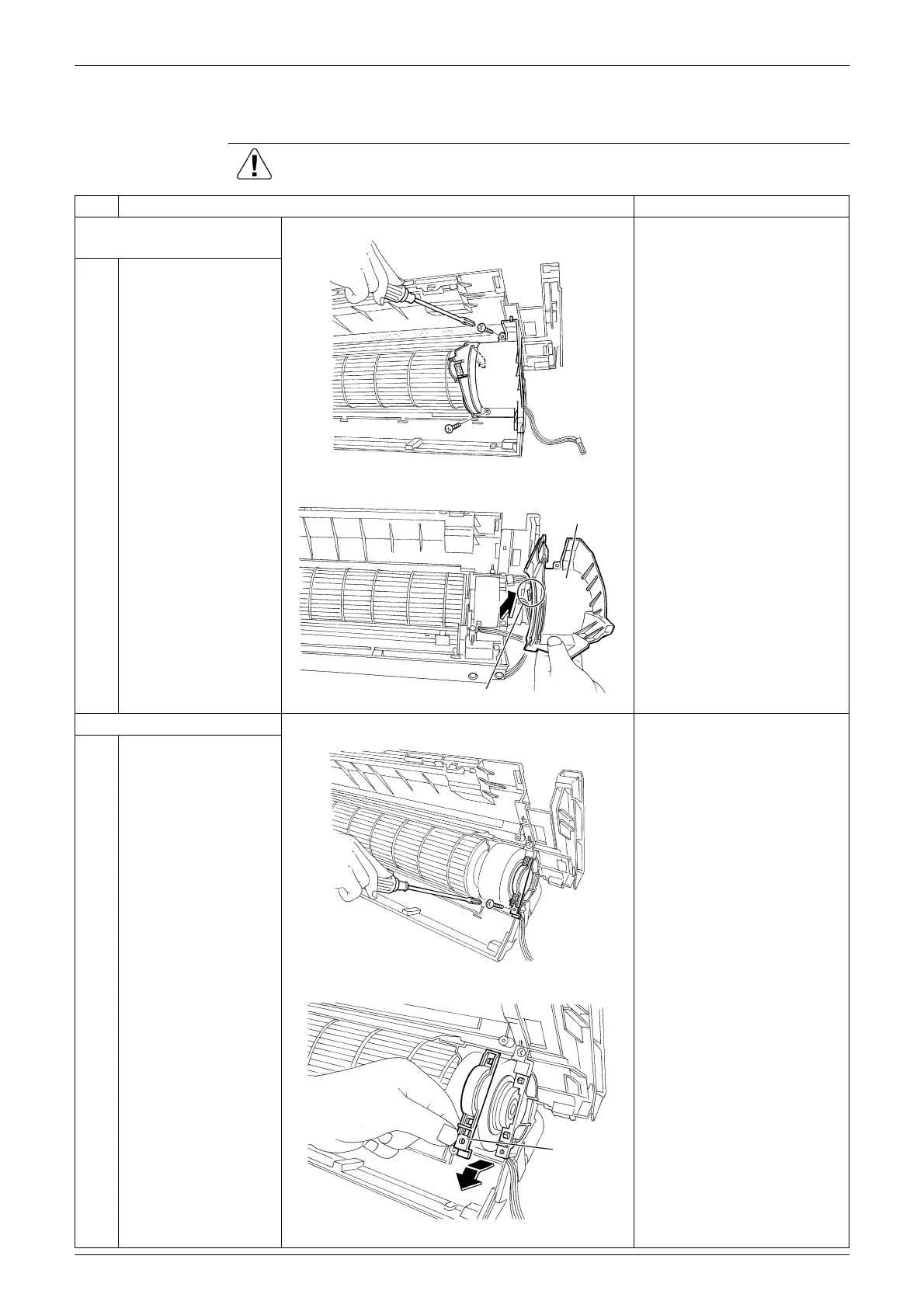

13.Removal of Fan Rotor / Fan Motor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. Remove the right side
panel.
Preparation

Remove the indoor heat
exchanger according to
"Removal of Indoor Heat
Exchanger".
1
Remove the 2 screws
of the right side panel.
2
Unfasten the far side
hook while pulling out
and remove it.
2. Remove the fan rotor.
1
Remove the screw of
the fan motor fixture.
2
Unfasten the 2 hooks
and remove the fan
motor fixture.
(R5752)
(R5753)
Right side
panel
Hook
(R5754)
(R5755)
Fan motor
fixture
