Si04-756 Removal of Drain Hose
Removal Procedure 33
10.Removal of Drain Hose
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points

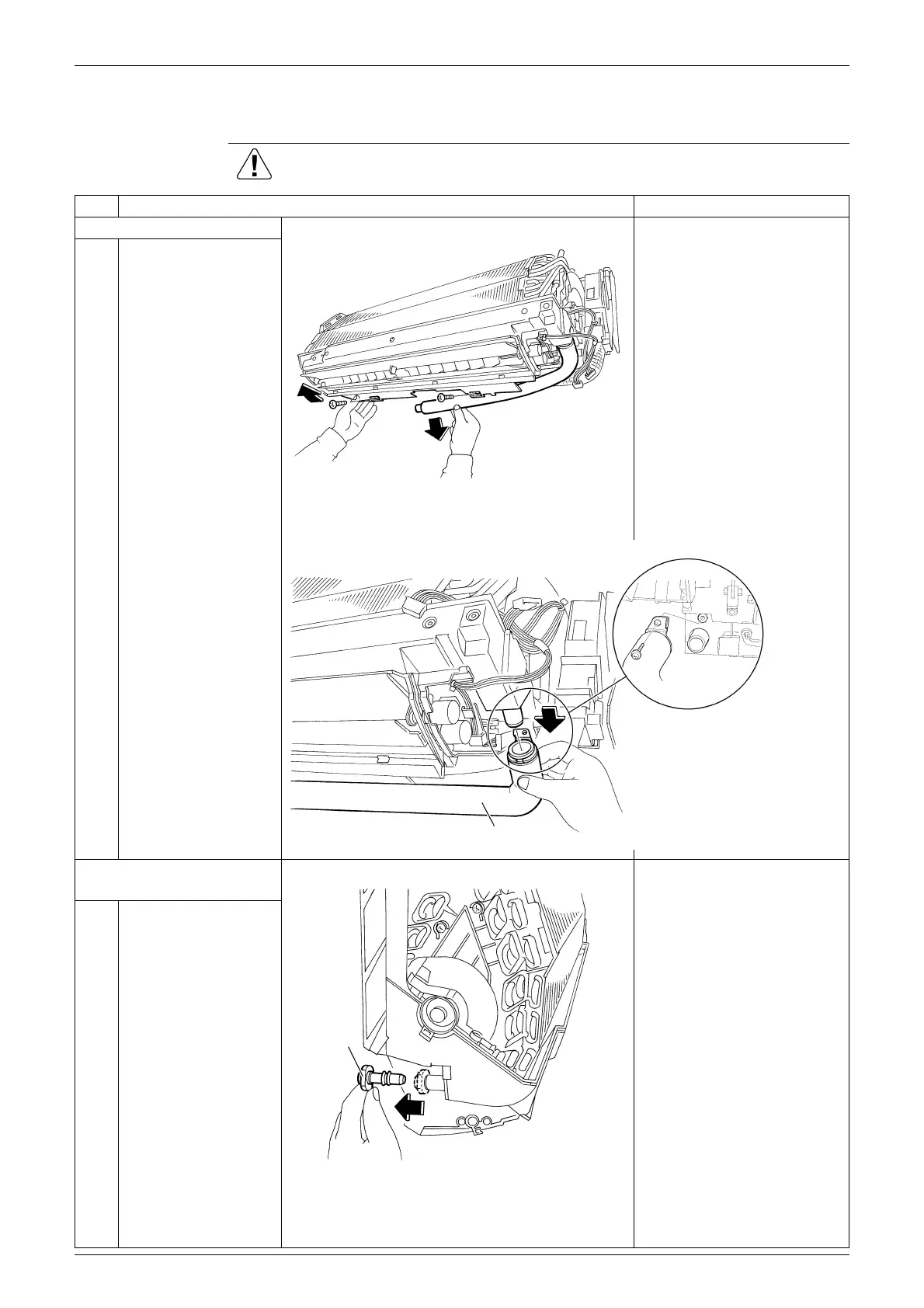

1. Remove the drain hose.
Cover the drain hose with
plastic bags or the like so as
the remaining drain will not
wet the floor.
Part A is fixed by a screw
from the back side. When
replacing the drain hose,
make sure to tighten the
screw as there is no gap
between the heat insulator
and the drain hose.
1
Remove the 2 screws
which fix the indoor unit
to the installation plate.
2
Lift the indoor unit
slightly and pull out the
drain hose.
3
Remove the screw on
the back side and pull
out the drain hose.
2. How to conduct piping to
the opposite side
1
Detach the drain plug.
(R5726)
(R5727)
Part A
Drain hose
Drain
plug
(R5728)
